Installation (Tercel)

To install, reverse removal procedure. Tighten all bolts/nuts to specification. See TORQUE SPECIFICATIONS .

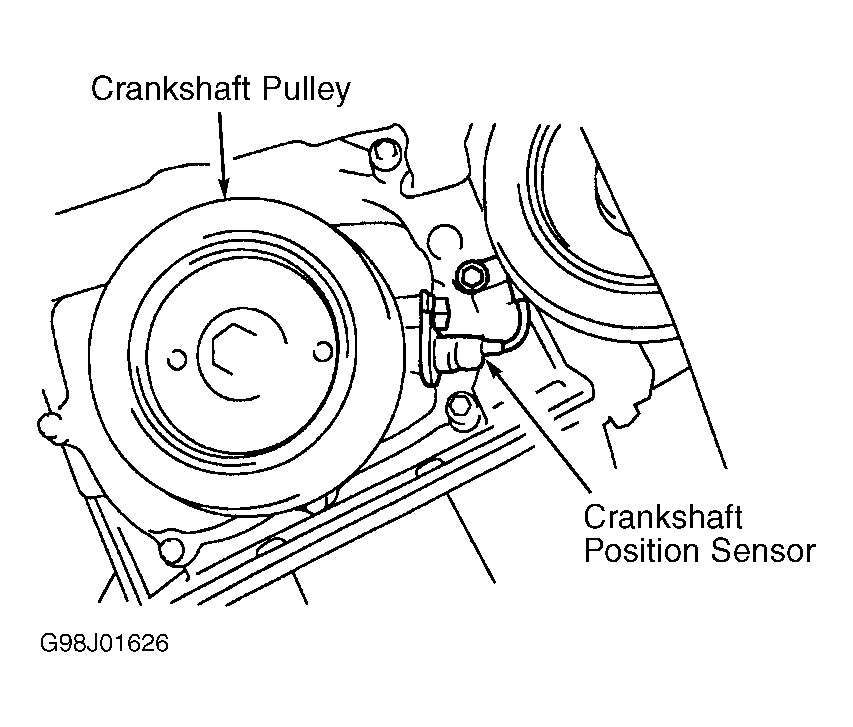

Fig 1: Locating Crankshaft Position Sensor (Camry, Celica & RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

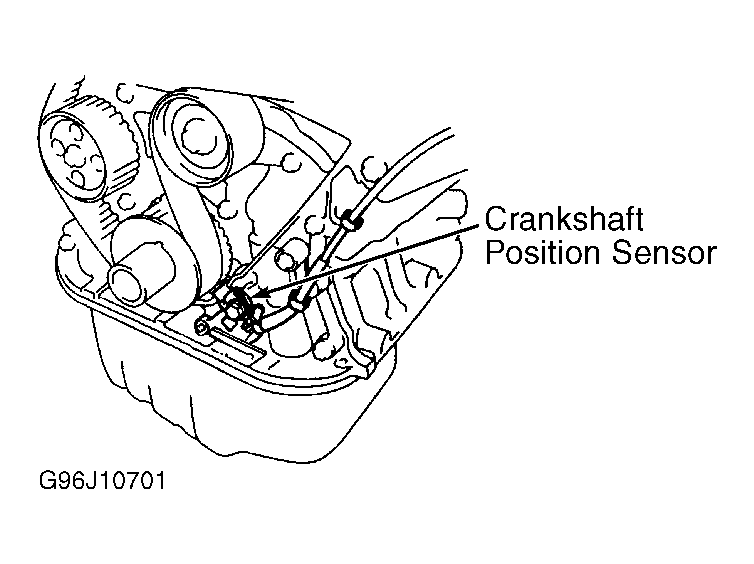

Fig 2: Locating Crankshaft Position Sensor (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

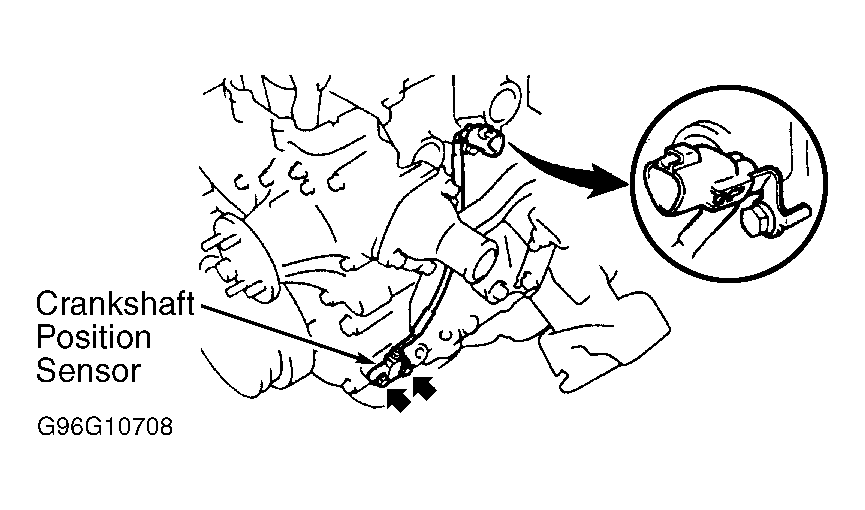

Fig 3: Locating Crankshaft Position Sensor (Tacoma, T100 & 4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating Crankshaft Position Sensor (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
