Engine Control System

Engine control system is a computerized emission, ignition and fuel injection control system. Engine control system lowers exhaust emissions while maintaining good fuel economy and driveability. Engine control system consists of various sensors, switches and control units. See Fig 1-Fig 12 . The Engine Control Module (ECM) controls engine control system based on input signals received from various input devices. ECM contains preprogrammed data to maintain optimum engine performance under all operating conditions.

Fig 1: Locating Engine Control System Components (Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

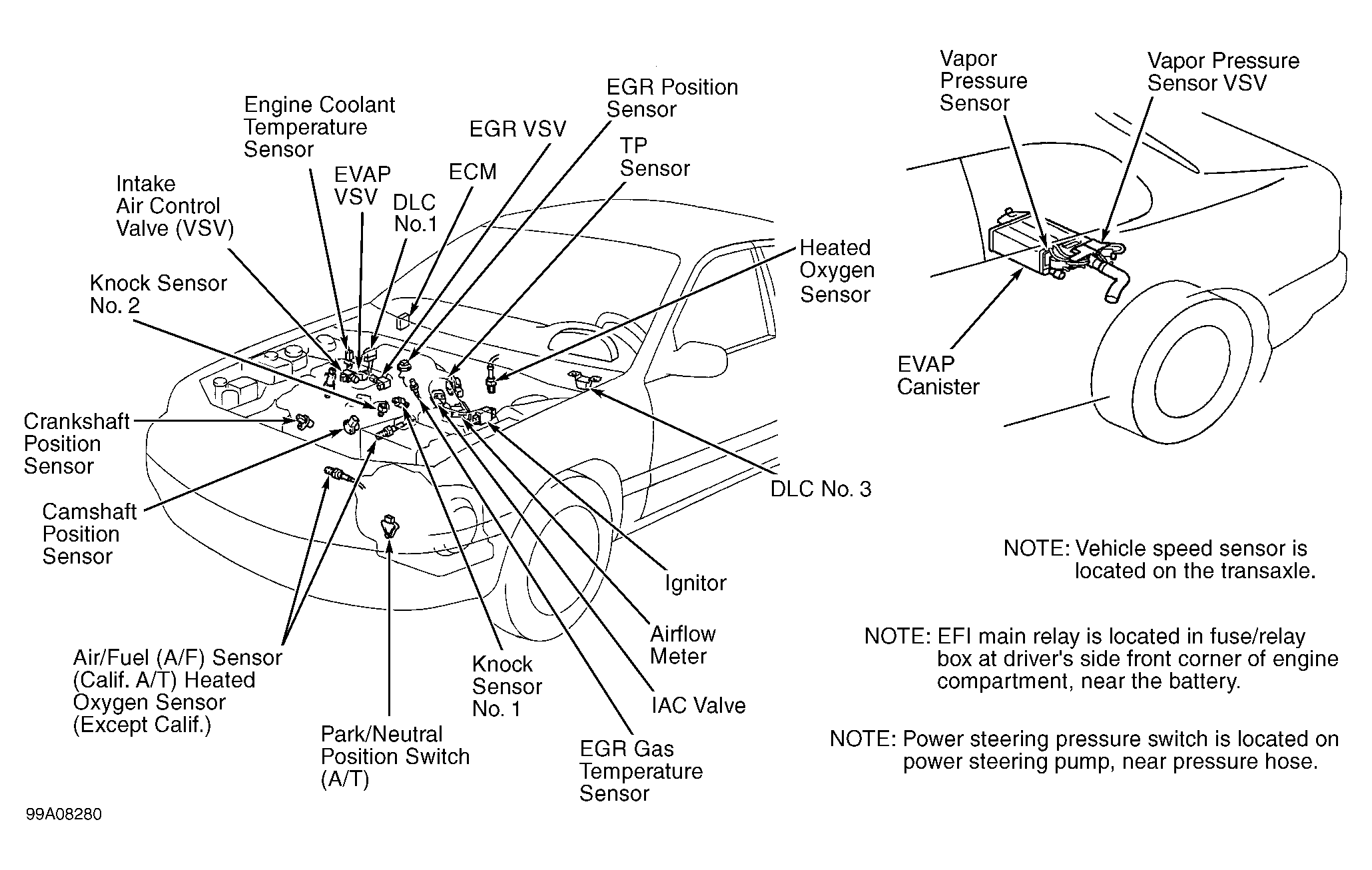

Fig 2: Locating Engine Control System Components (Camry 2.2L 4-Cyl. & Camry Solara 2.2L 4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

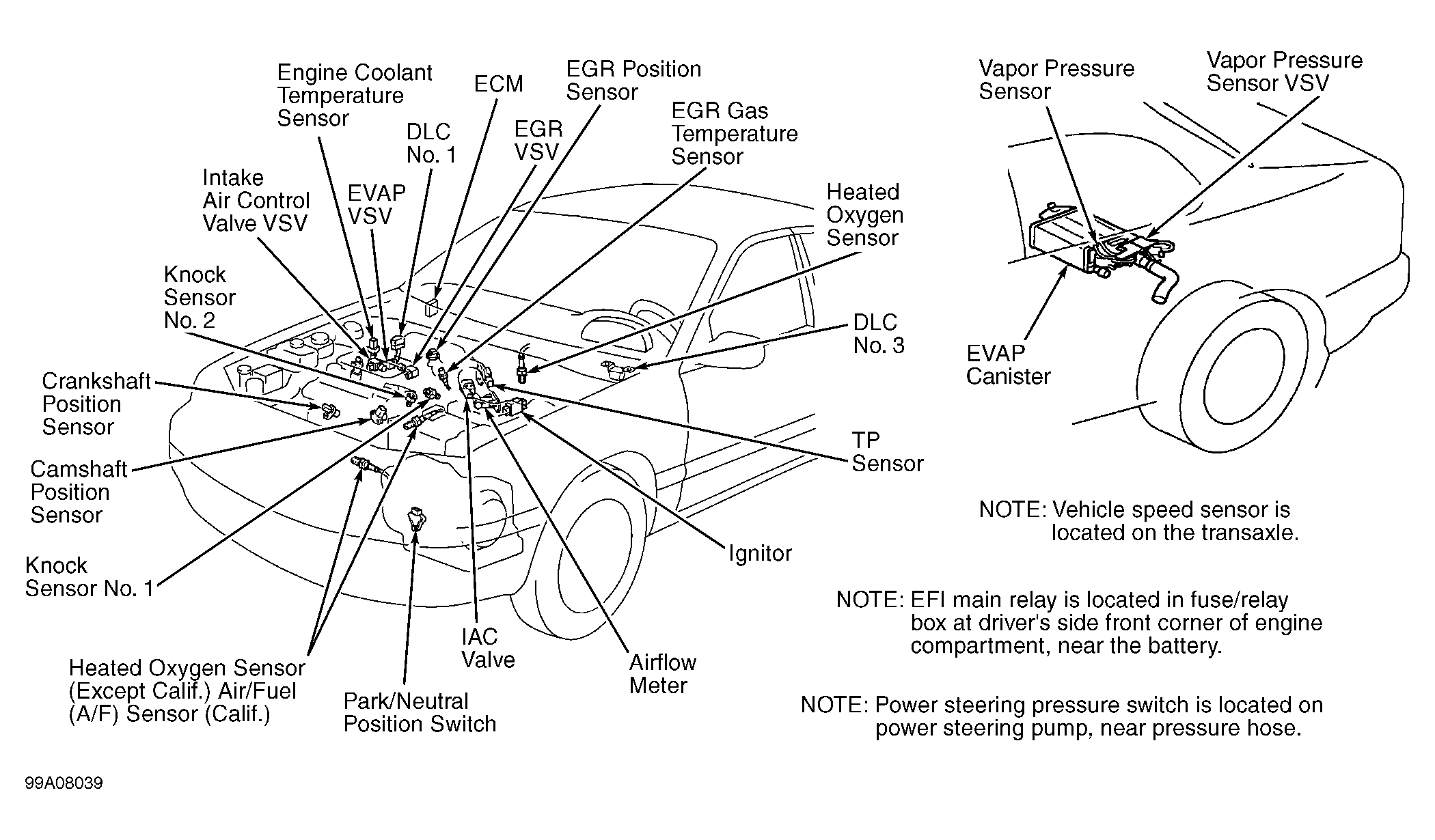

Fig 3: Locating Engine Control System Components (Camry 3.0L V6 & Camry Solara 3.0L V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

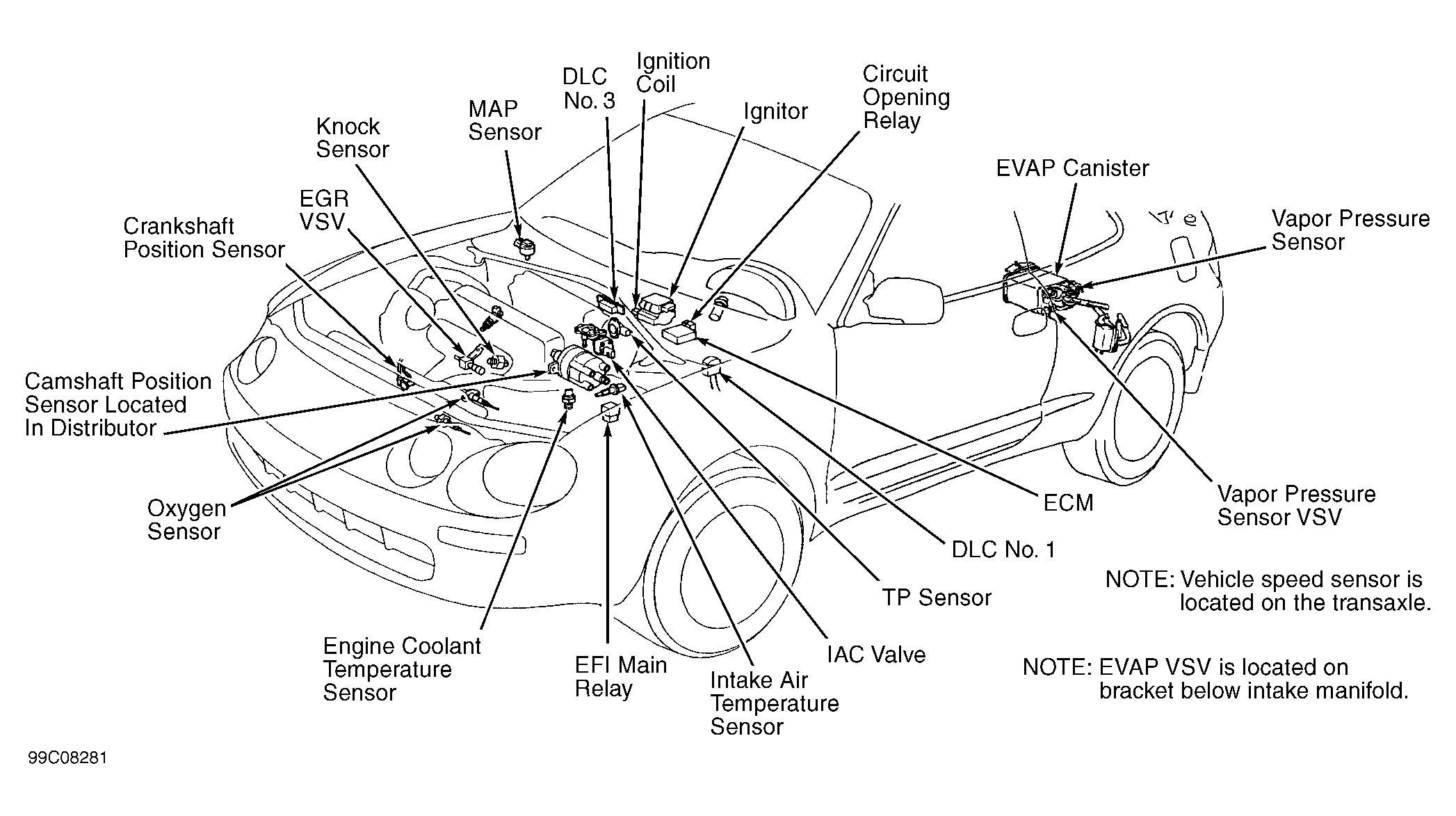

Fig 4: Locating Engine Control System Components (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Locating Engine Control System Components (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Locating Engine Control System Components (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Locating Engine Control System Components (RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

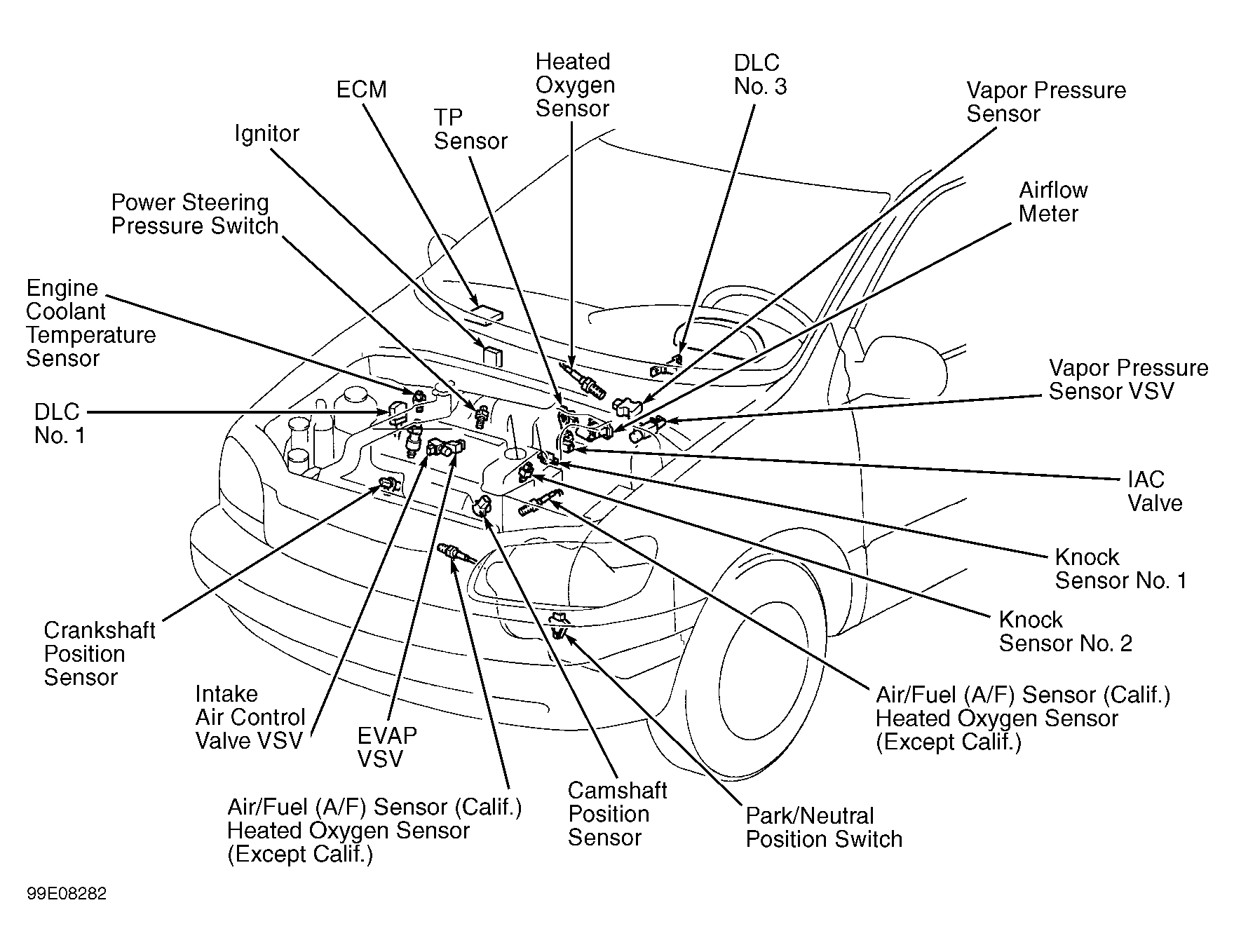

Fig 8: Locating Engine Control System Components (Sienna)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

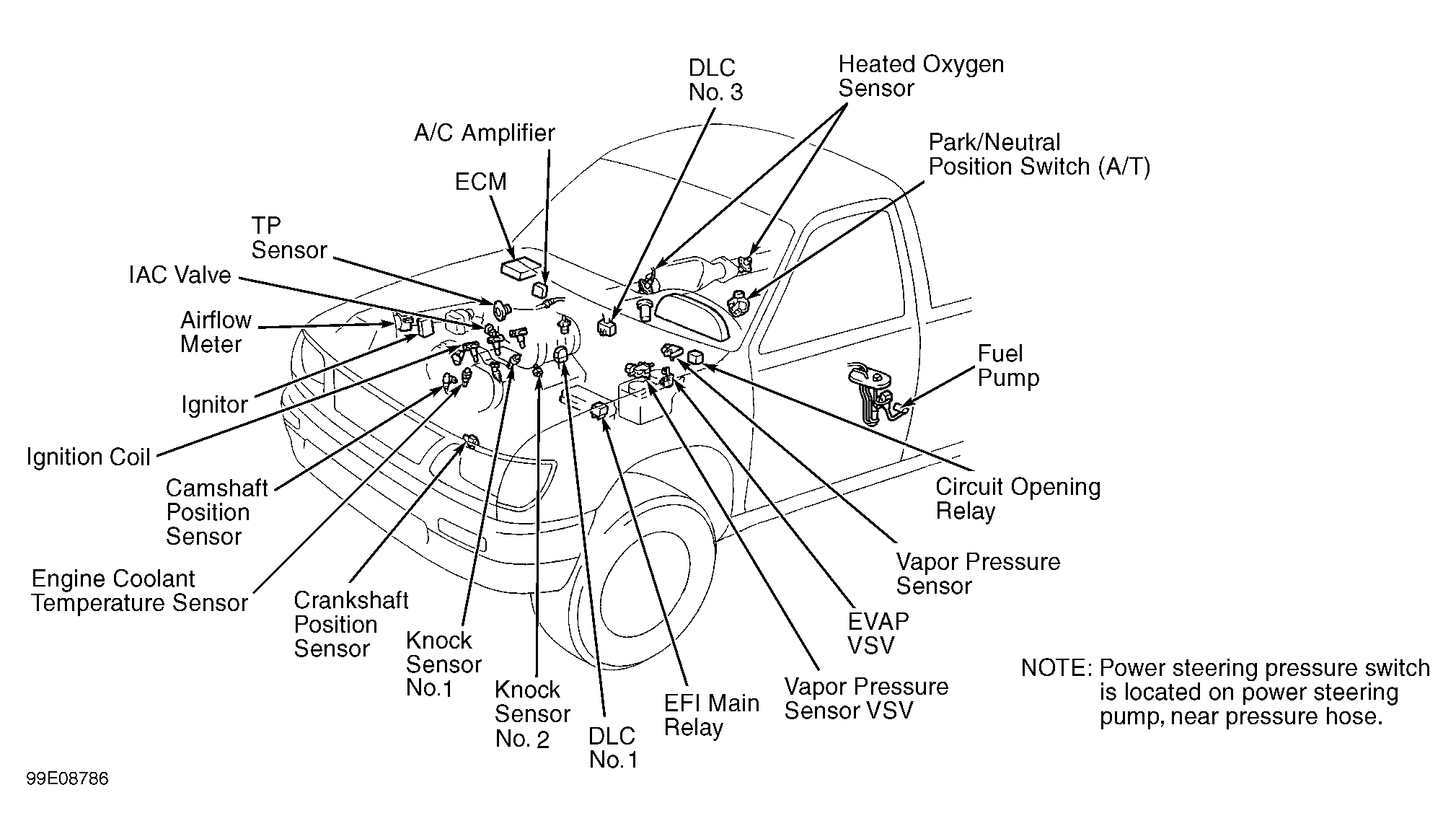

Fig 9: Locating Engine Control System Components (Tacoma 2.4L 4-Cyl. & 2.7L 4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Locating Engine Control System Components (Tacoma 3.4L V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Locating Engine Control System Components (4Runner 2.7L 4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Locating Engine Control System Components (4Runner 3.4L V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
