Connector Views

Use the following connector views for diagnostic pin point tests in TROUBLE SHOOTING , COMPONENT TESTS and CIRCUIT TESTS . See Fig 1-Fig 10.

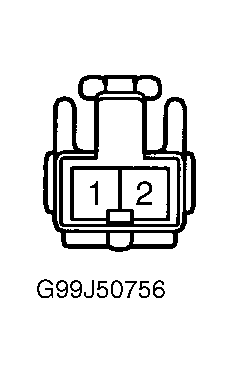

Fig 1: Identifying Rear Quarter Power Window Motor Terminals (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Driver's Power Window Motor Terminals (Land Cruiser & RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Driver's Power Window Master Switch 7-Pin Connector Terminals (Land Cruiser, RAV4 (4-Door) & 4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Driver's Power Window Master Switch 14-Pin Connector Terminals (Land Cruiser, RAV4 & 4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Passenger's Power Window Switch Connector Terminals (4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Driver's Power Window Master Switch Connector Terminals (Sienna, Tacoma & Tundra)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Rear Quarter Power Window Switch Connector Terminals (Land Cruiser)

Fig 8: Identifying Rear Quarter Power Window Switch Connector Terminals (Sienna)

Fig 9: Identifying Passenger & Rear Power Window Switch Connector Terminals (Land Cruiser, RAV4, Sienna, Tacoma, Tundra & 4Runner)

Fig 10: Identifying Back Door/Tailgate Power Window Switch Connector Terminals (4Runner)
