DENSO Made

HINT:
1. For check No.1 - No.2
- Turn the ignition switch ON.
2. For check No.3
- Turn ignition switch ON.
- Shift to D position.
3. For check No.4
- Jack up the vehicle.
- Start the engine.
- Shift to D position.

a. Press the control switch to SET/COAST or RES/ACC position and hold it down or hold it up respectively (1)
b. Push the main switch ON (2).
c. Check that the CRUISE MAIN indicator light blinks twice or 3 times repeatedly after 3 seconds.
d. Turn the SET/COAST or RES/ACC switch OFF.

No: 1 - 4:

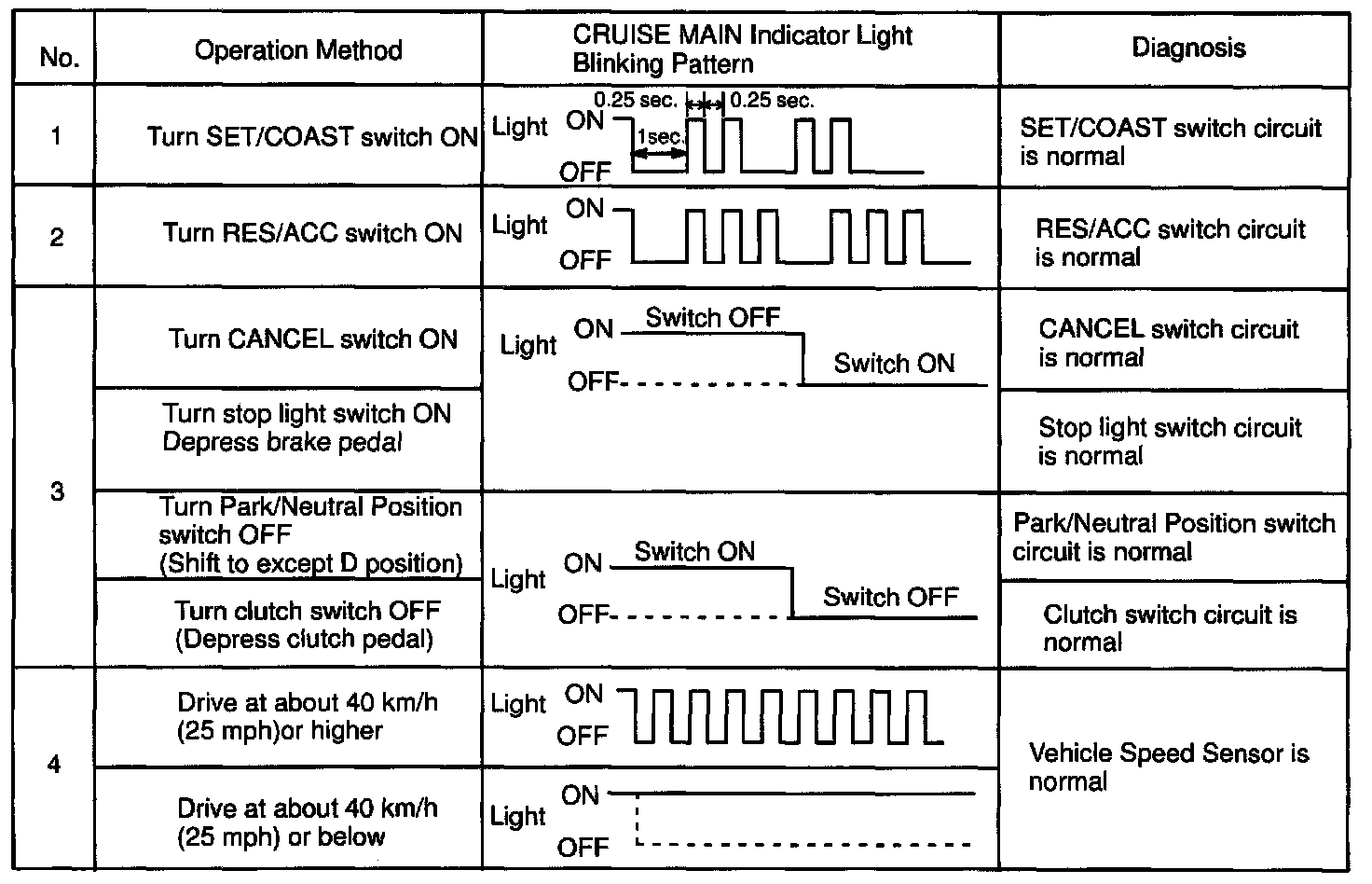

e. Operate each switch as listed in the table.
f. Read the blinking pattern of the CRUISE MAIN indicator light.
g. After performing the check, turn the main switch OFF.

HINT: When 2 or more signals are input to the ECU, the lowest numbered code will be displayed first.
