Seats

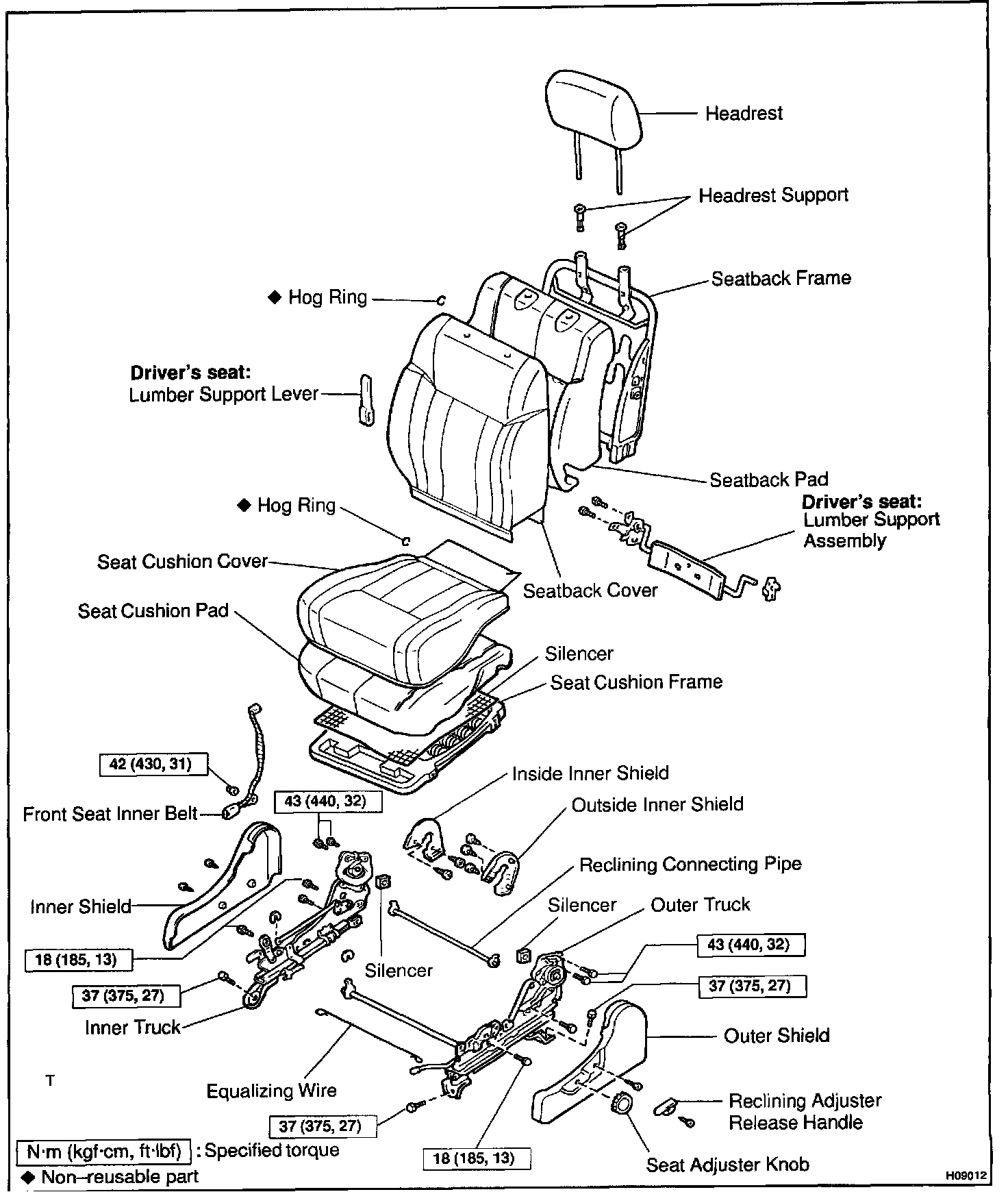

Front Seat (Separate Type):

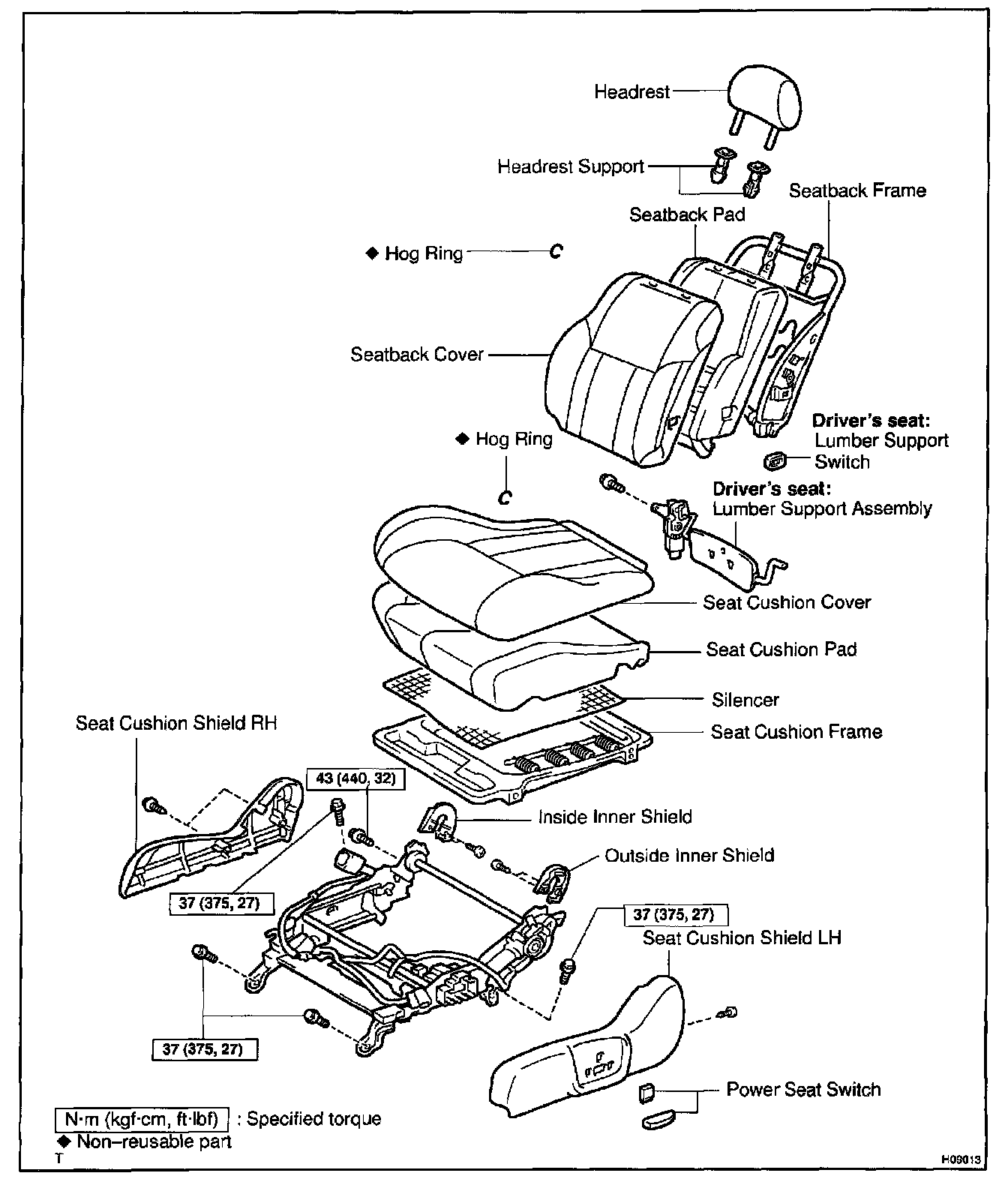

Front Seat (Sports Type):

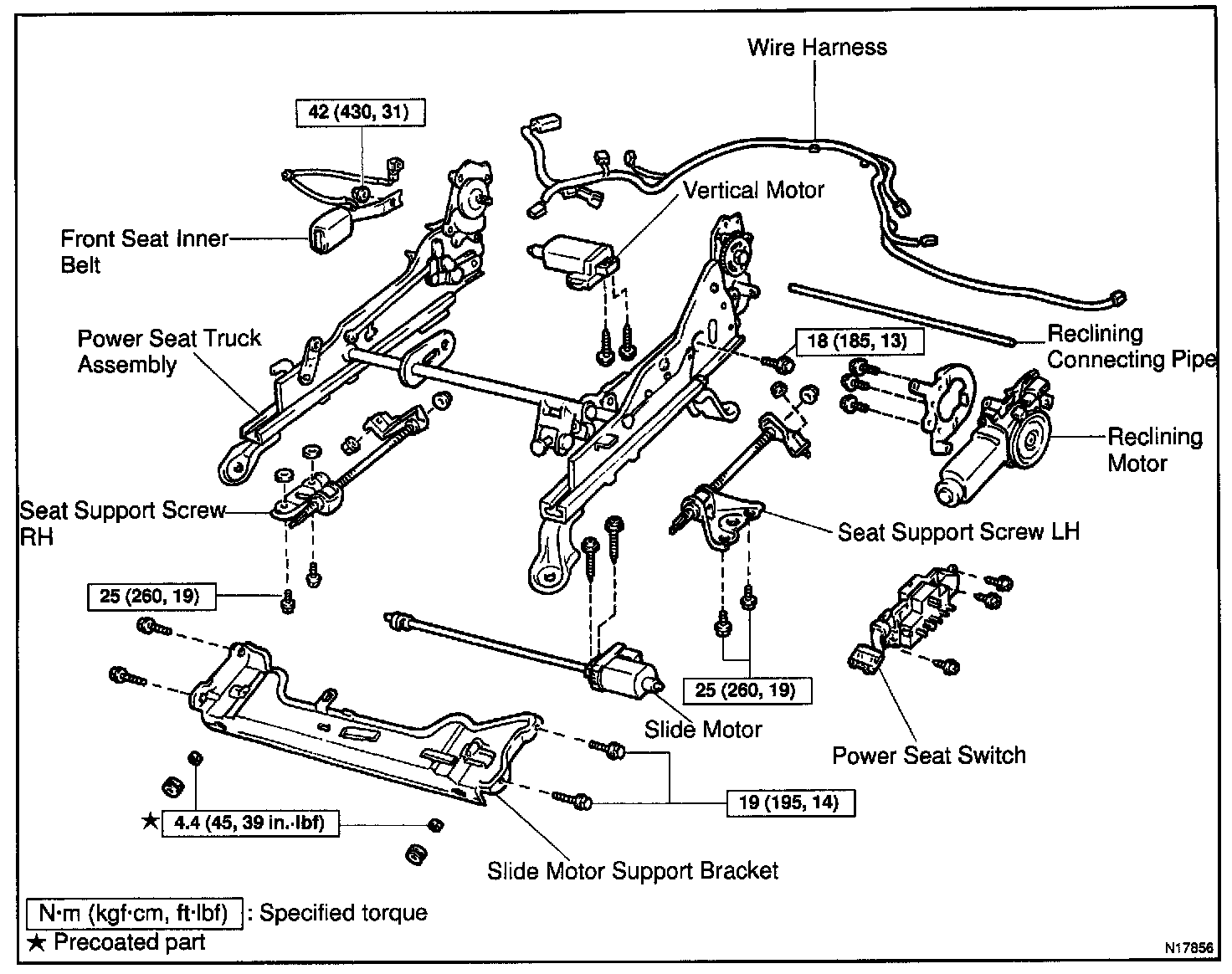

Front Seat (Power Adjuster Type):

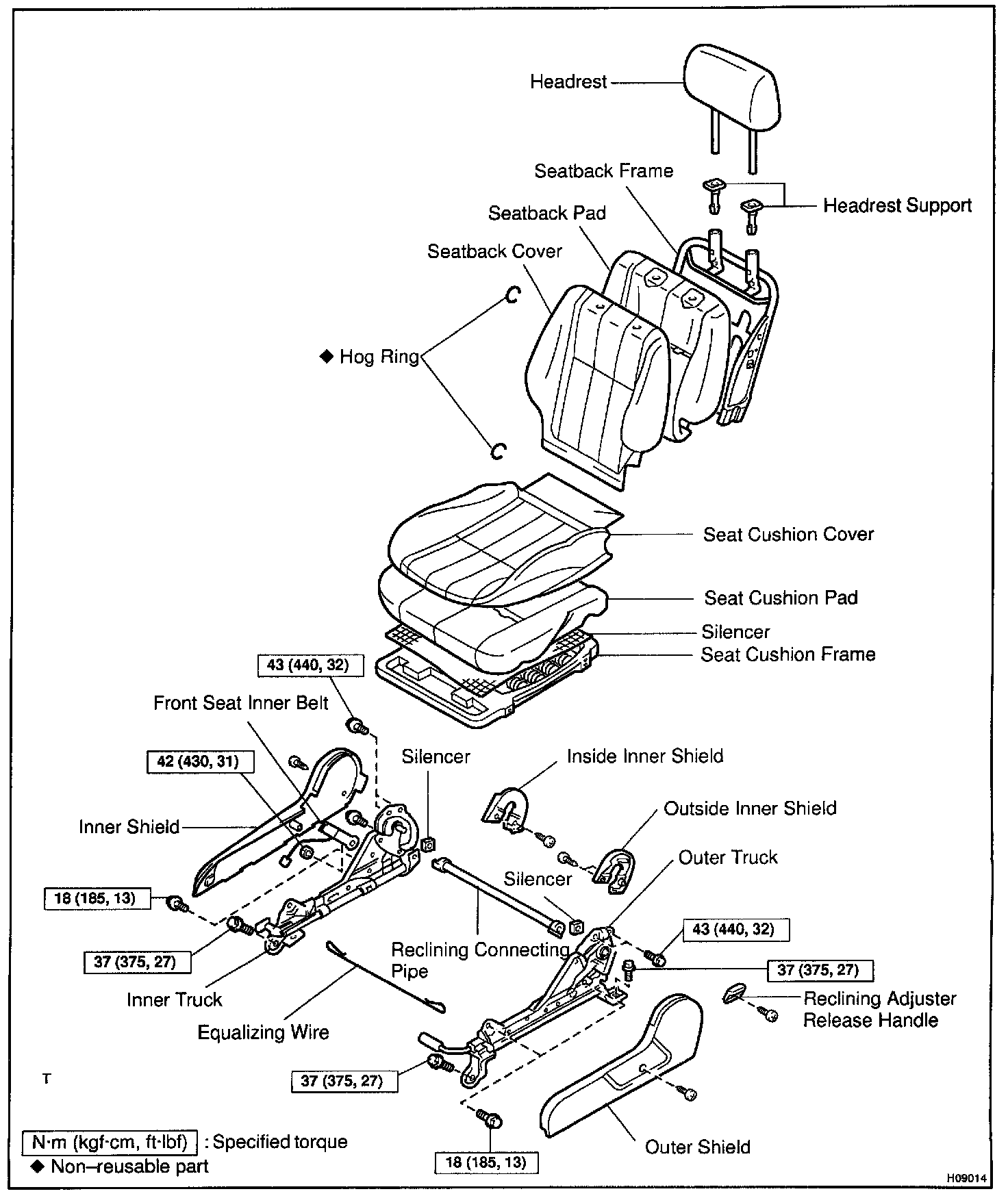

Front Seat (Power Adjuster Type):

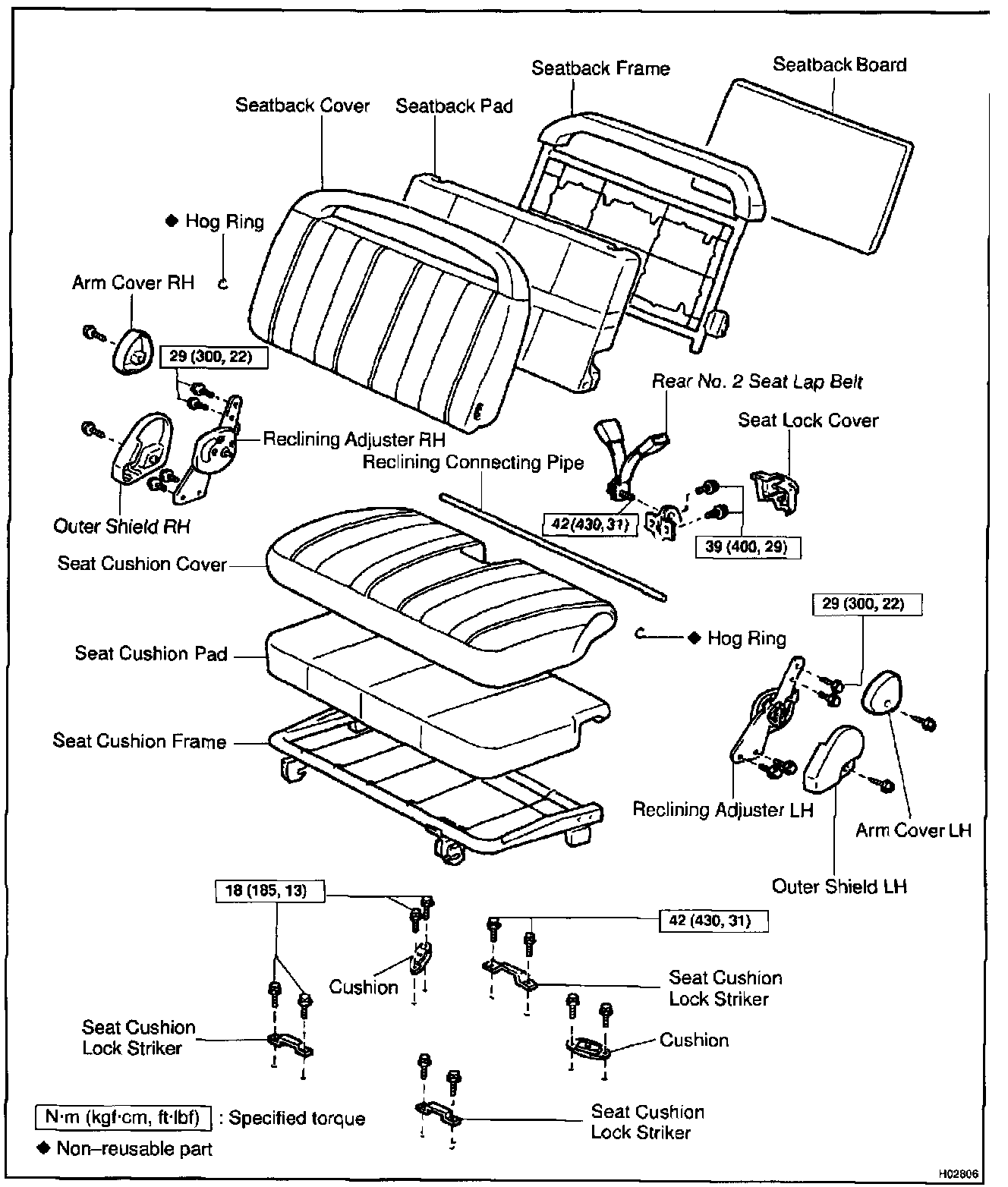

Rear No.1 Seat:

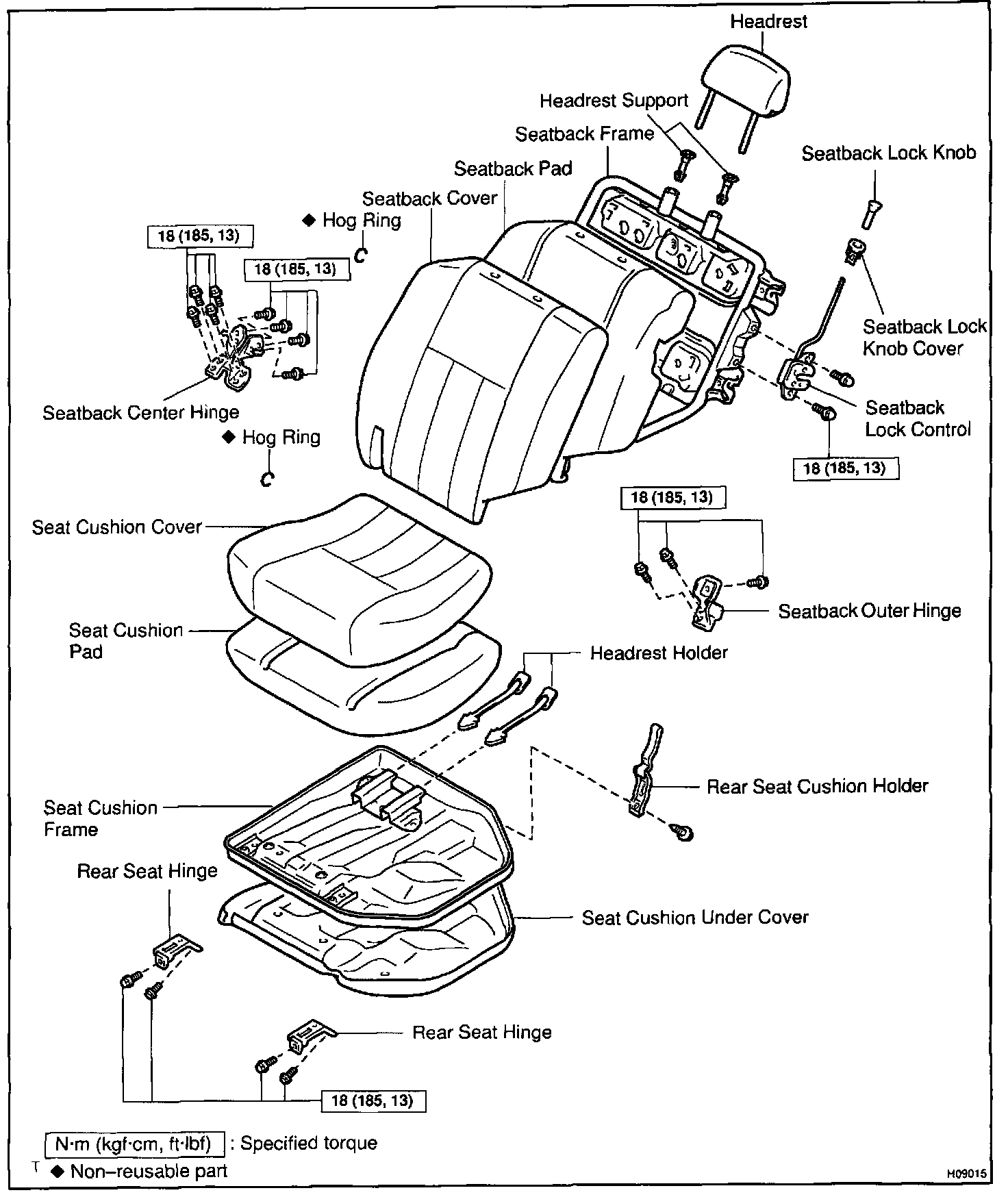

Rear No.2 Seat:
