Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION SENSOR

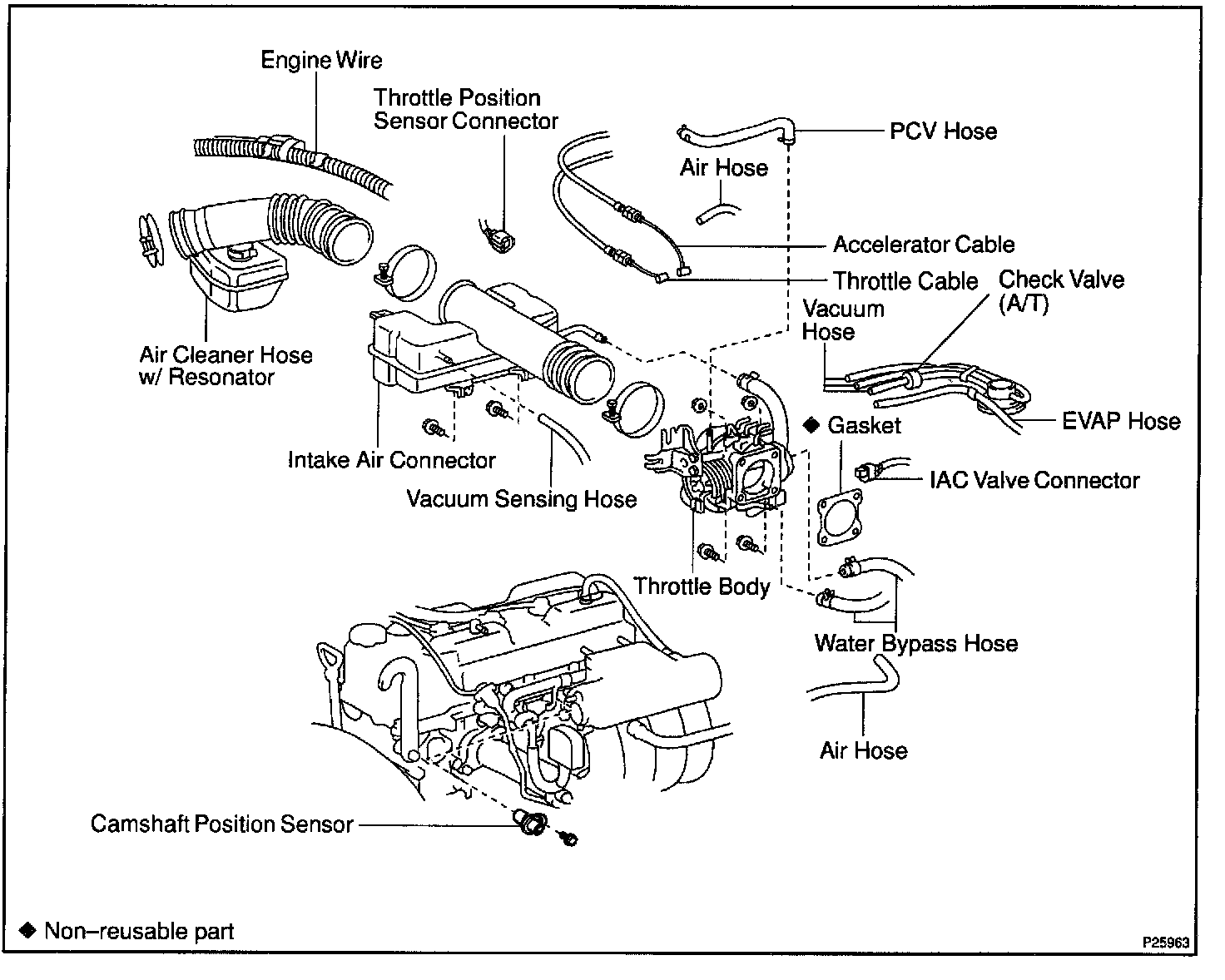

COMPONENTS

REMOVAL

1. REMOVE THROTTLE BODY




2. REMOVE CAMSHAFT POSITION SENSOR
a. Disconnect the camshaft position sensor connector.
b. Remove the bolts and camshaft position sensor.

Torque: 5.4 Nm (55 kg.cm, 48 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
