Engine Torque and Sequence

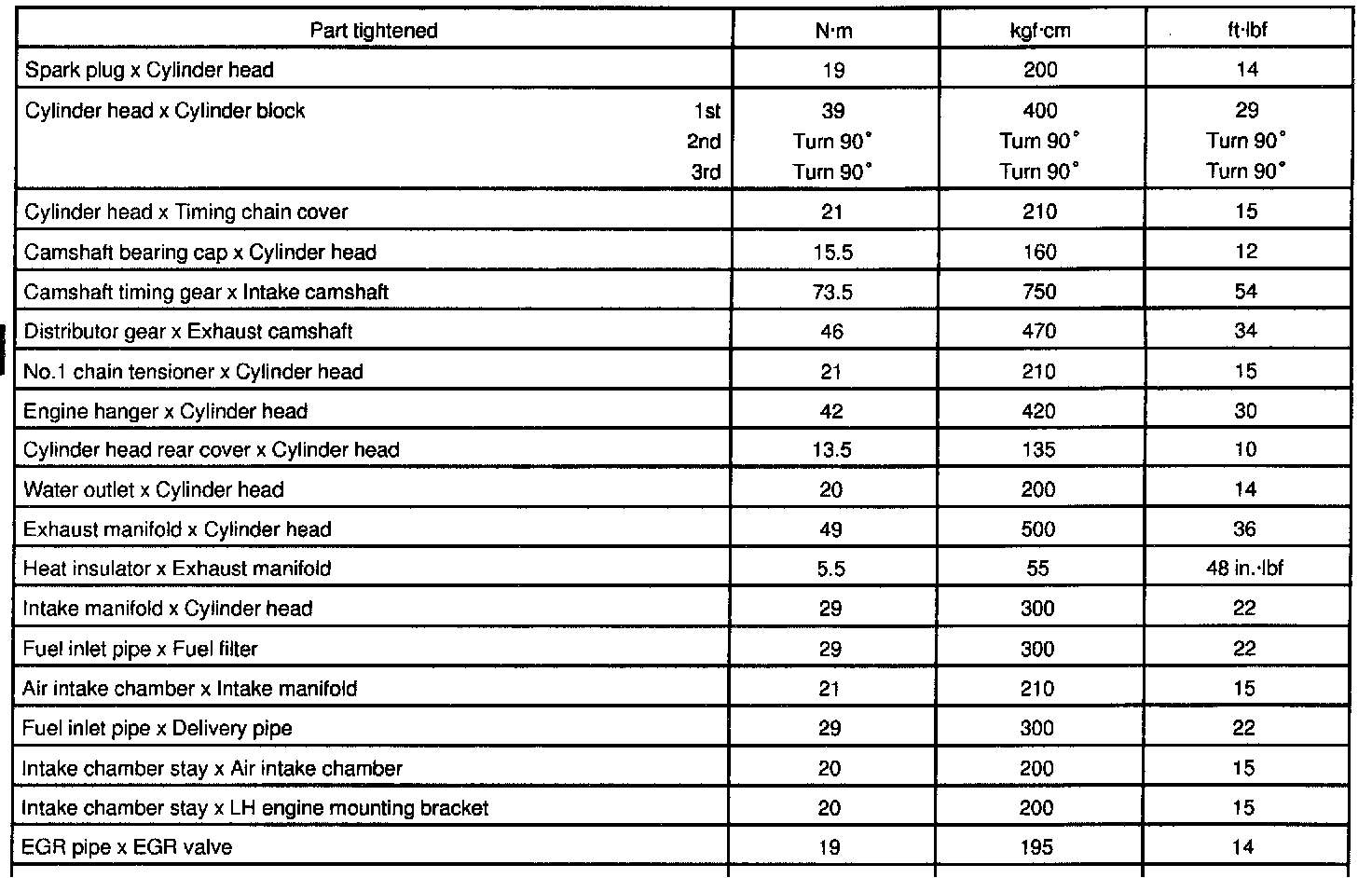

3RZ-FE Engine Mechanical Torque:

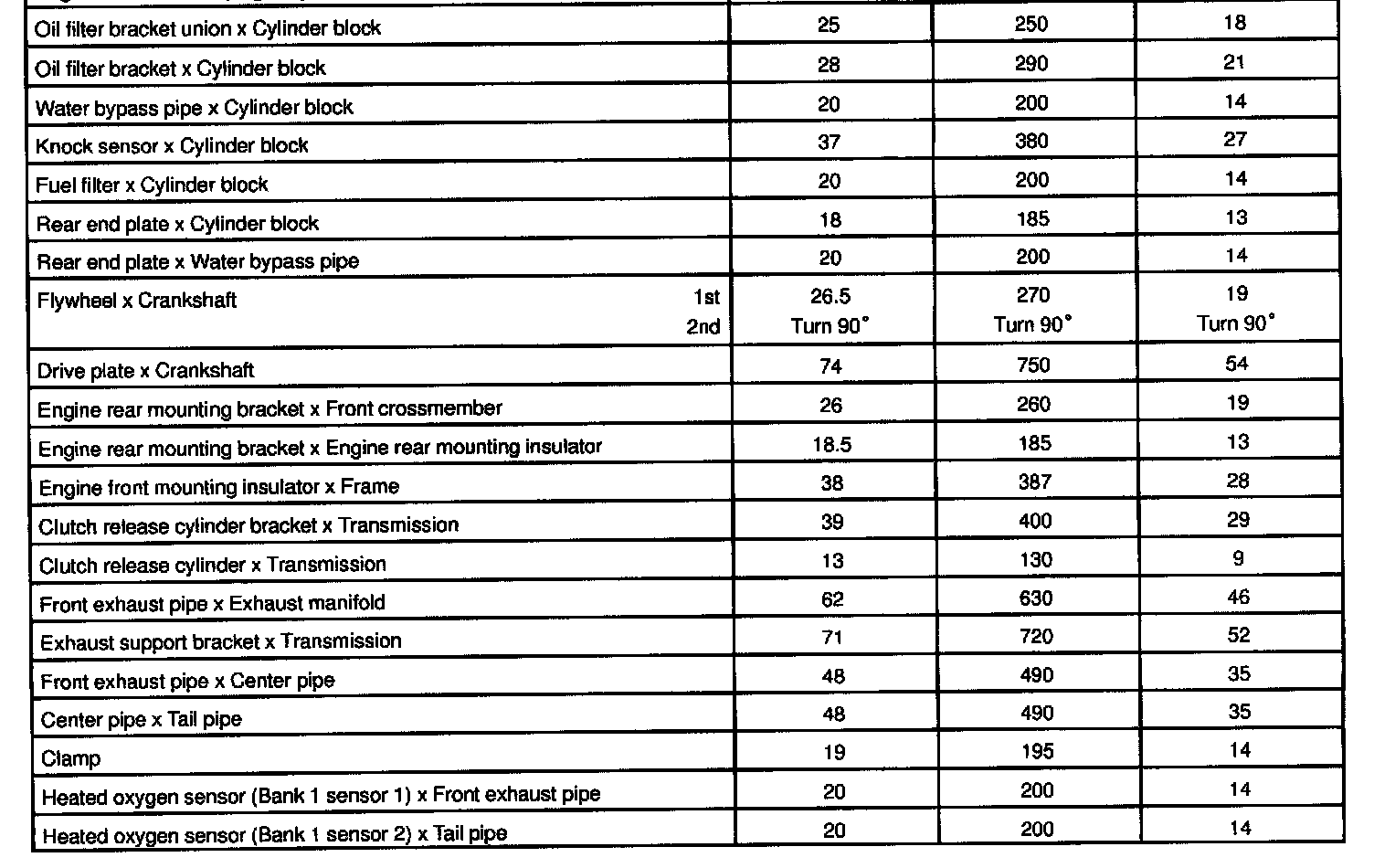

3RZ-FE Engine Torque Cont.:

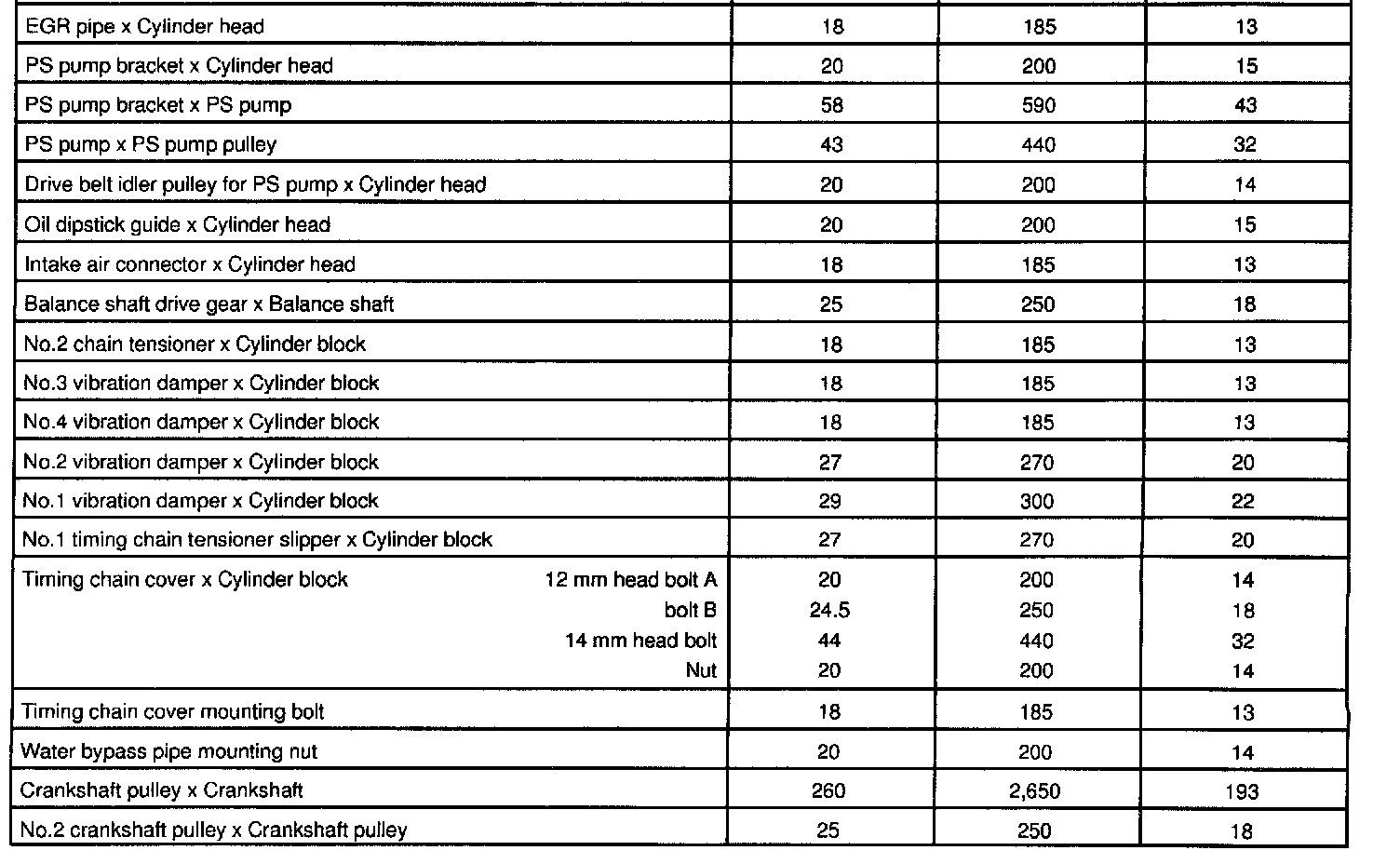

3RZ-FE Engine Torque Cont.:

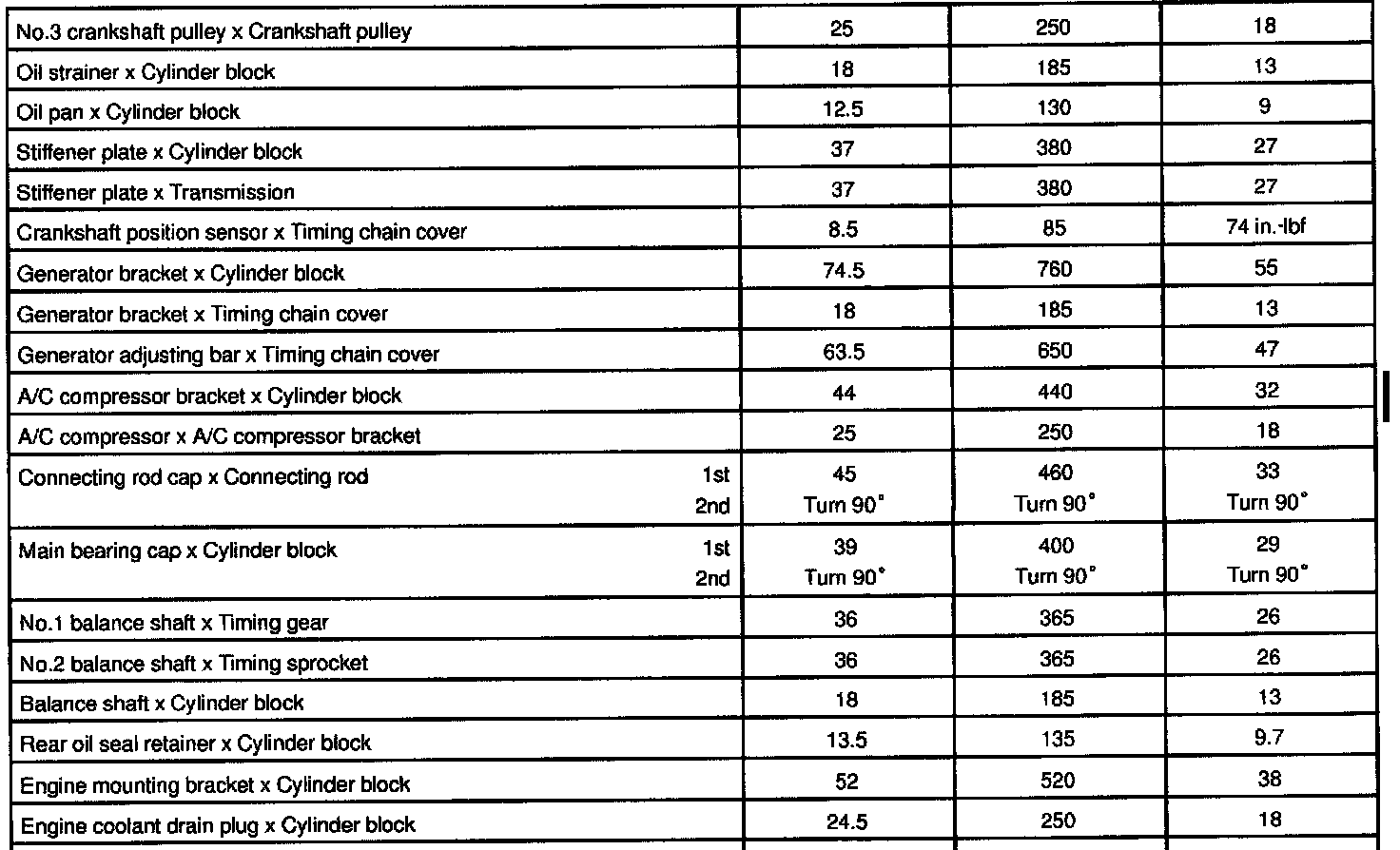

3RZ-FE Engine Torque Cont.:

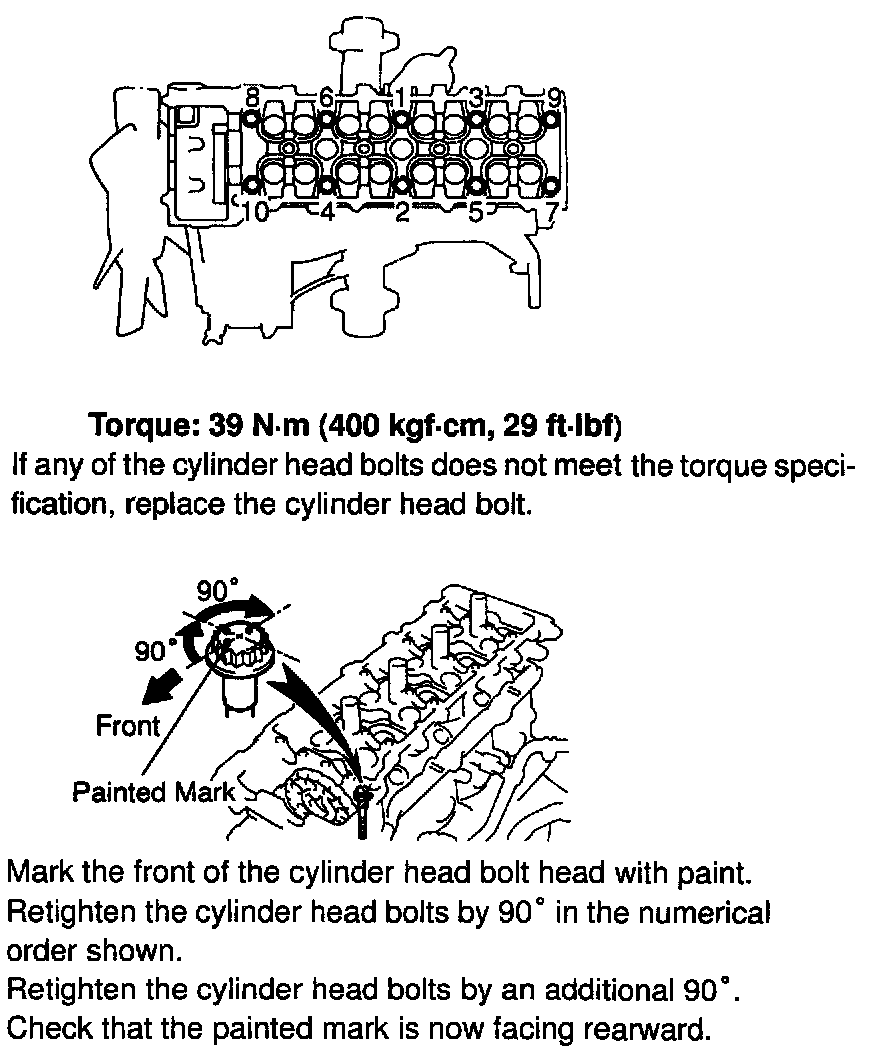

3RZ-FE Cylinder Head Torque & Sequence:
