Connector Code Lists

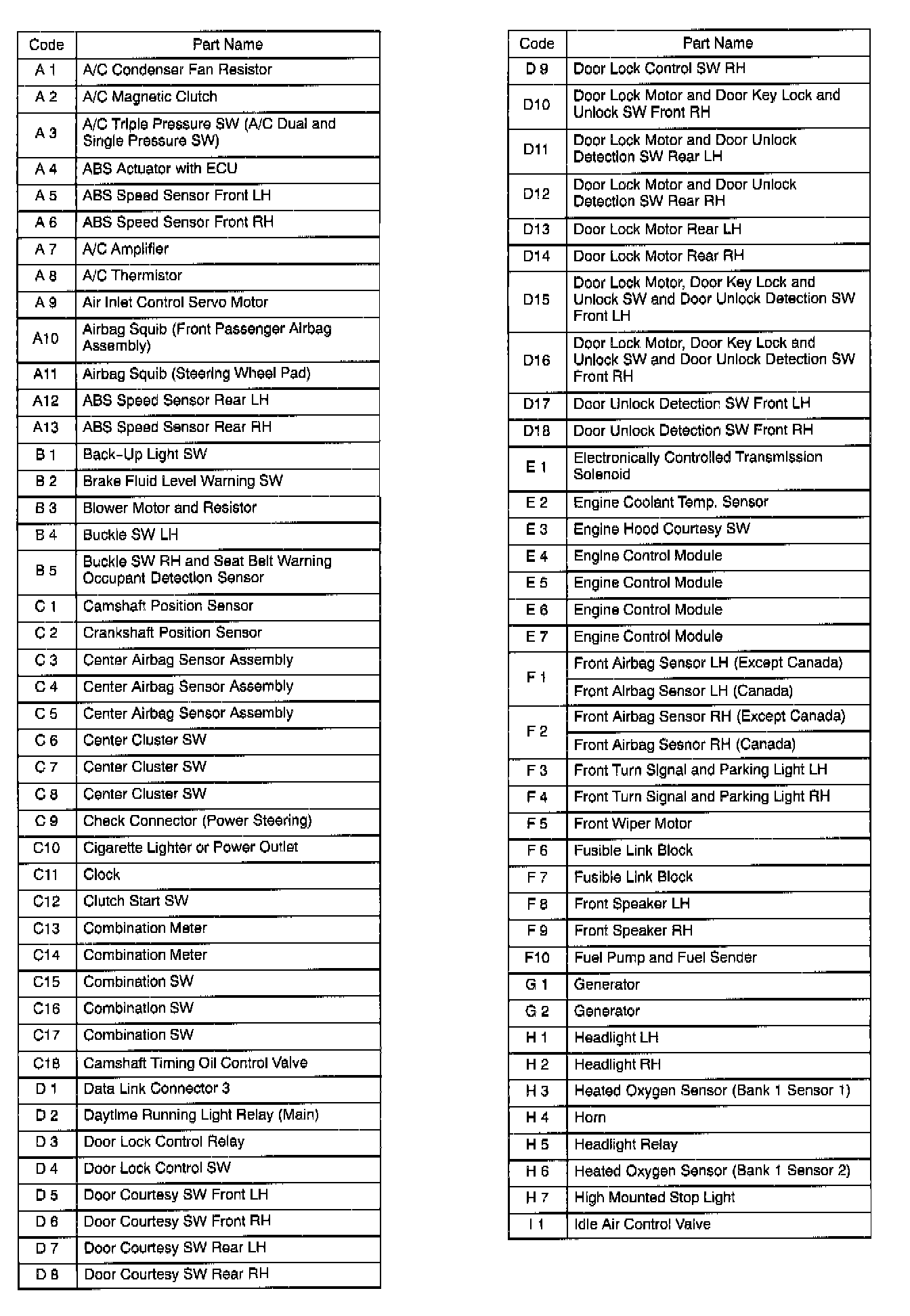

Part 1 Of 2:

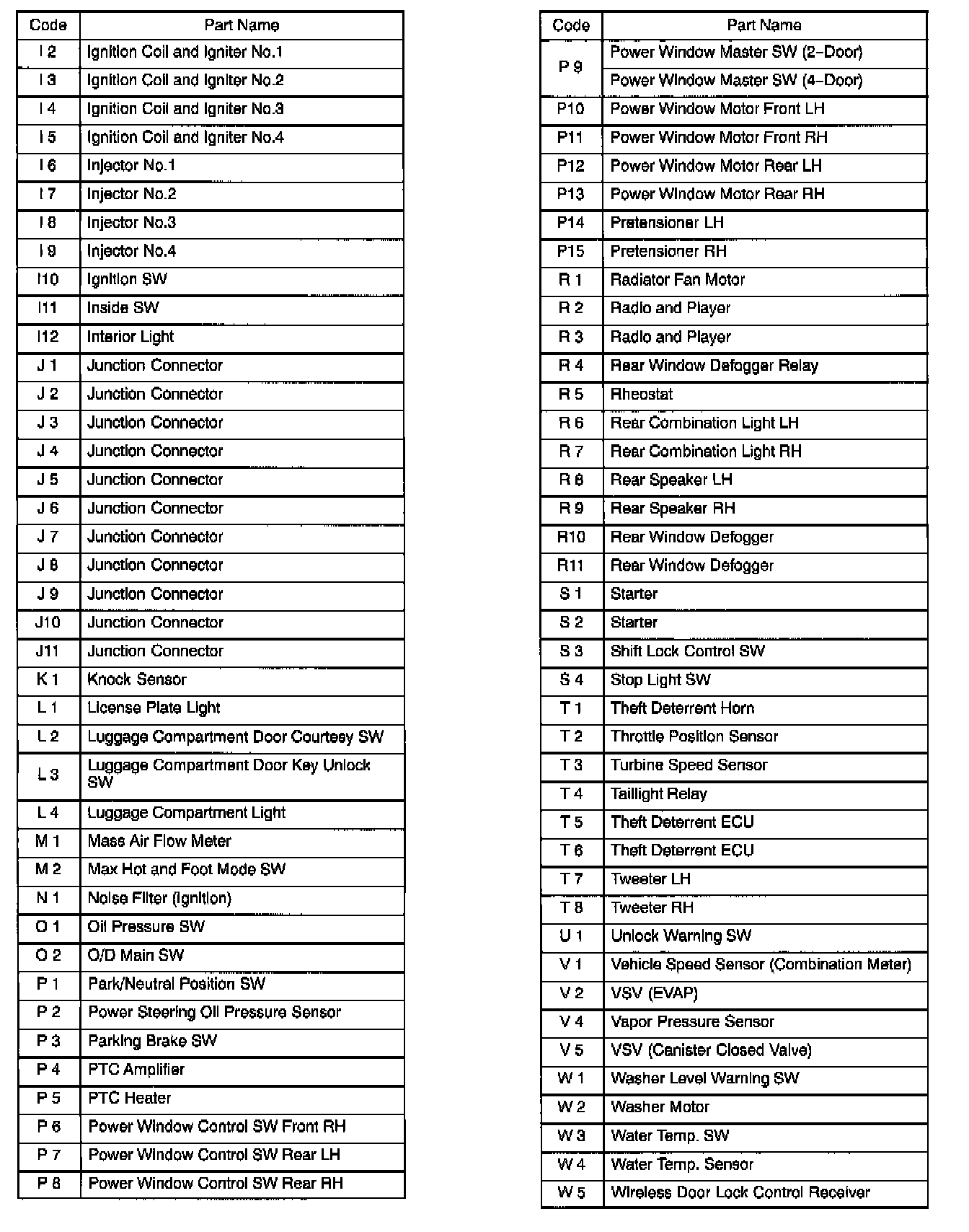

Part 2 Of 2:

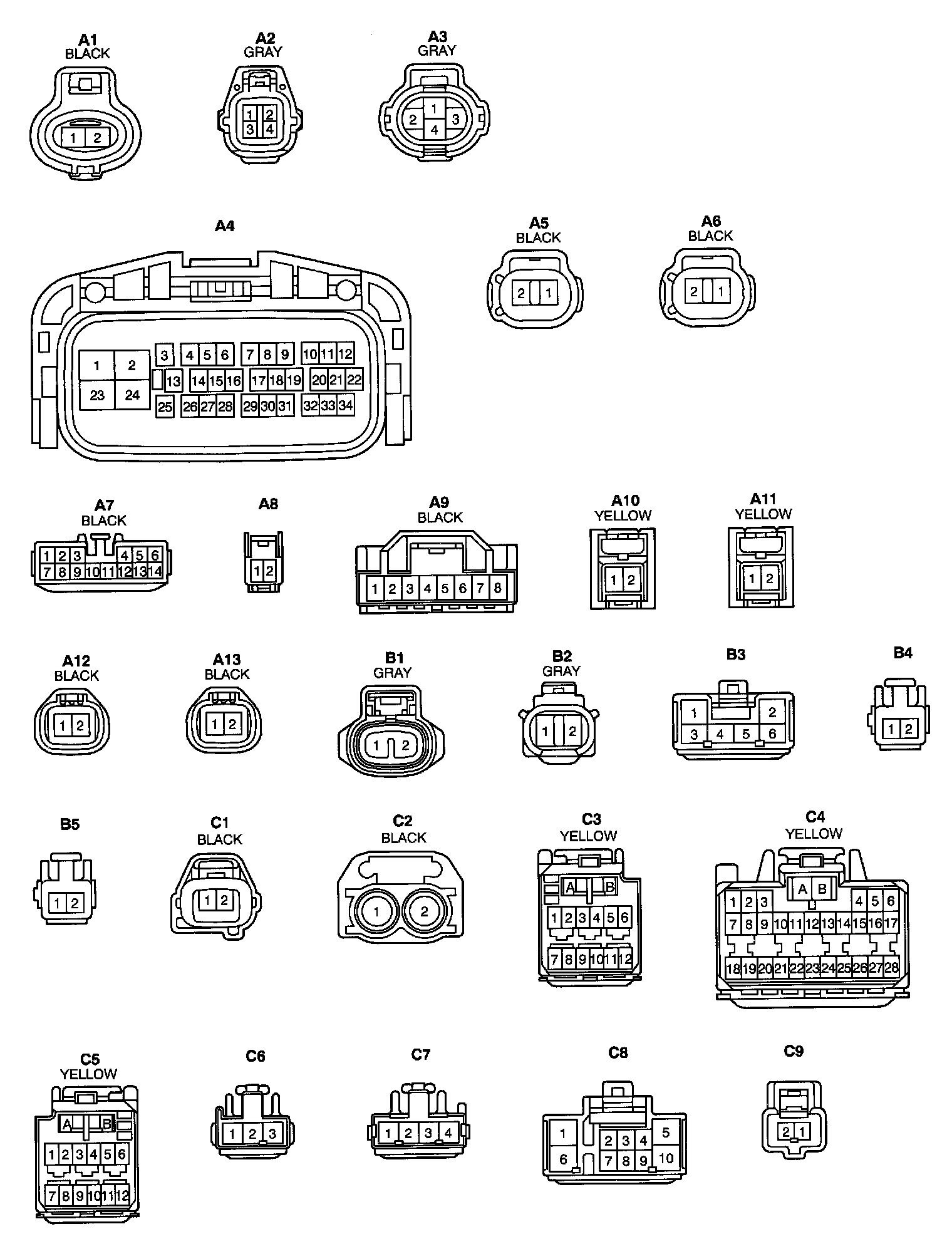

A1 - C9:

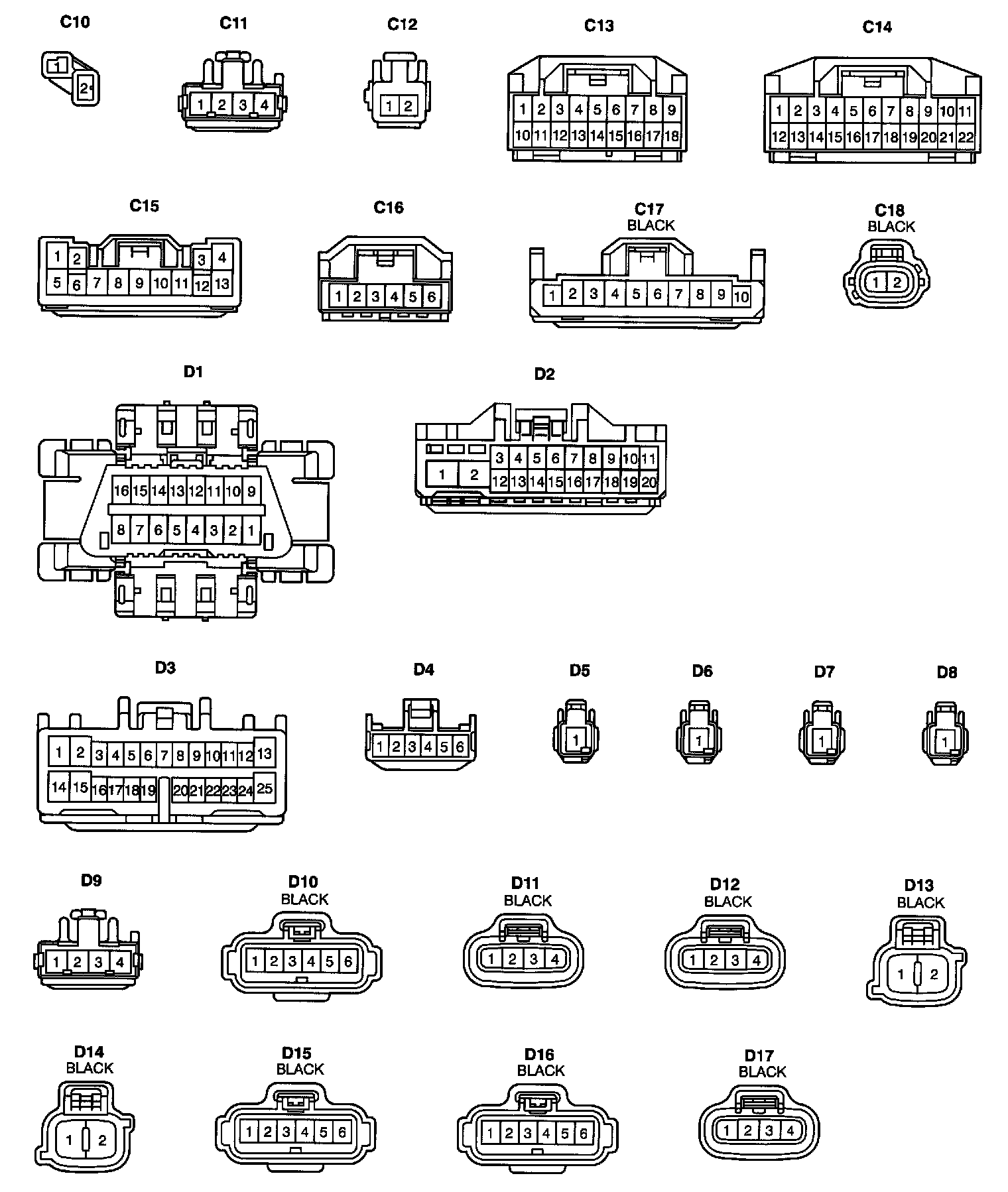

C10 - D17:

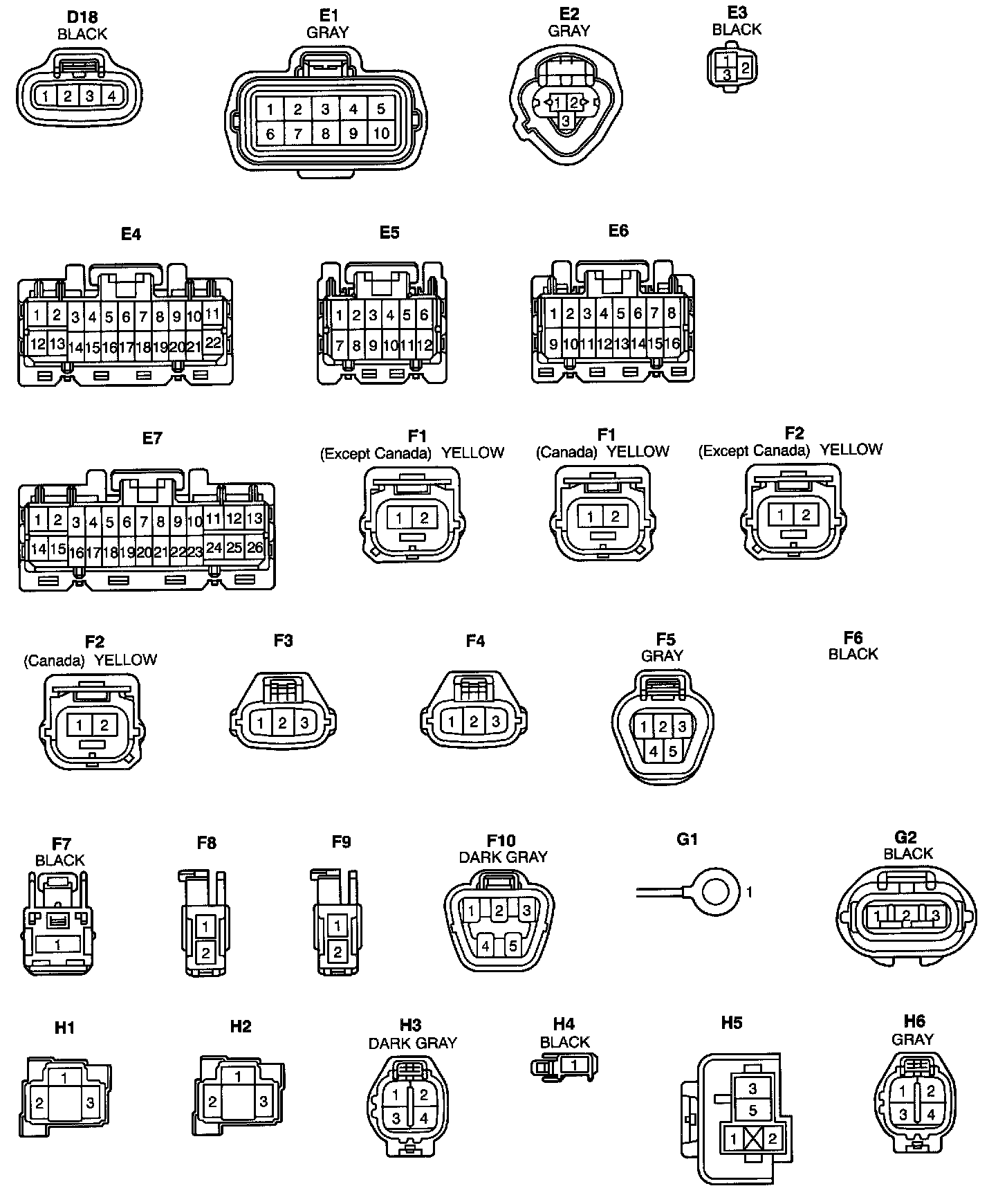

D18 - H6:

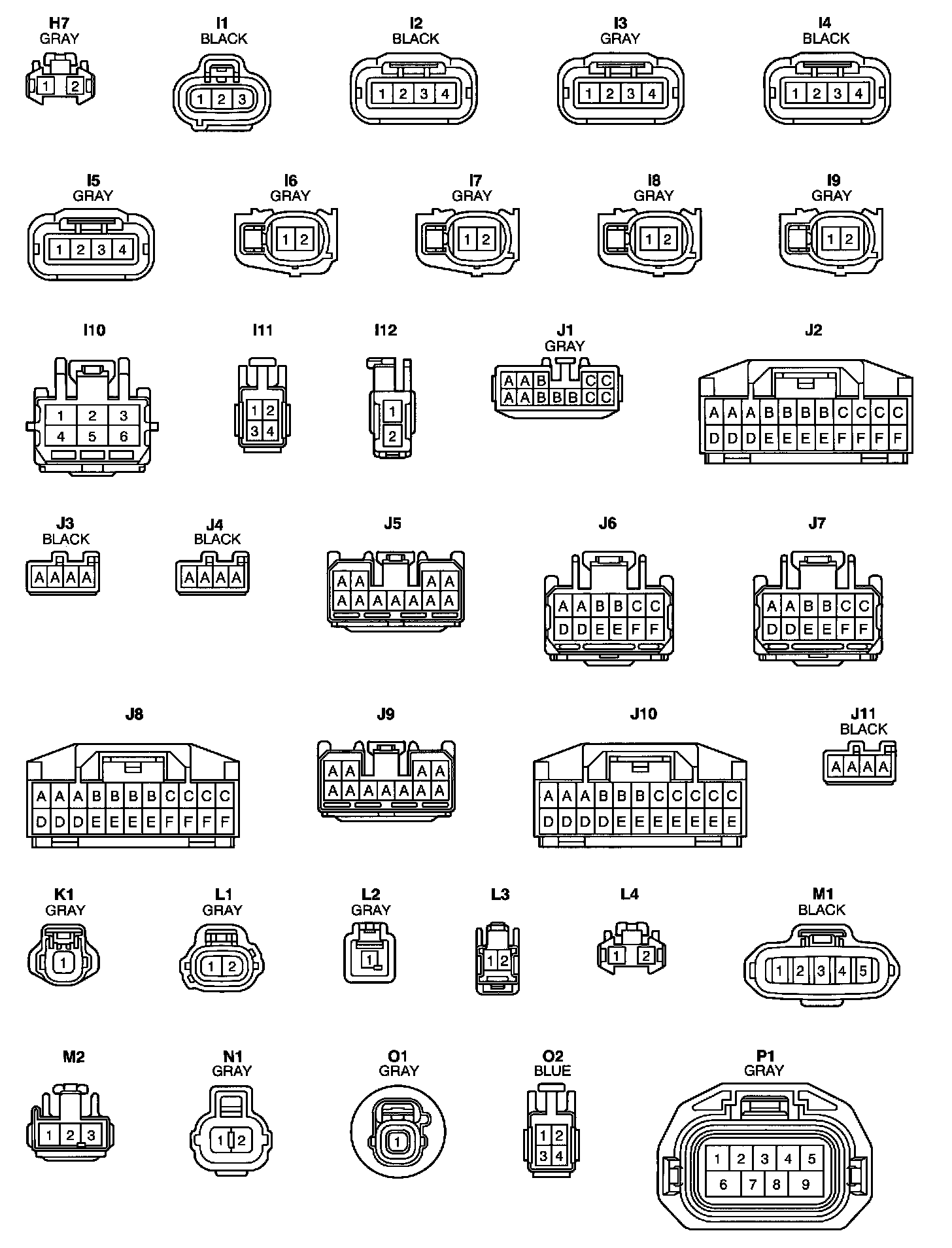

H7 - P1:

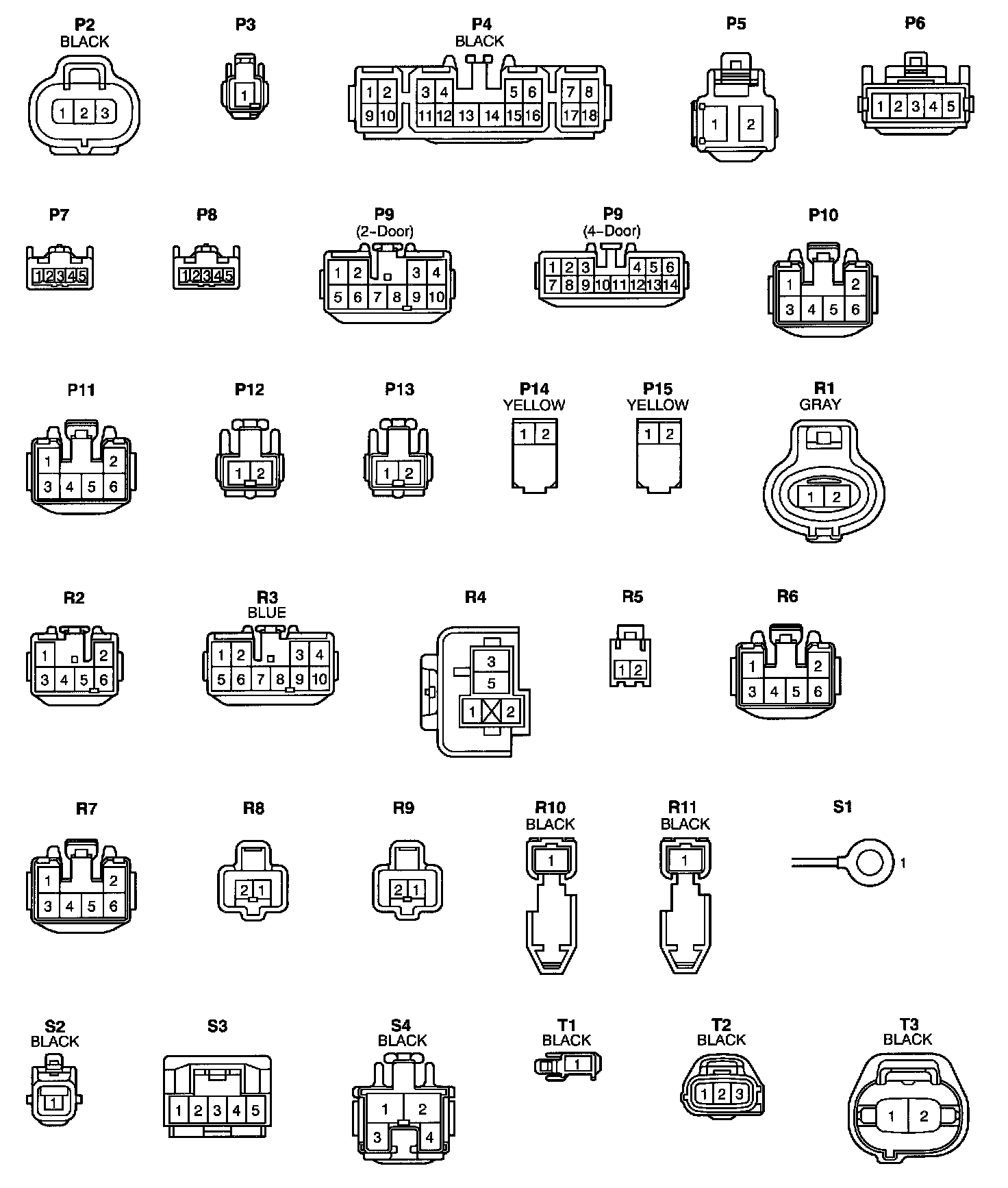

P2 - T3:

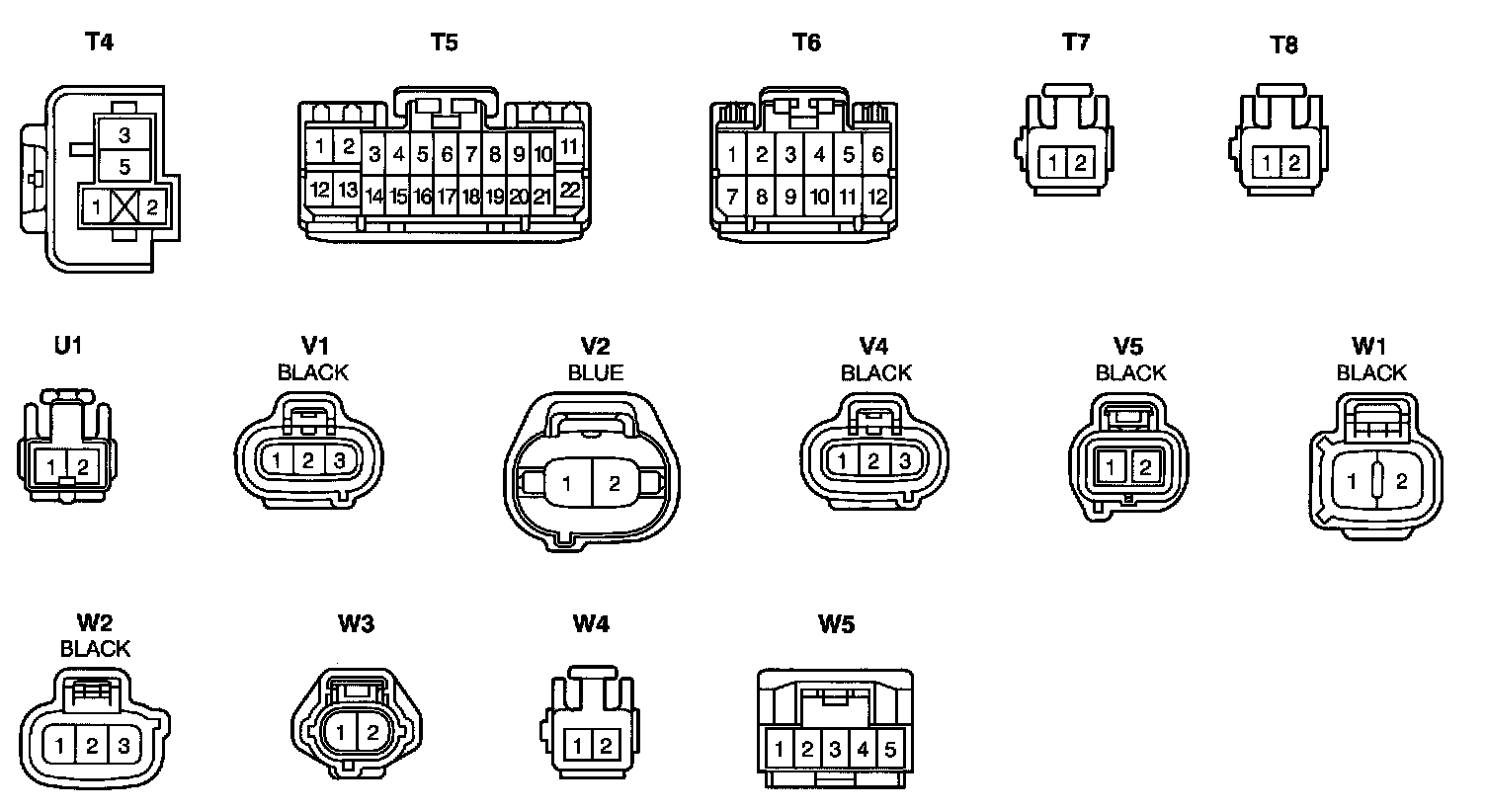

T4 - W5:
