Radiator

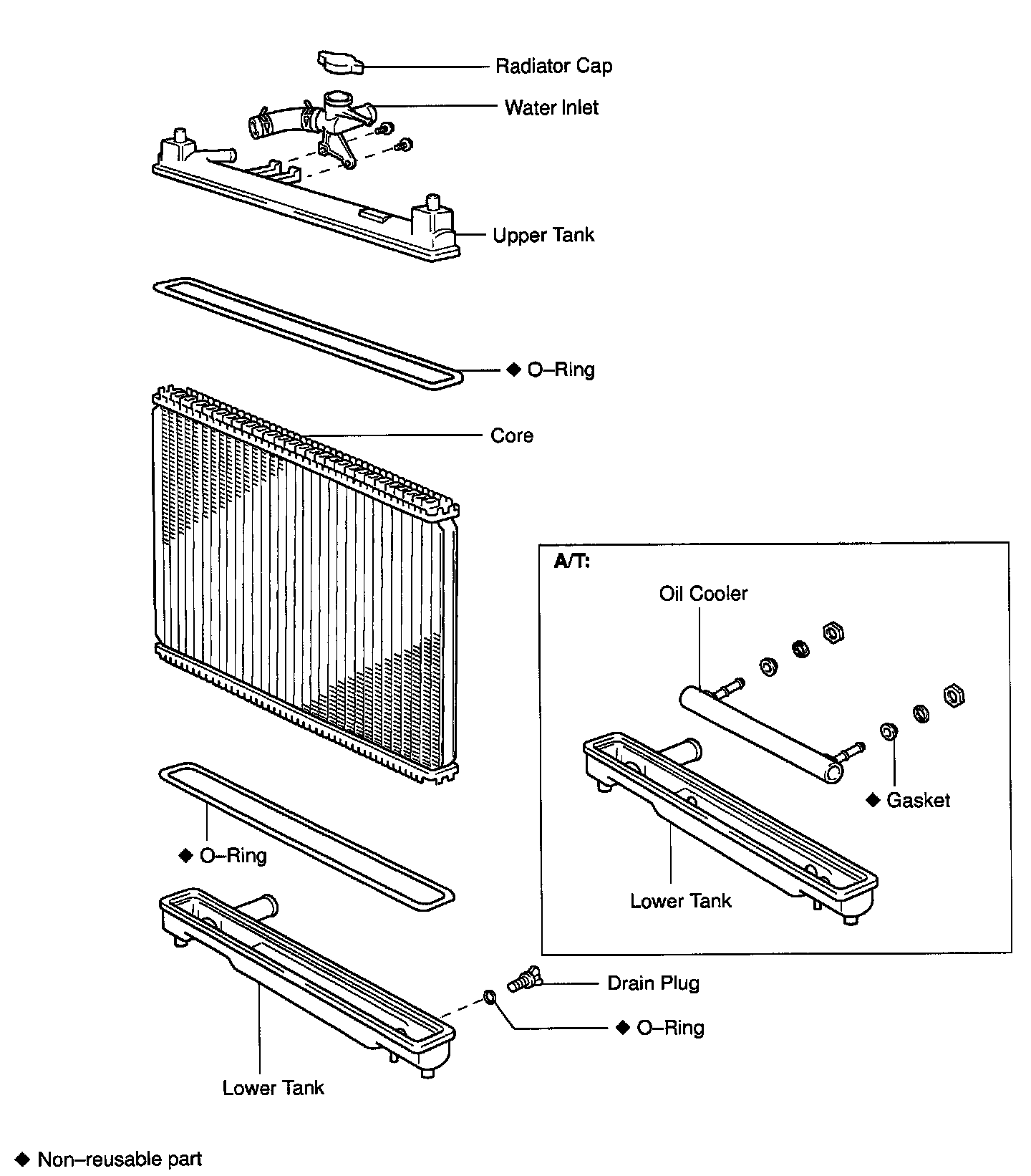

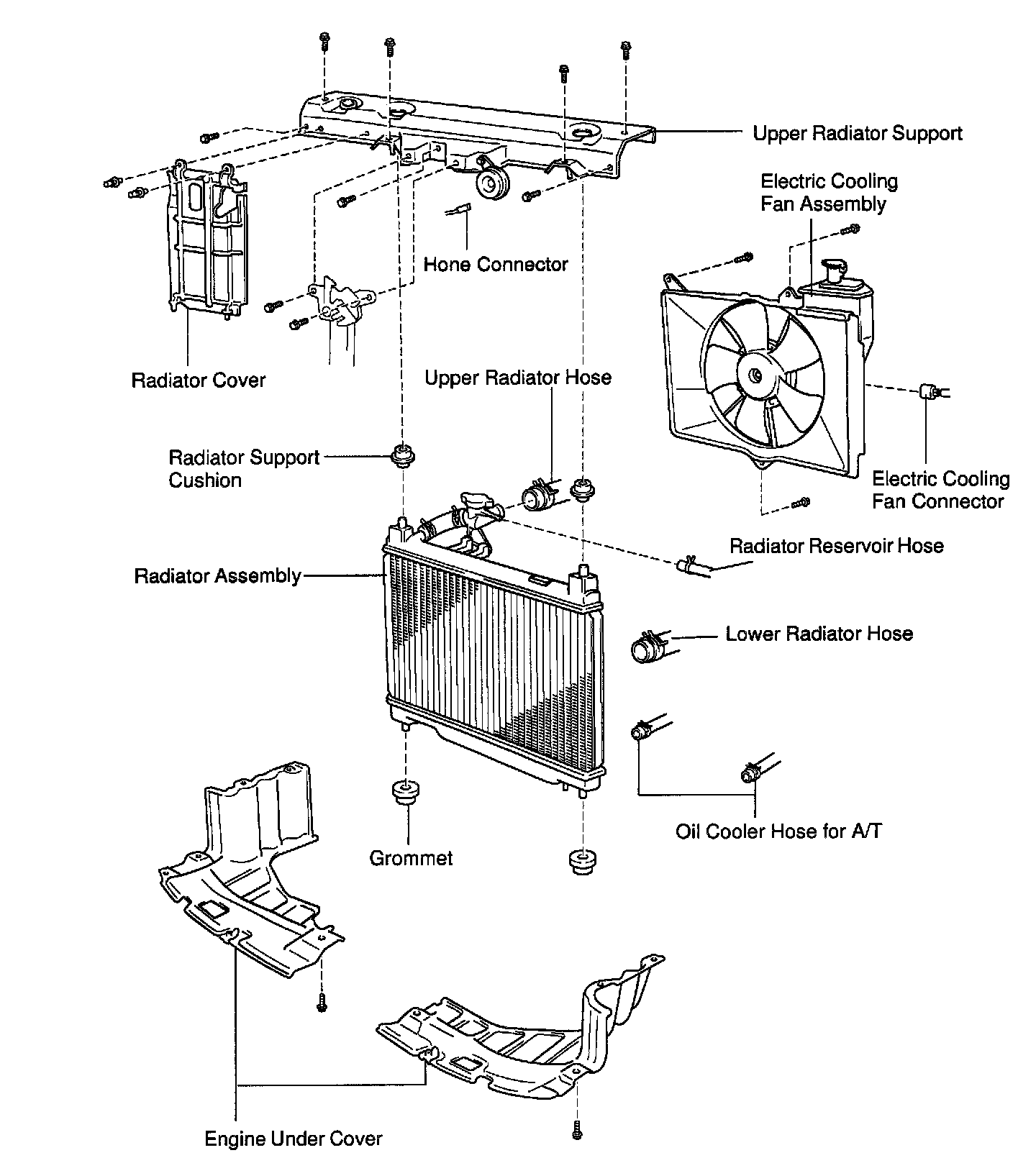

RADIATOR REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Part 1 Of 2:
Part 1 of 2
Part 2 Of 2:
Part 2 of 2
