Crankshaft Position Sensor: Service and Repair

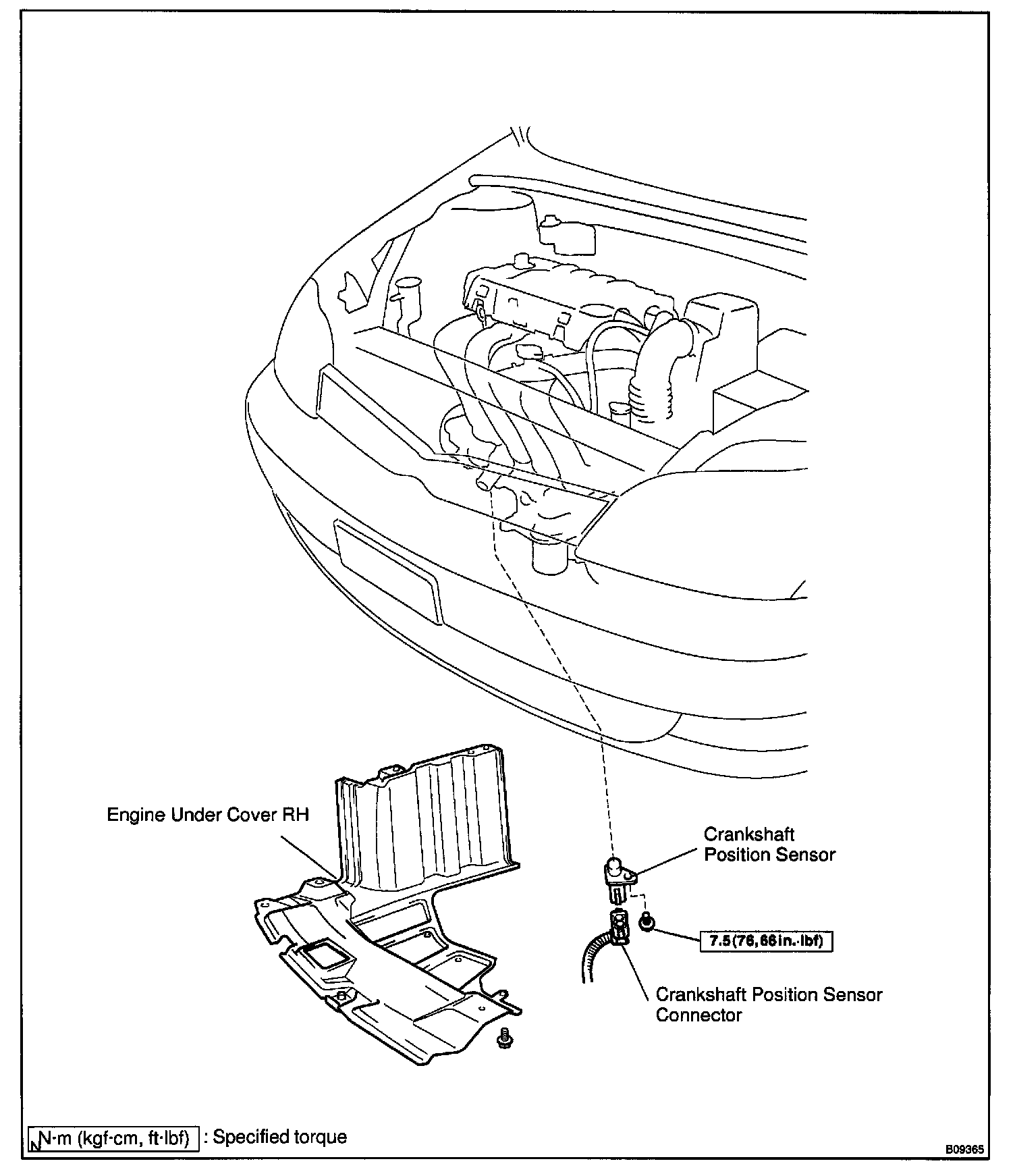

COMPONENTS

REMOVAL
1. REMOVE ENGINE UNDER COVER RH.




2. REMOVE CRANKSHAFT POSITION SENSOR
a. While sliding the connector lock, remove the connector.
b. Remove the bolt and crankshaft position sensor.

Torque: 7.5 Nm (76 kg.cm, 66 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
