Engine Service Data

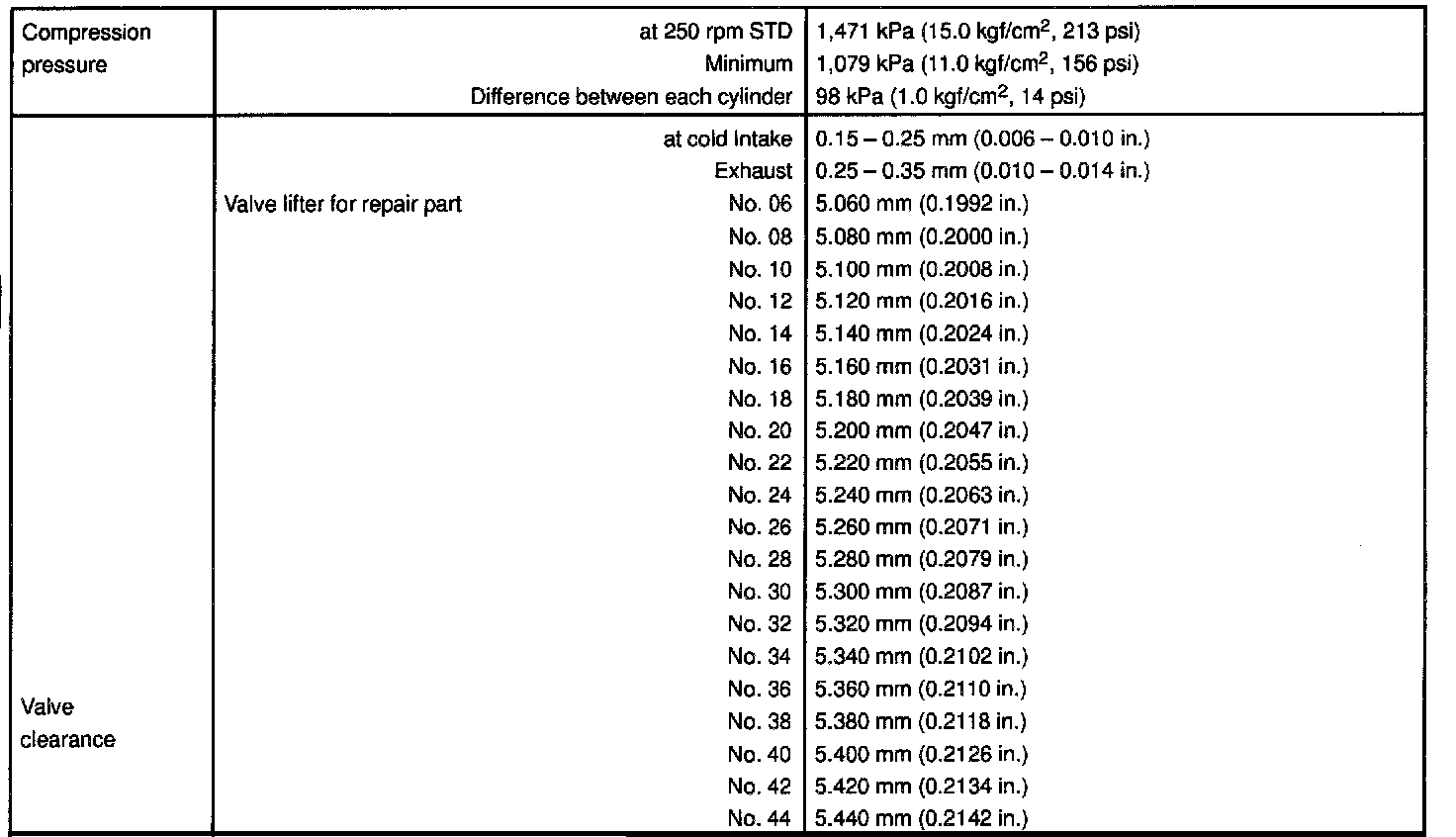

1.5L Engine Mechanical Data:

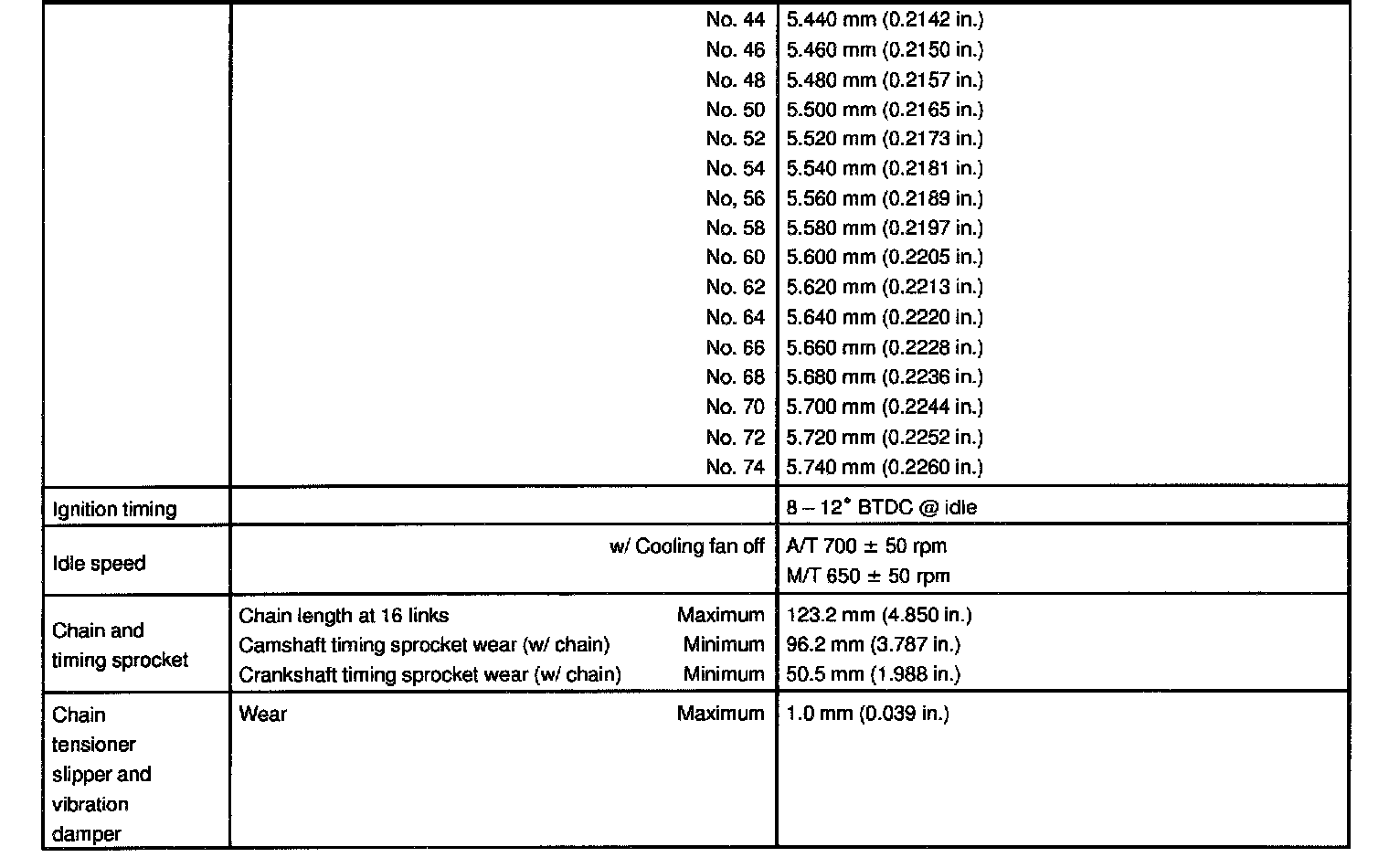

1.5L Engine Mechanical Cont.:

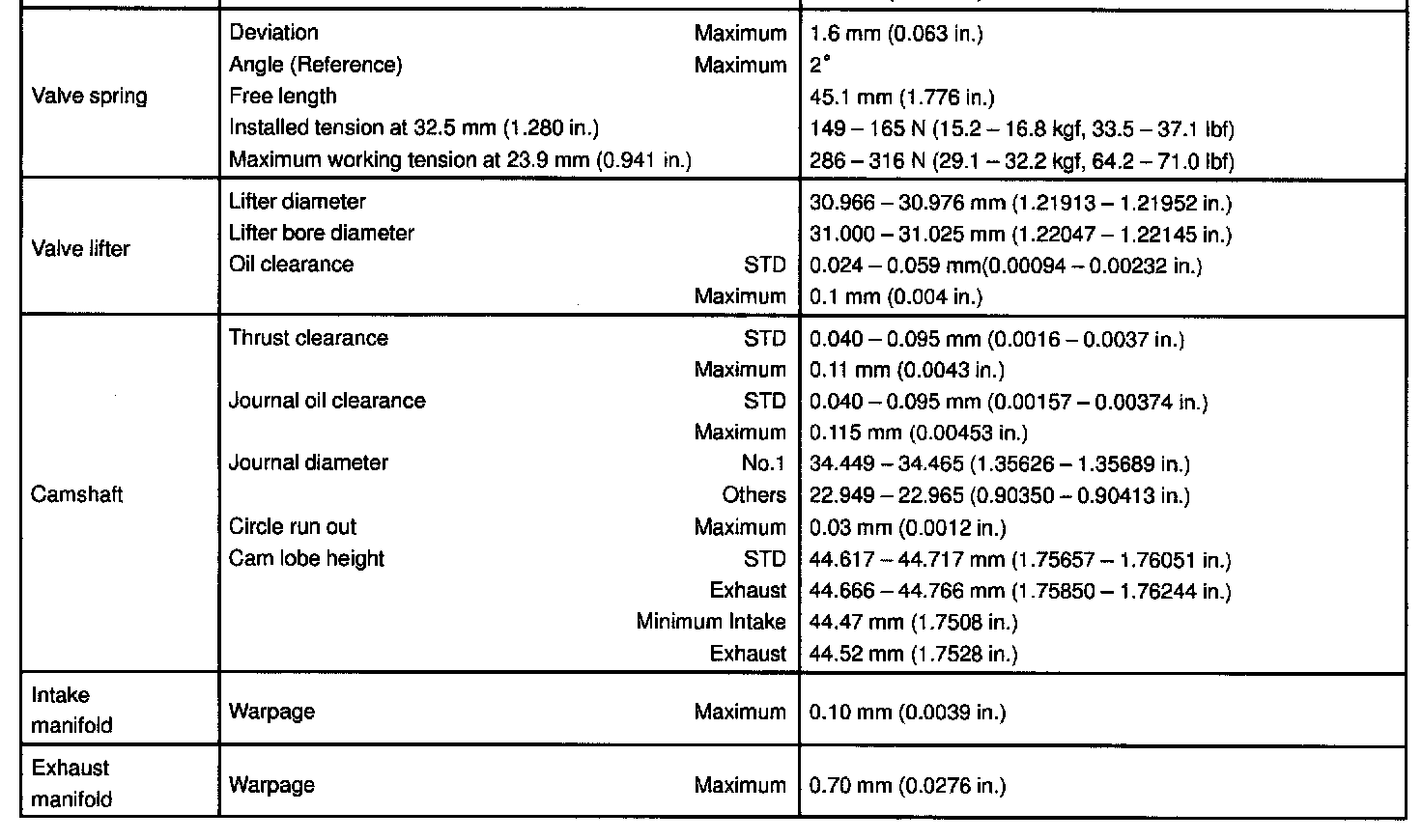

1.5L Engine Mechanical Cont.:

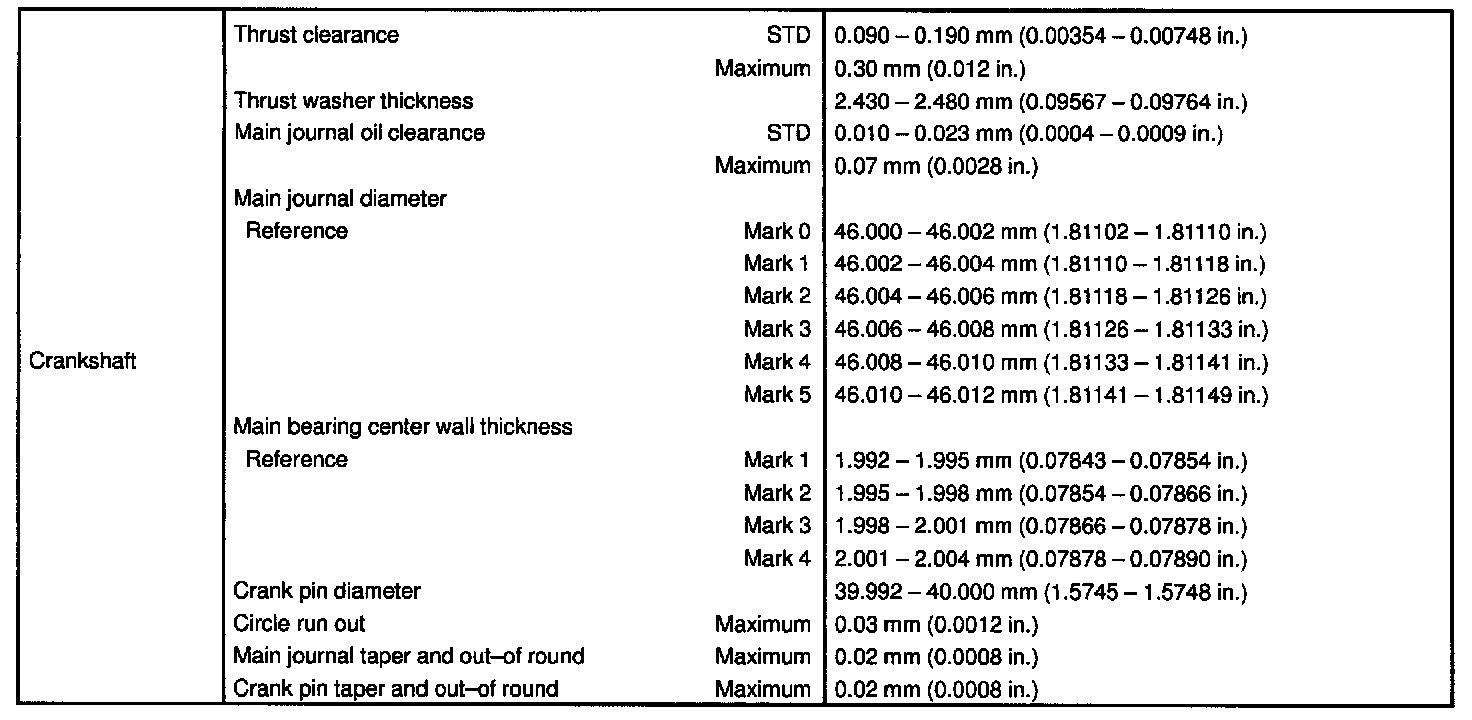

1.5L Engine Mechanical Cont.:

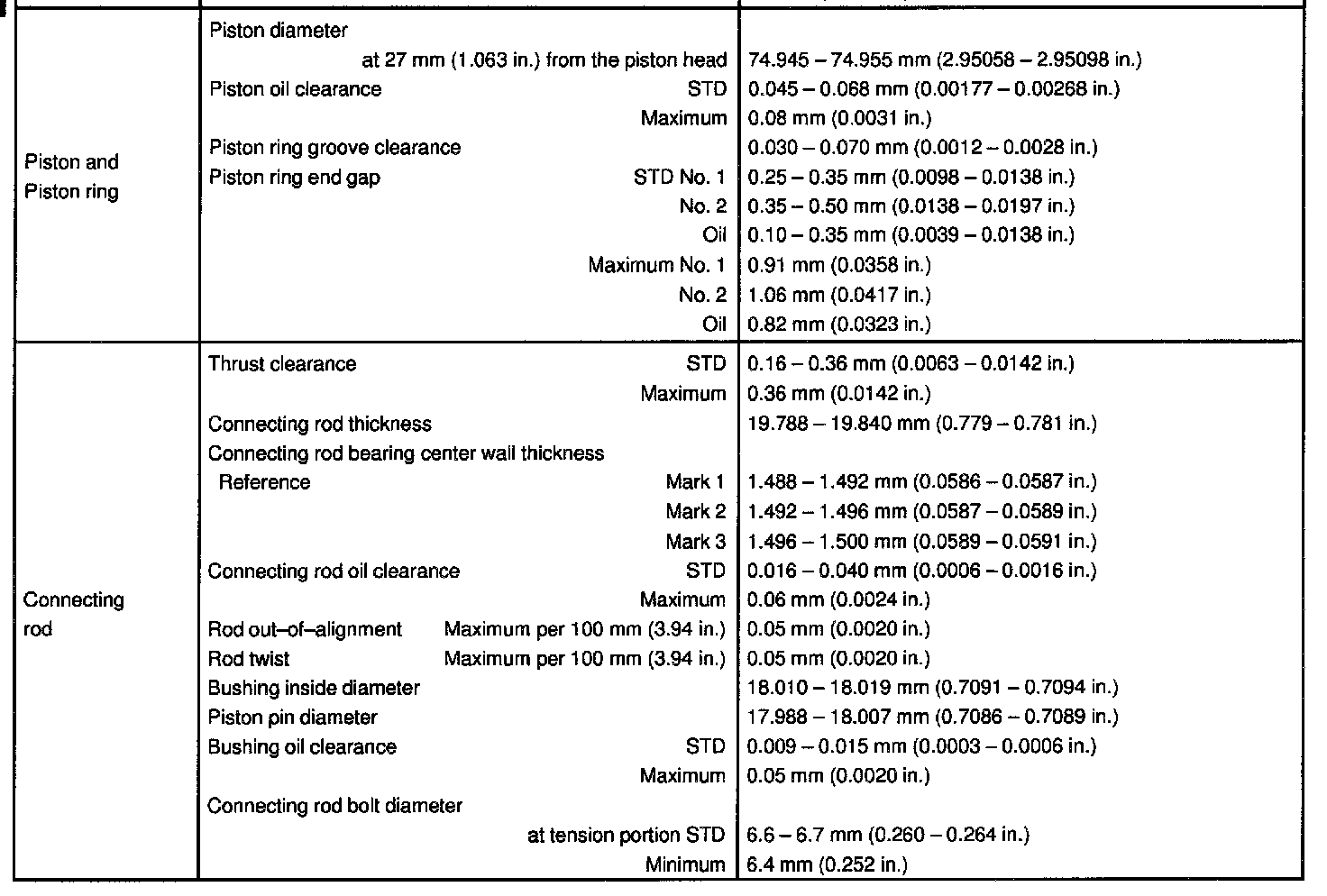

1.5L Engine Mechanical Cont.:

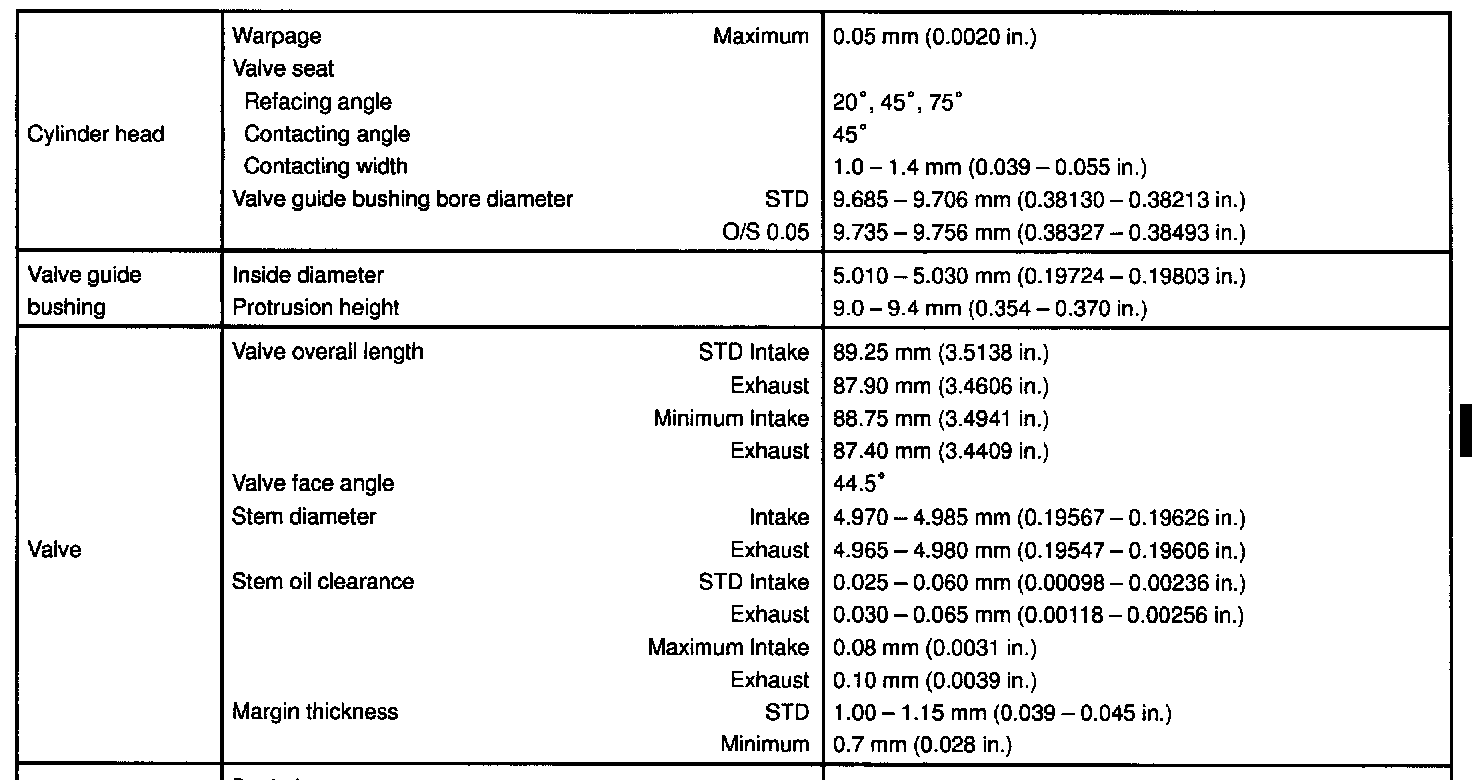

1.5L Engine Mechanical Cont.:





1.5L Engine Mechanical Cont.:
