Sensor Power Source Circuit

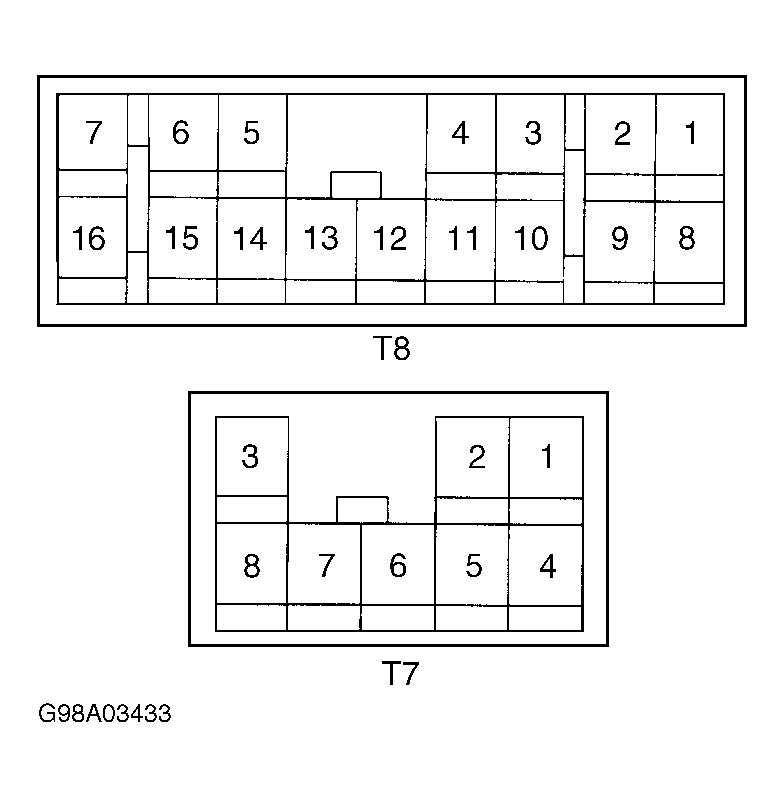

- Turn ignition switch to ON position. Remove tilt and telescopic ECU with wiring harness connectors attached. Measure voltage by backprobing between terminals No. 13 (Green/White wire) and No. 14 (Green/Yellow wire) at 16-pin ECU connector T8. See Figure. Also, measure voltage by backprobing between terminals No. 12 (Black/White wire) and No. 10 (Black/Yellow wire) at 16-pin ECU connector T8. If voltage is 4.5-5.5 volts for both measurements, go to next step. If voltage is not 4.5-5.5 volts for both measurements, go to step 3.
- Inspect wiring harness and connectors for an open between tilt and telescopic ECU, tilt motor and telescopic motor. See WIRING DIAGRAMS . Repair or replace as necessary. If wiring harness and connectors are okay, go to next test listed in SYMPTOM DIAGNOSIS table under TROUBLE SHOOTING.
- Inspect wiring harness and connectors for a short between tilt and telescopic ECU, tilt motor and telescopic motor. See WIRING DIAGRAMS . Repair or replace as necessary. If wiring harness and connectors are okay, check tilt and telescopic ECU. See TILT & TELESCOPIC ECU PIN VOLTAGE TESTS under COMPONENT TESTS. Replace tilt and telescopic ECU as necessary and retest system operation.
