Engine Compartment Components

Engine compartment components are located in the engine compartment. See Fig 1.

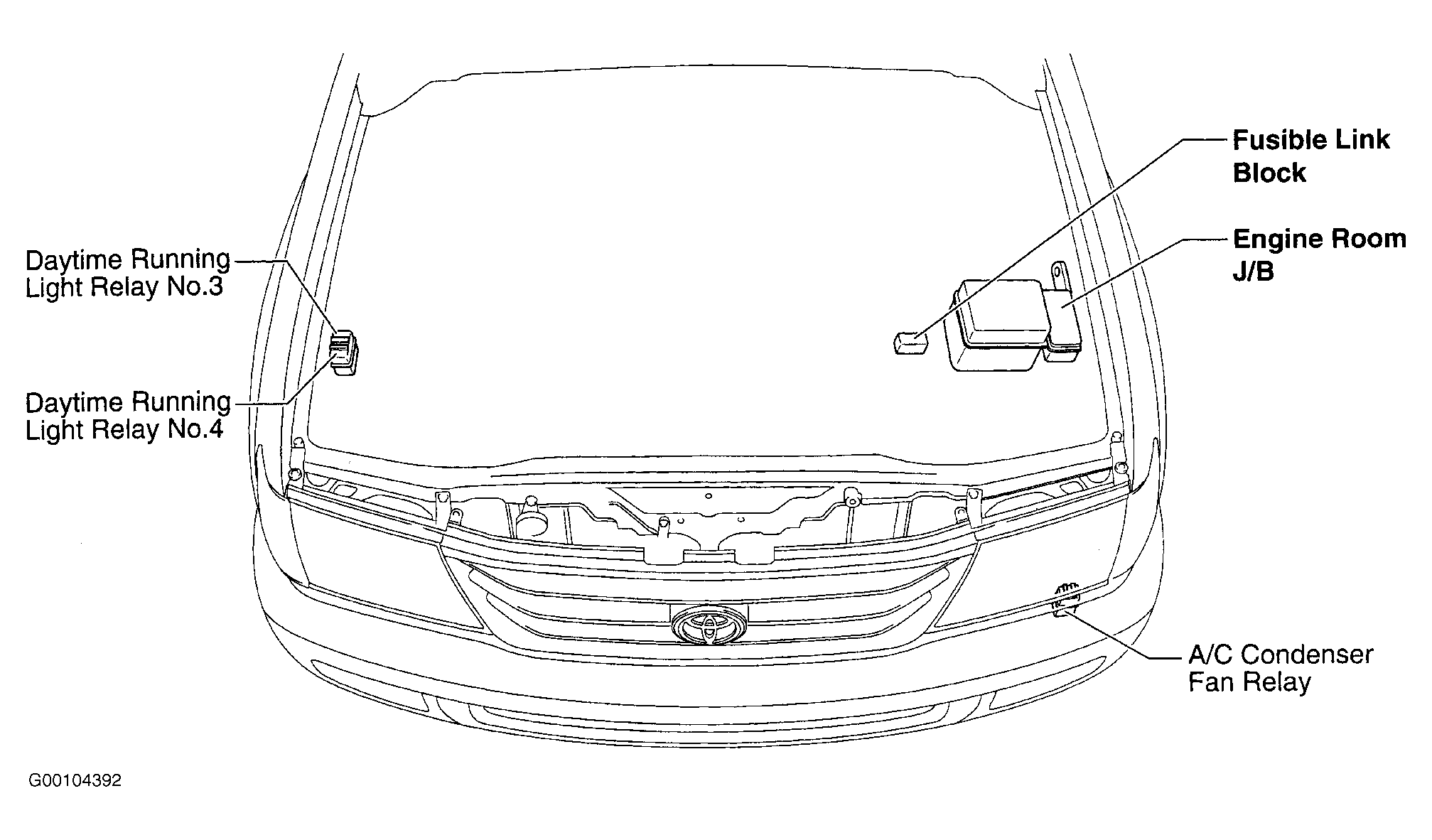

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

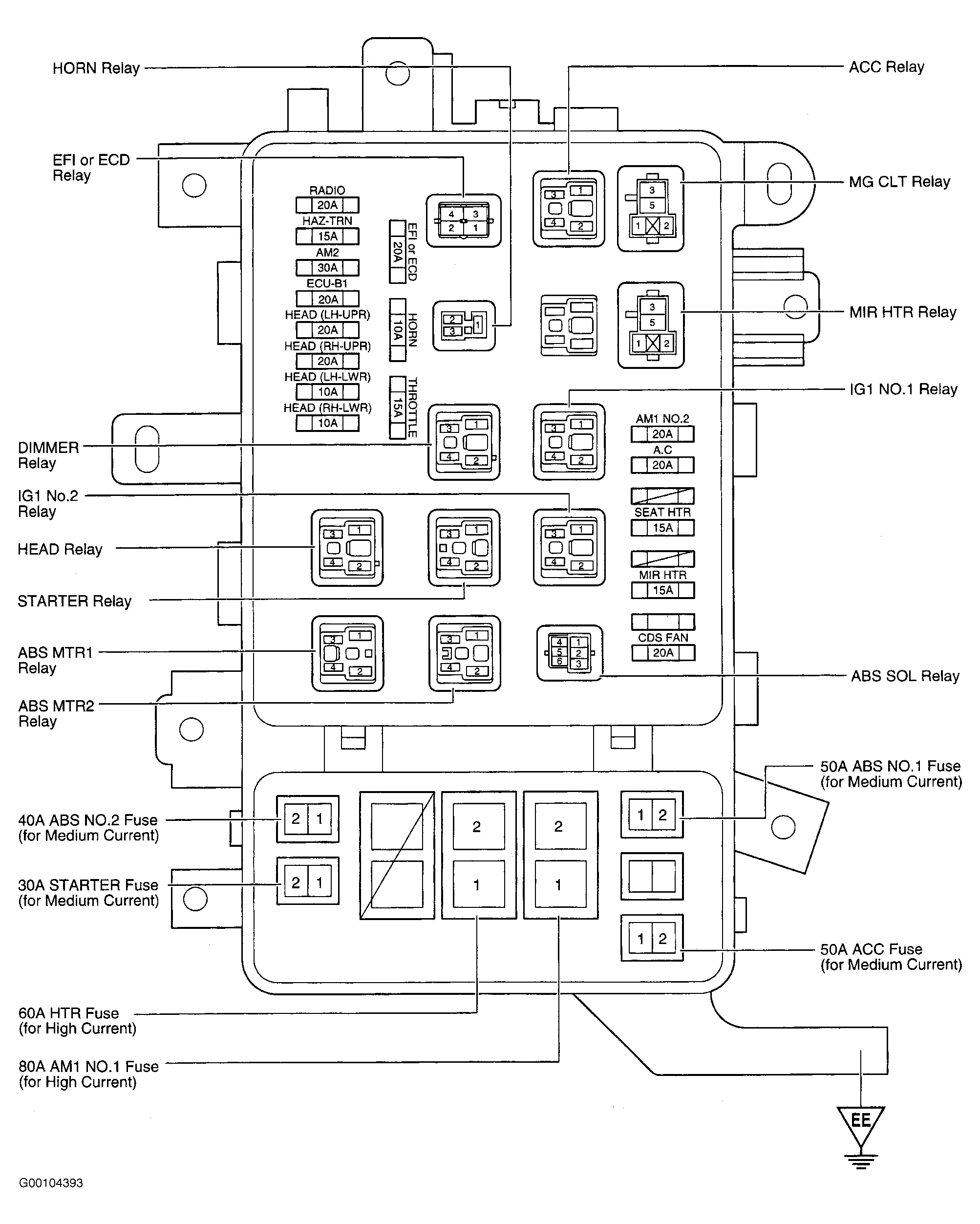

Fig 2: Identifying Engine Room J/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

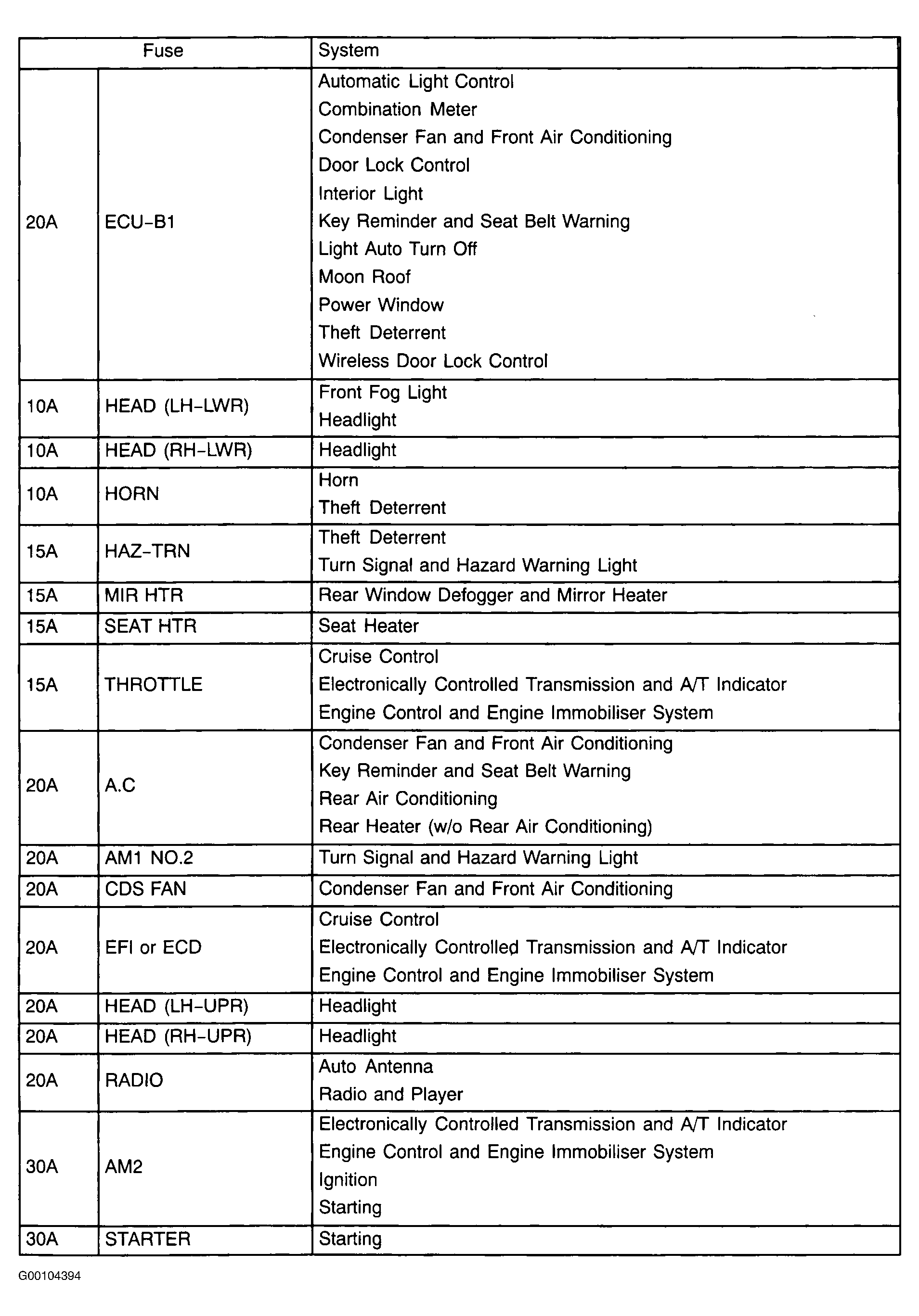

Fig 3: Engine Room J/B Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Room J/B Legend (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

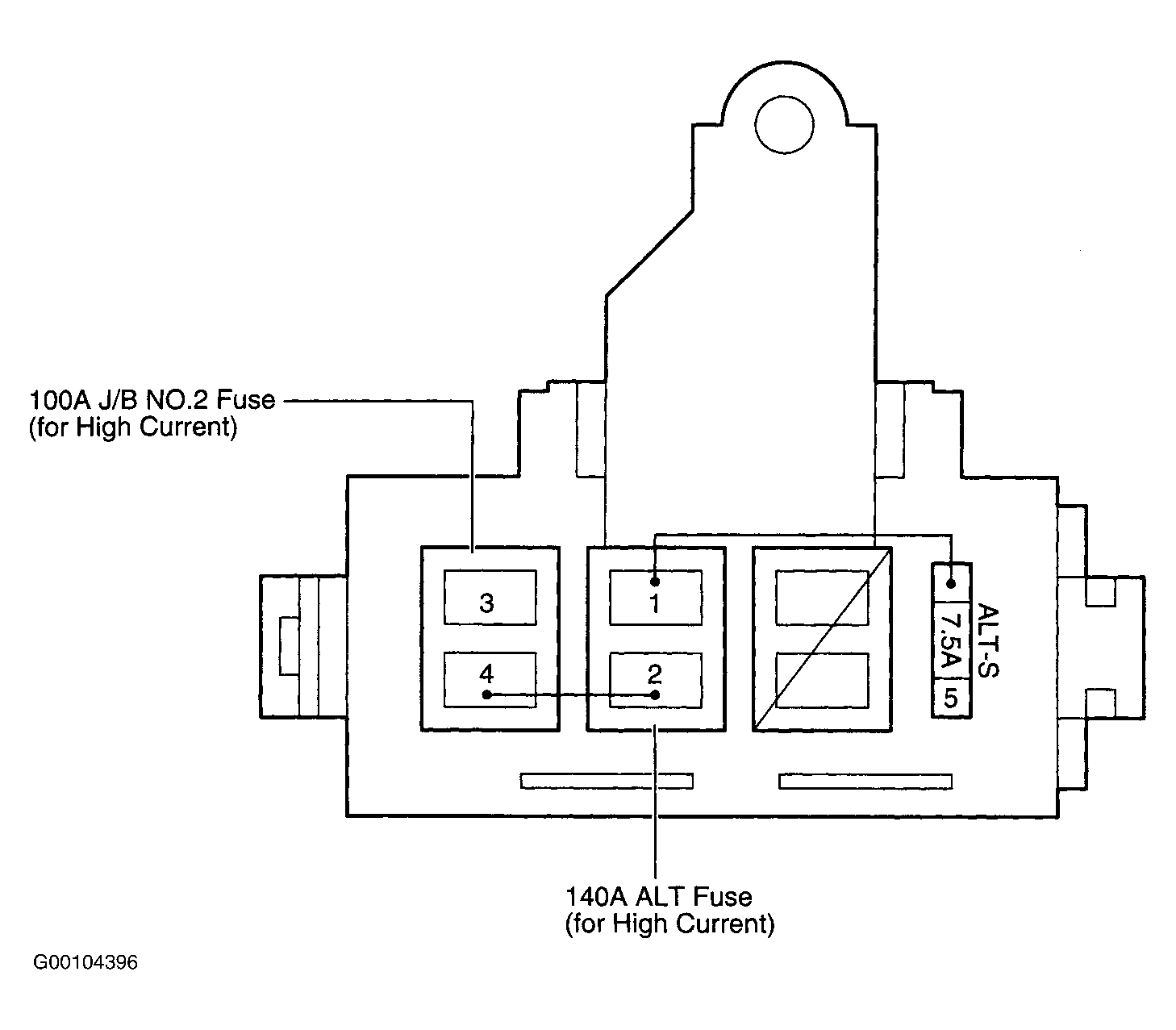

Fig 5: Identifying Fusible Link Block Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

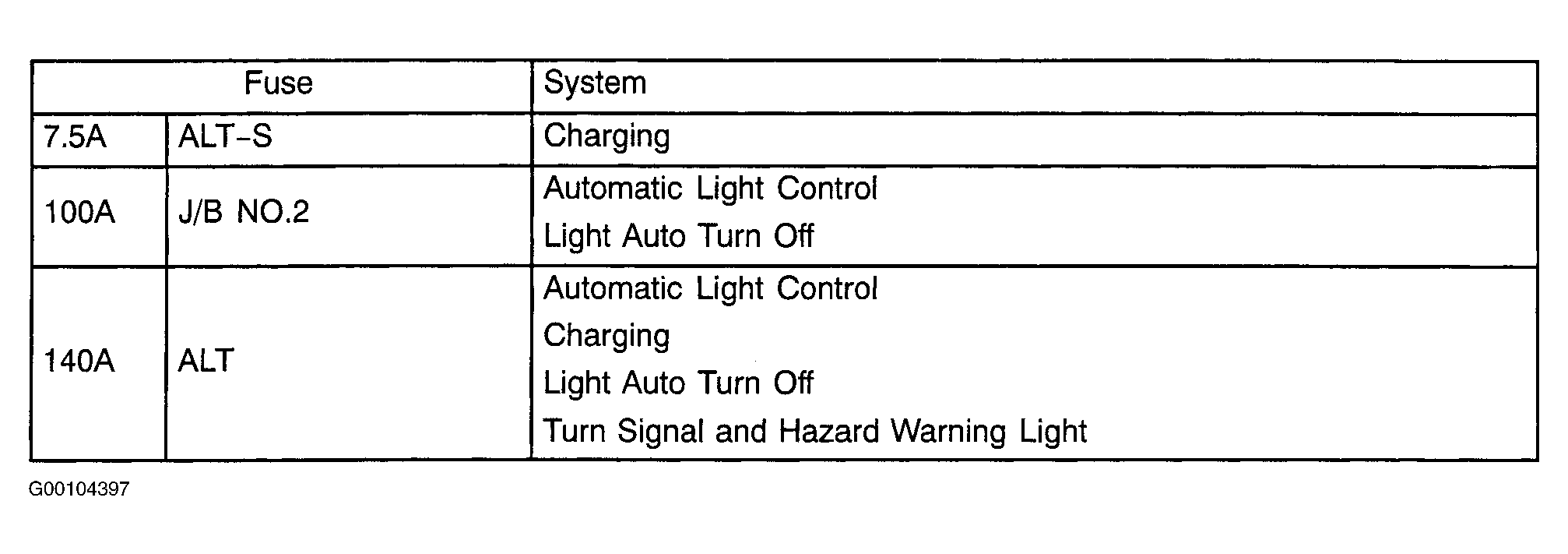

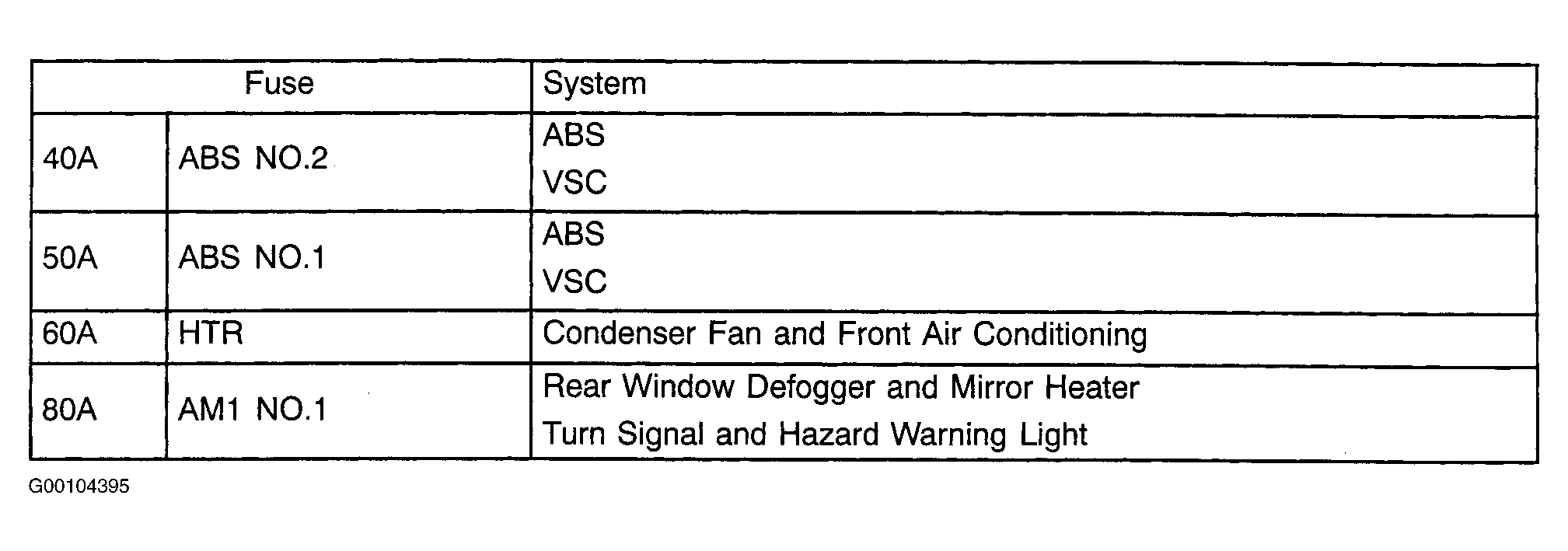

Fig 6: Fusible Link Block Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
