Exploded Views (With Tightening Specifications)

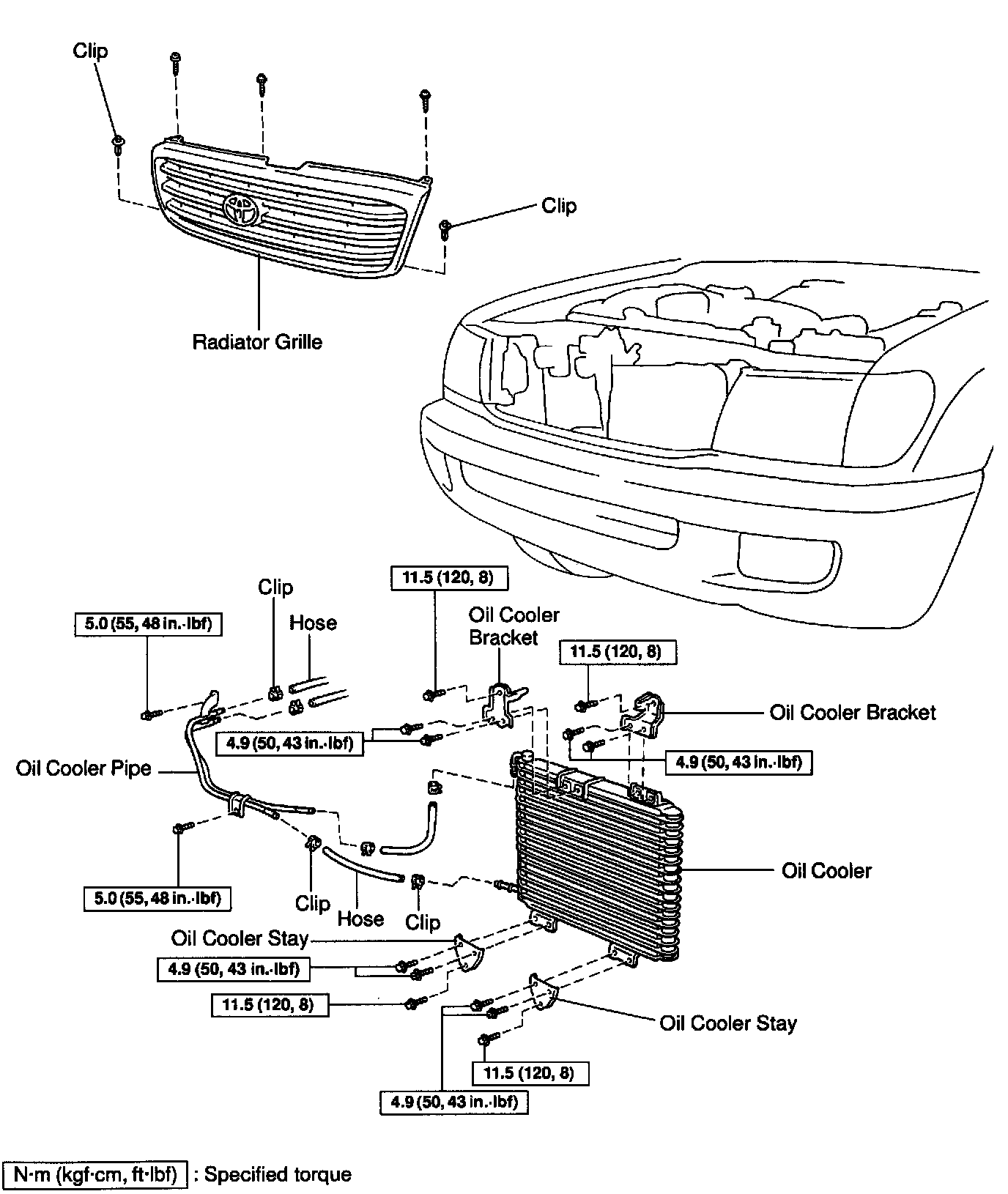

AIR COOLED OIL COOLER

FLOOR SHIFT ASSEMBLY

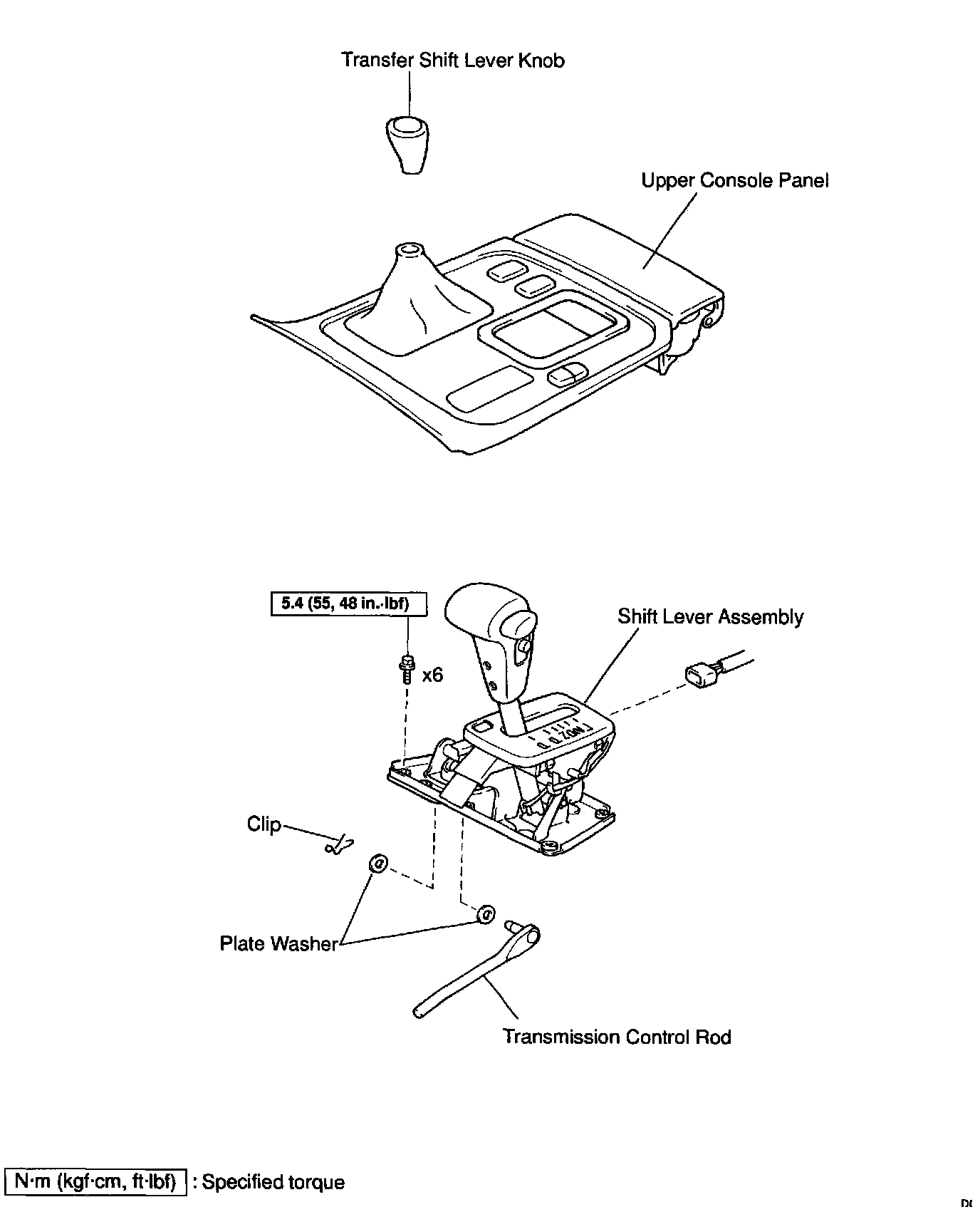

Part 1 of 2

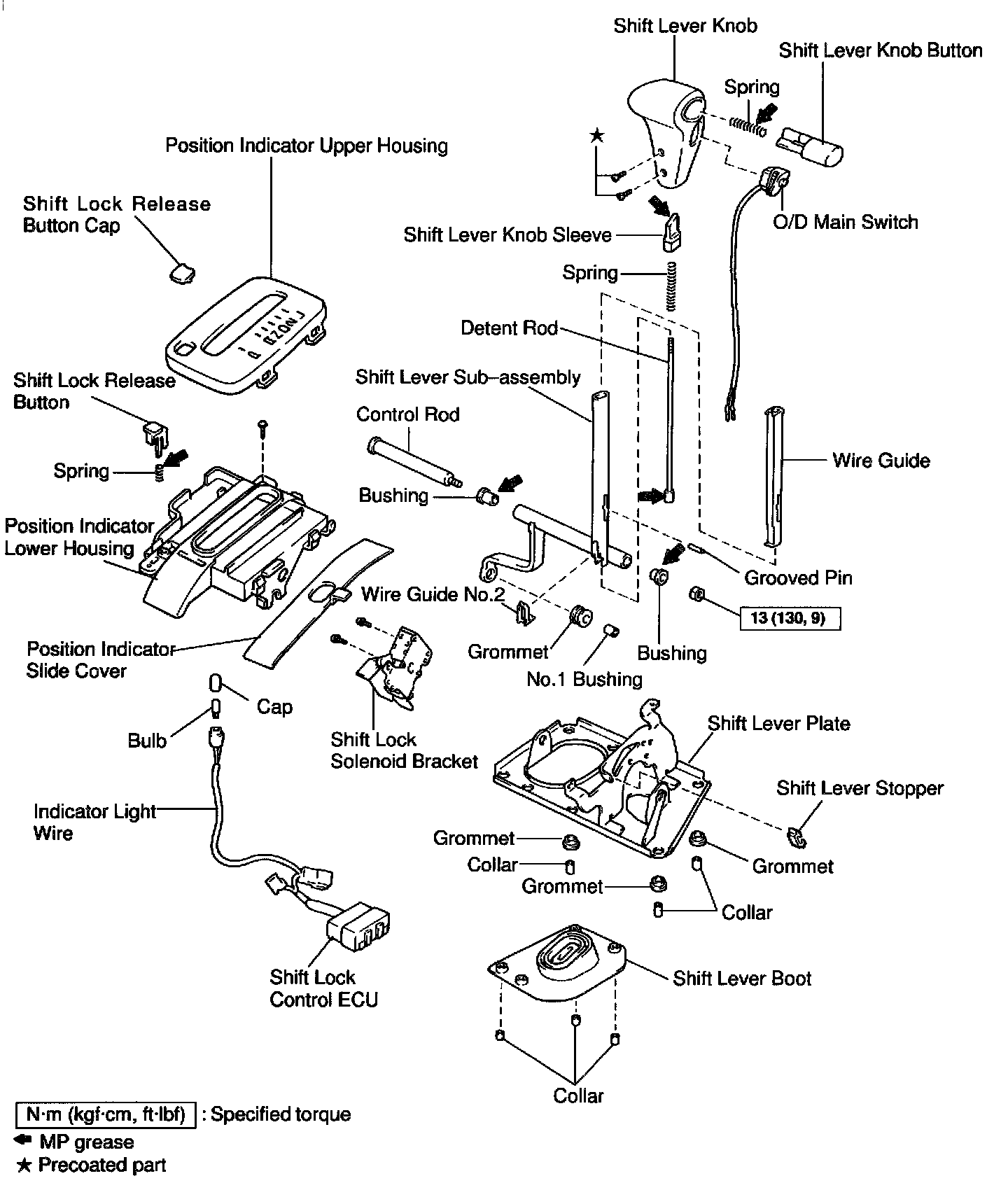

Part 2 of 2

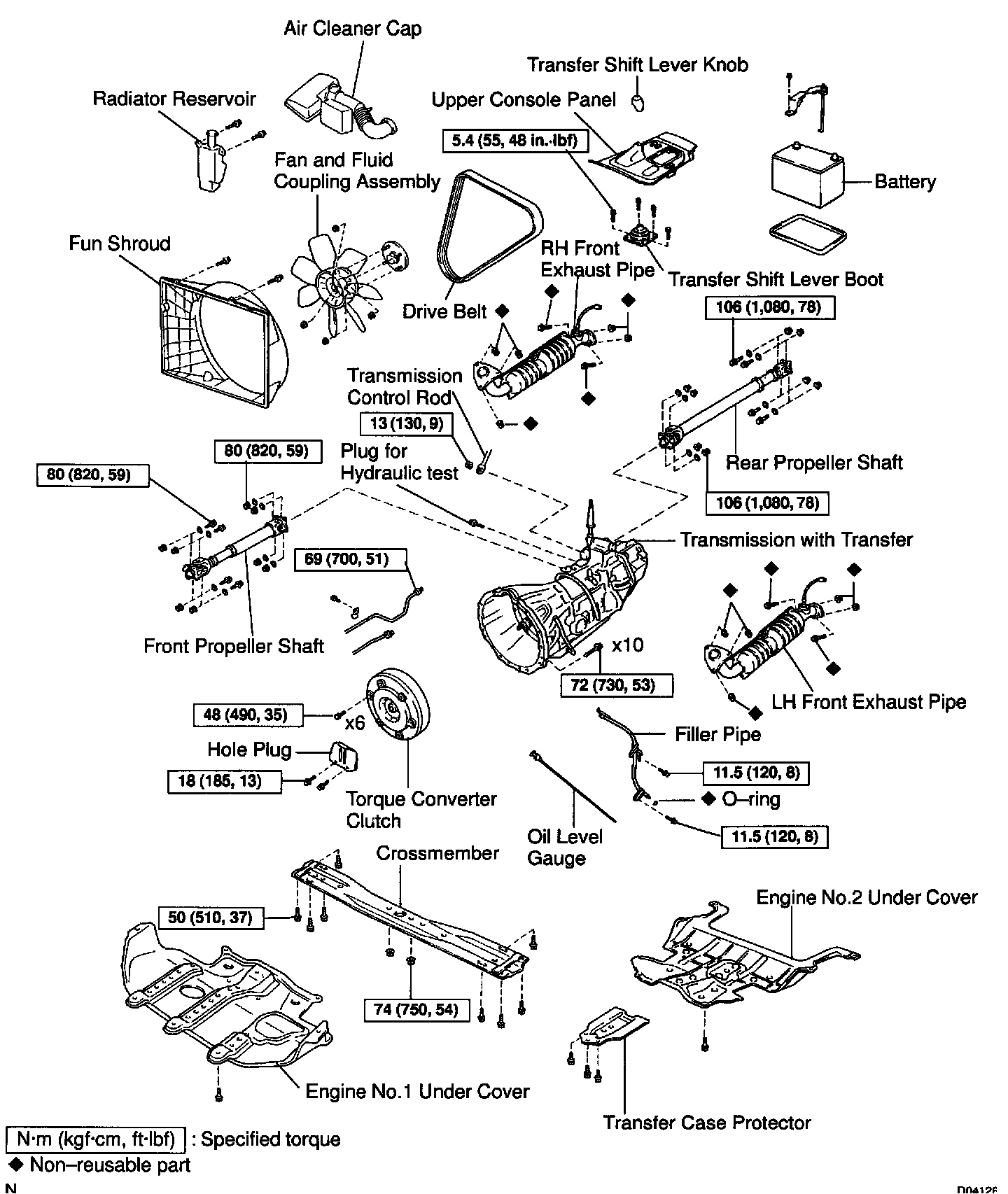

AUTOMATIC TRANSMISSION UNIT
