Engine Torque

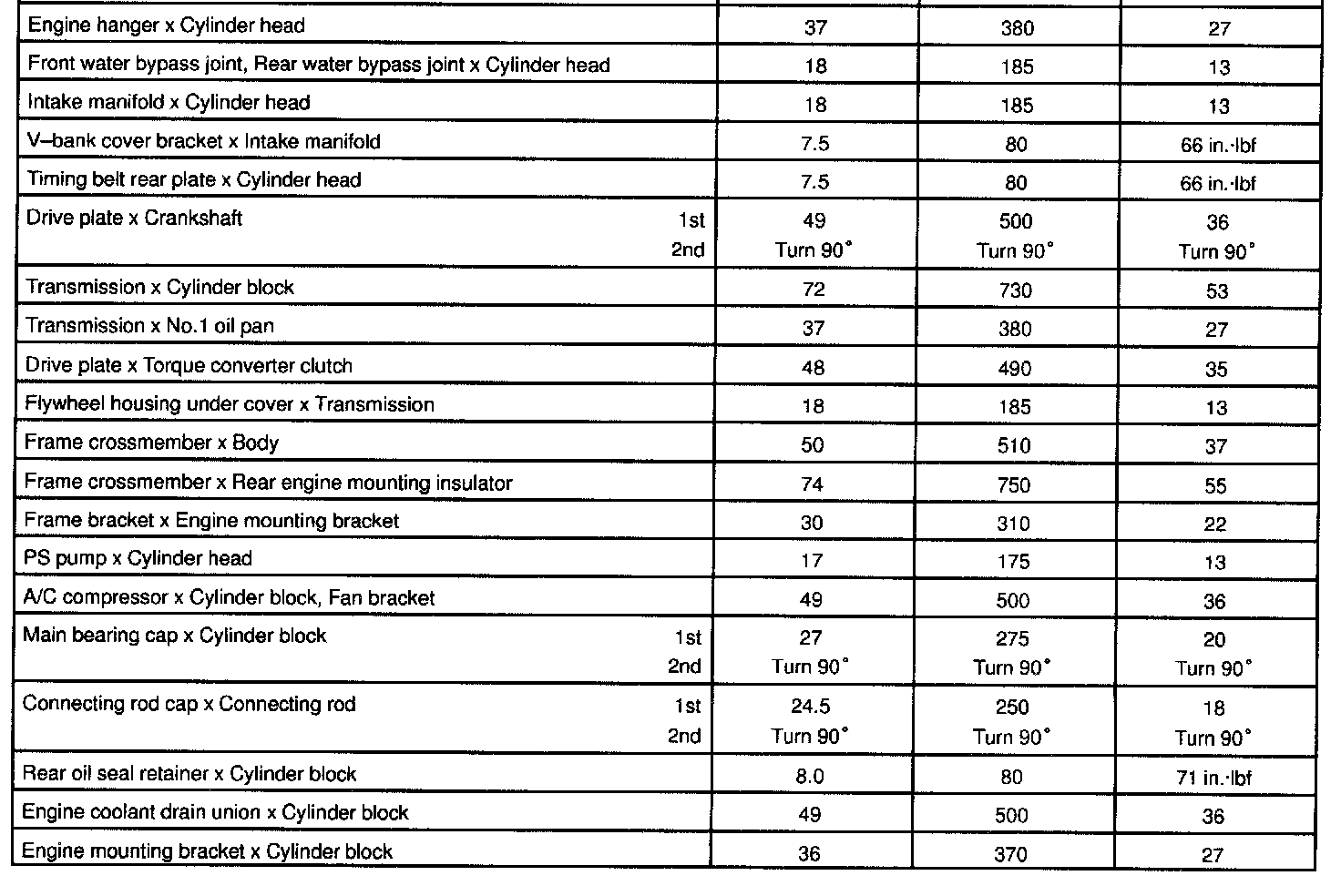

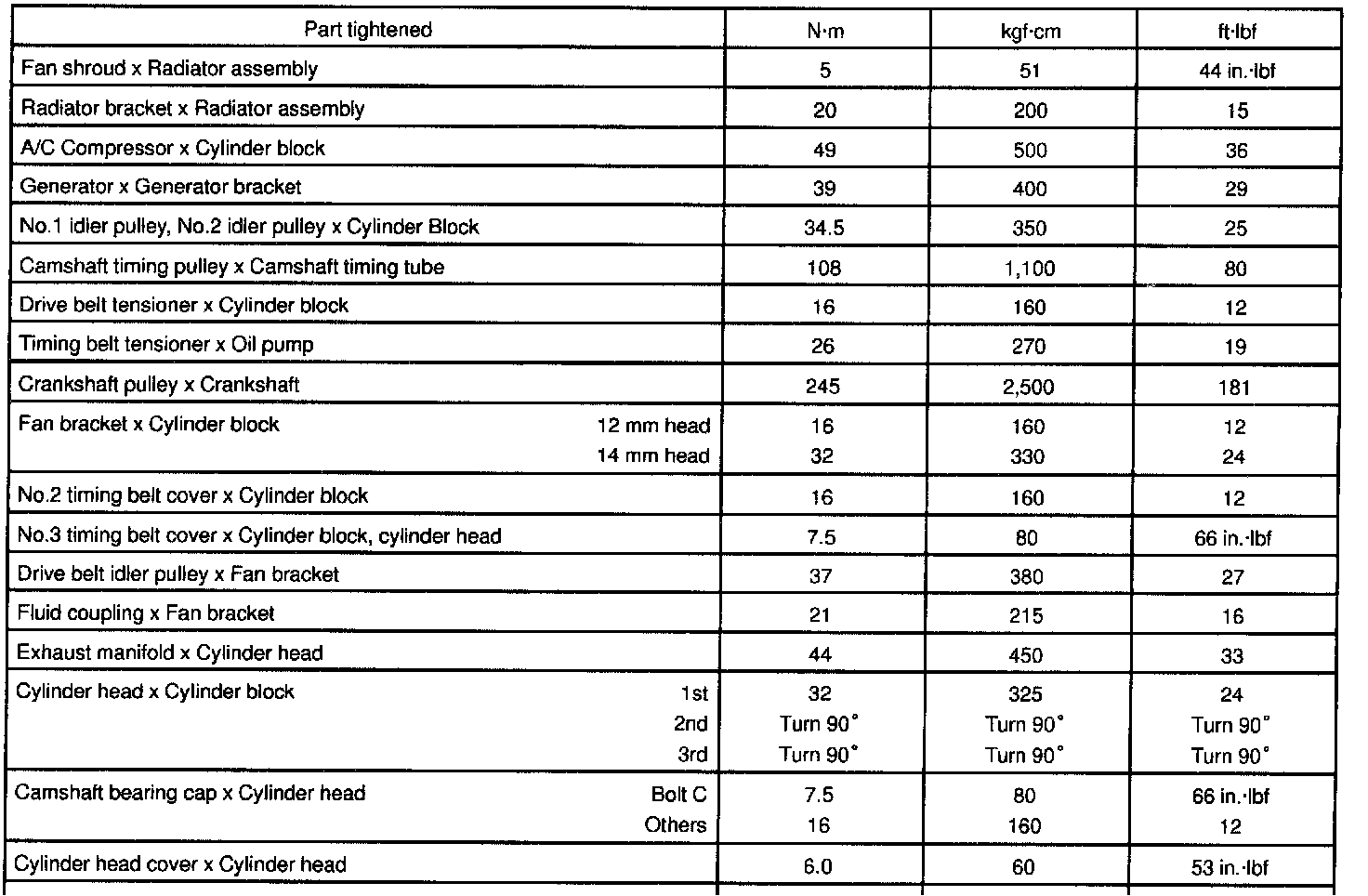

2UZ-FE Engine Mechanical Torque:




2UZ-FE Engine Torque Cont.:





2UZ-FE Engine Torque Cont.:

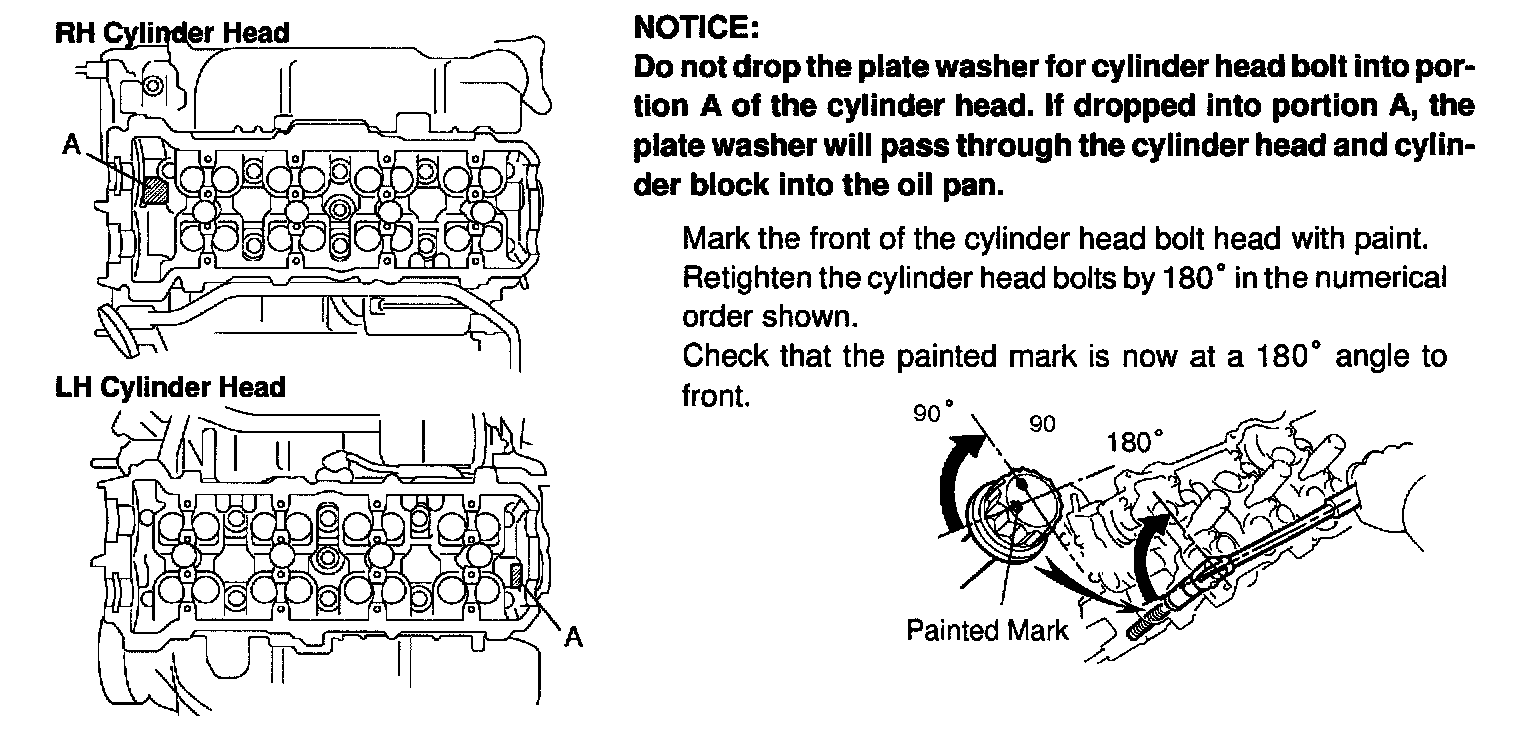

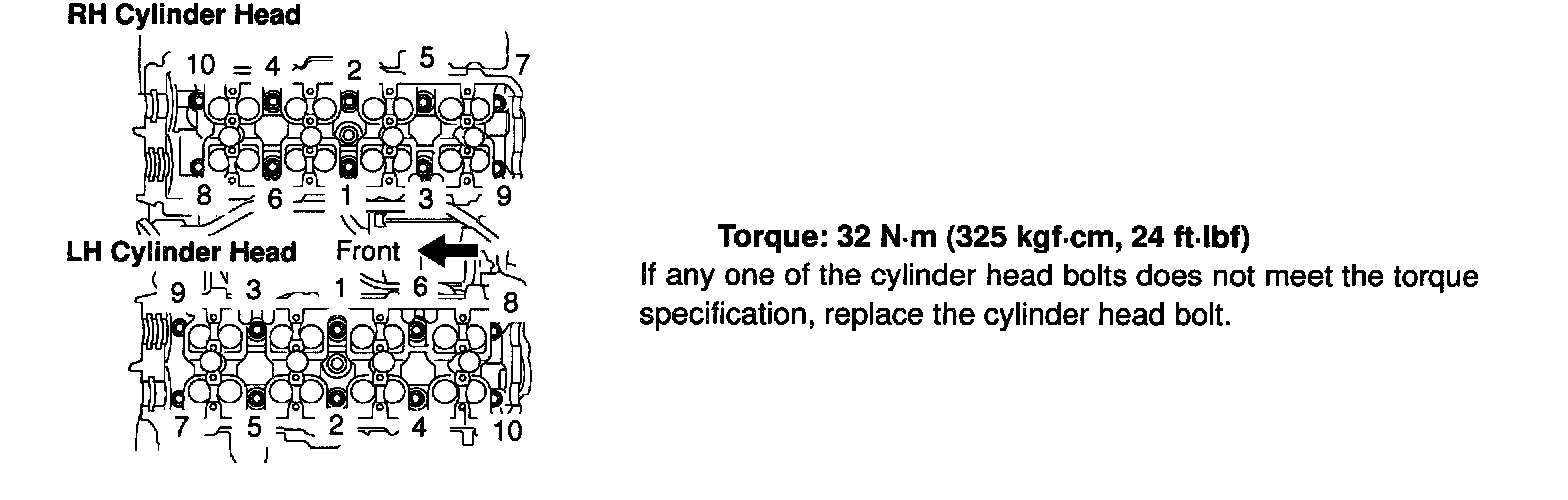

2UZ-FE Cylinder Head Torque & Sequence:




2UZ-FE Cylinder Head Torque & Sequence Cont.:
