Control Units

CONTROL UNITS

Component Component Location

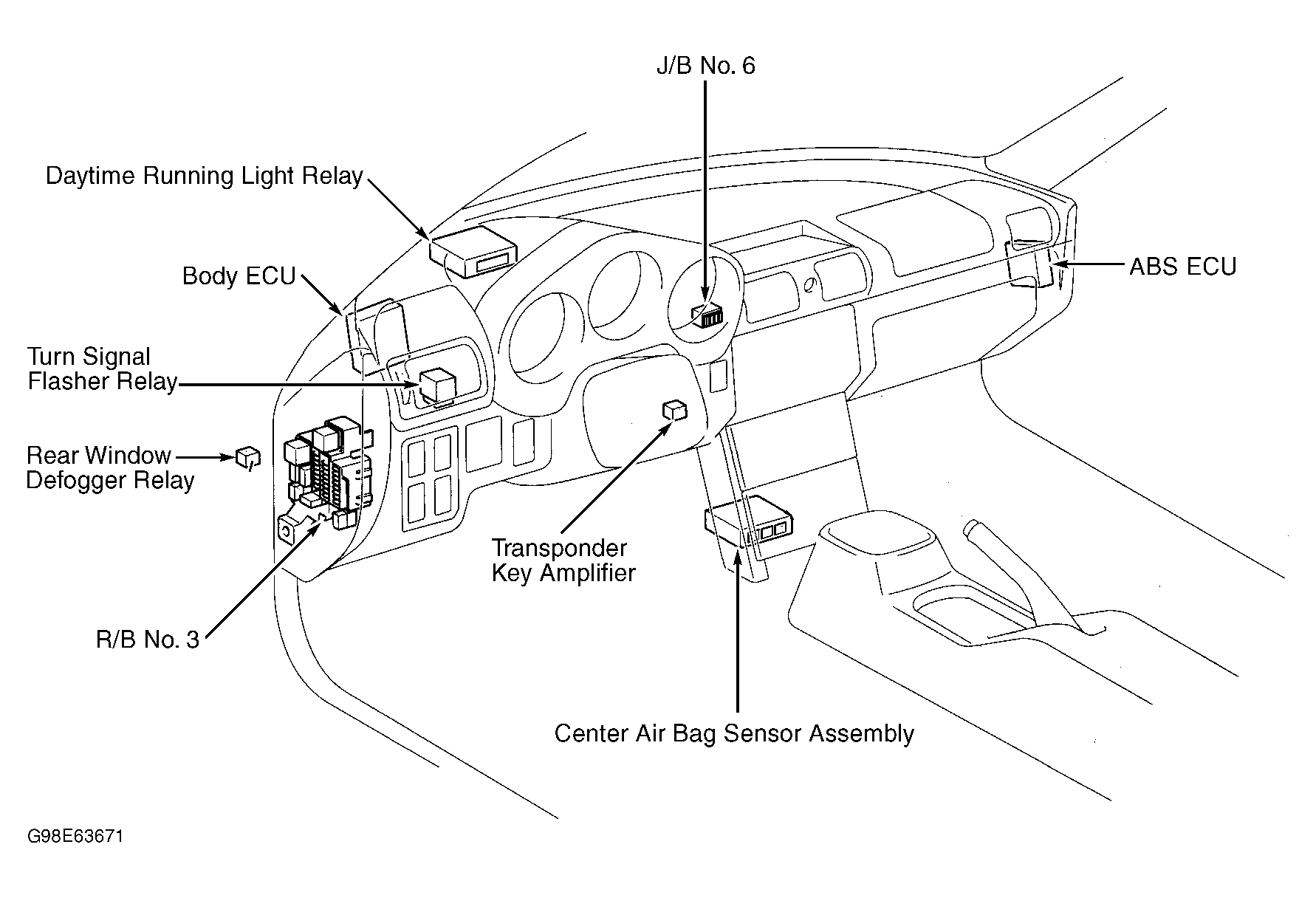

ABS ECU Behind right end of dash. See Figure.
Body ECU Behind left side of instrument cluster. See Figure.
Center Air Bag Sensor Assembly Behind center of dash, forward of gear shifter. See Figure.

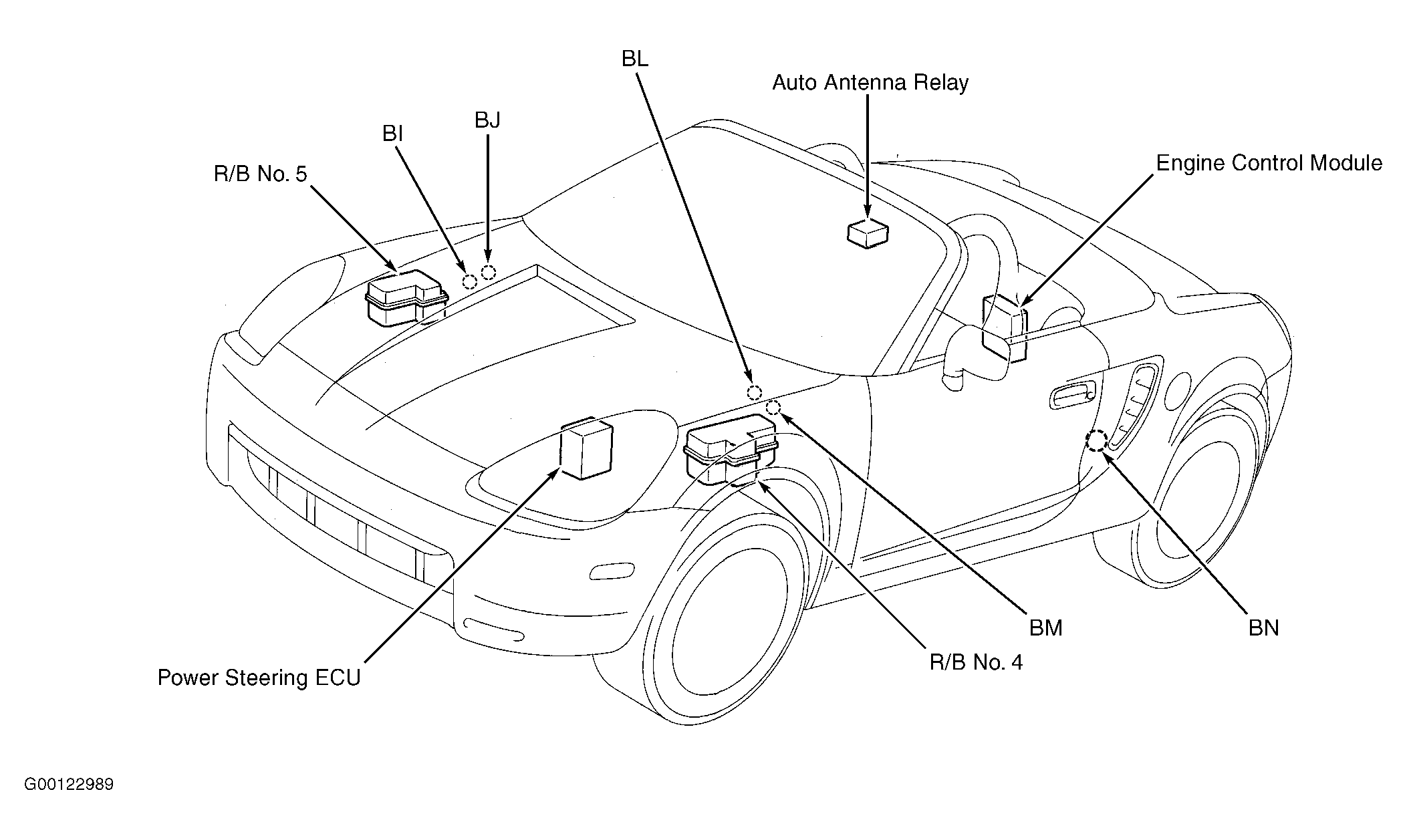

Engine Control Module Behind driver's seat, on panel. See Figure.
Power Steering ECU On left side of front compartment. See Figure.
