Section 28 (Engine Coolant): Replacement

WARNING: This page is about a different car, the 2001 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator are still hot, as fluid and steam can be blown out under pressure.

Drain Engine Coolant
1. Remove the radiator cap.
2. Loosen the radiator drain plug (on the left side of the radiator lower tank) and engine drain plug, and drain the coolant.

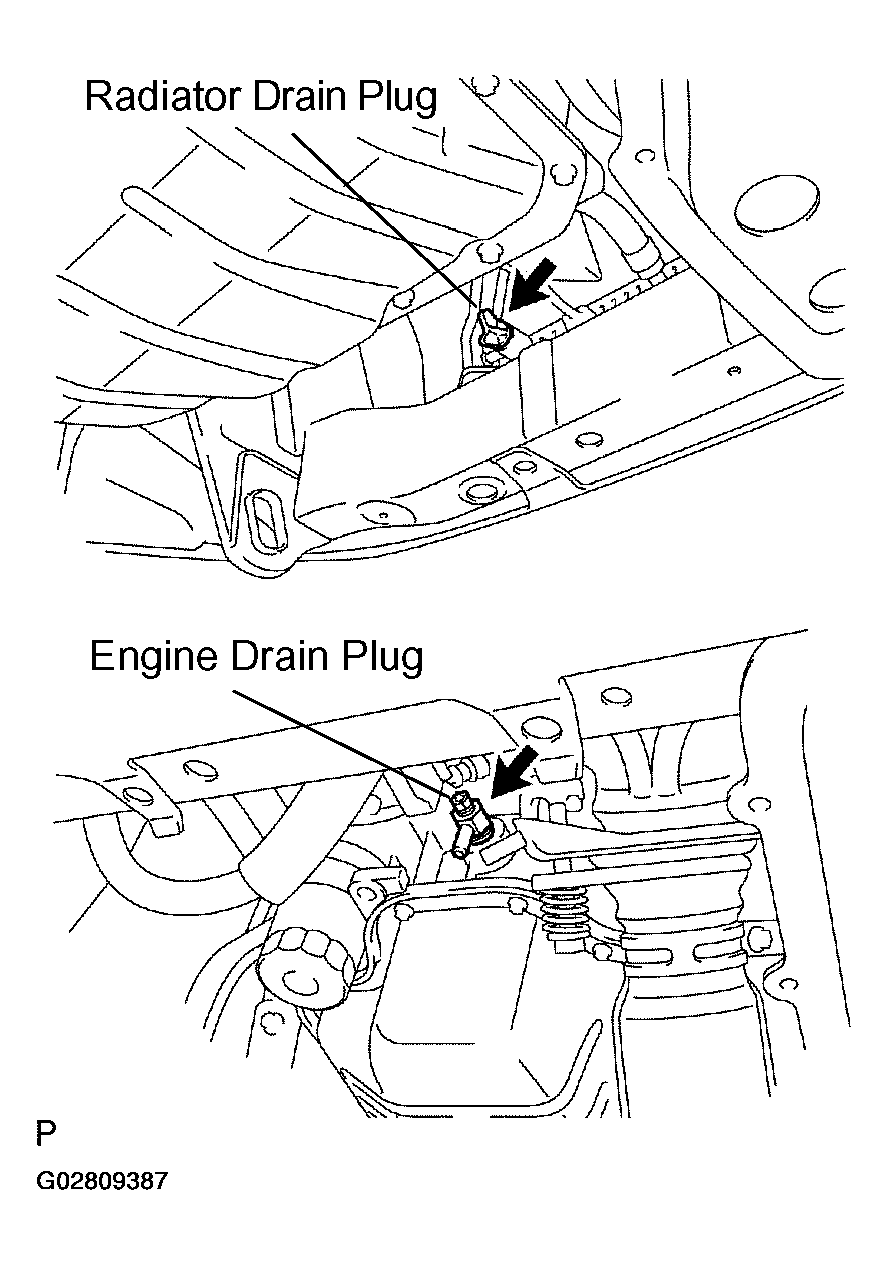

  Fig 1: Locating Radiator And Engine Drain Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Close the drain plugs.
  Torque: 5 N.m (50 kgf.cm, 43 in.lbf) for engine

Fill Engine Coolant

Slowly fill the system with coolant.

Use of improper coolants may damage engine cooling system.
Use Toyota Long Life Coolant or equivalent and mix it with plan water according to the manufacturer's directions.
Using of coolant which includes more than 50 % [freezing protection down to -35°C (-31°F)] or 60 % [freezing protection down to -50°C (-58°F)] of ethylene-glycol is recommended but not more than 70 %.

NOTE:

Do not use an alcohol type coolant or plain water alone.
The coolant should be mixed with plain water (preferably demineralized water or distilled water).

Capacity (w/ Heater):

Specification Of Coolant Capacity

Transmission	Capacity
M/T	6.3 liters (6.7 US qts, 5.6 Imp. qts)
A/T	6.2 liters (6.6 US qts, 5.6 Imp. qts)

Reinstall the radiator cap.
Start the engine, and bleed the cooling system.
Refill the radiator reservoir with coolant until it reaches the "F" line.

Check Engine Coolant For Leaks
Check Engine Coolant Specific Gravity Correctly
