Back Door Control Switch Circuit: Wiring Diagram

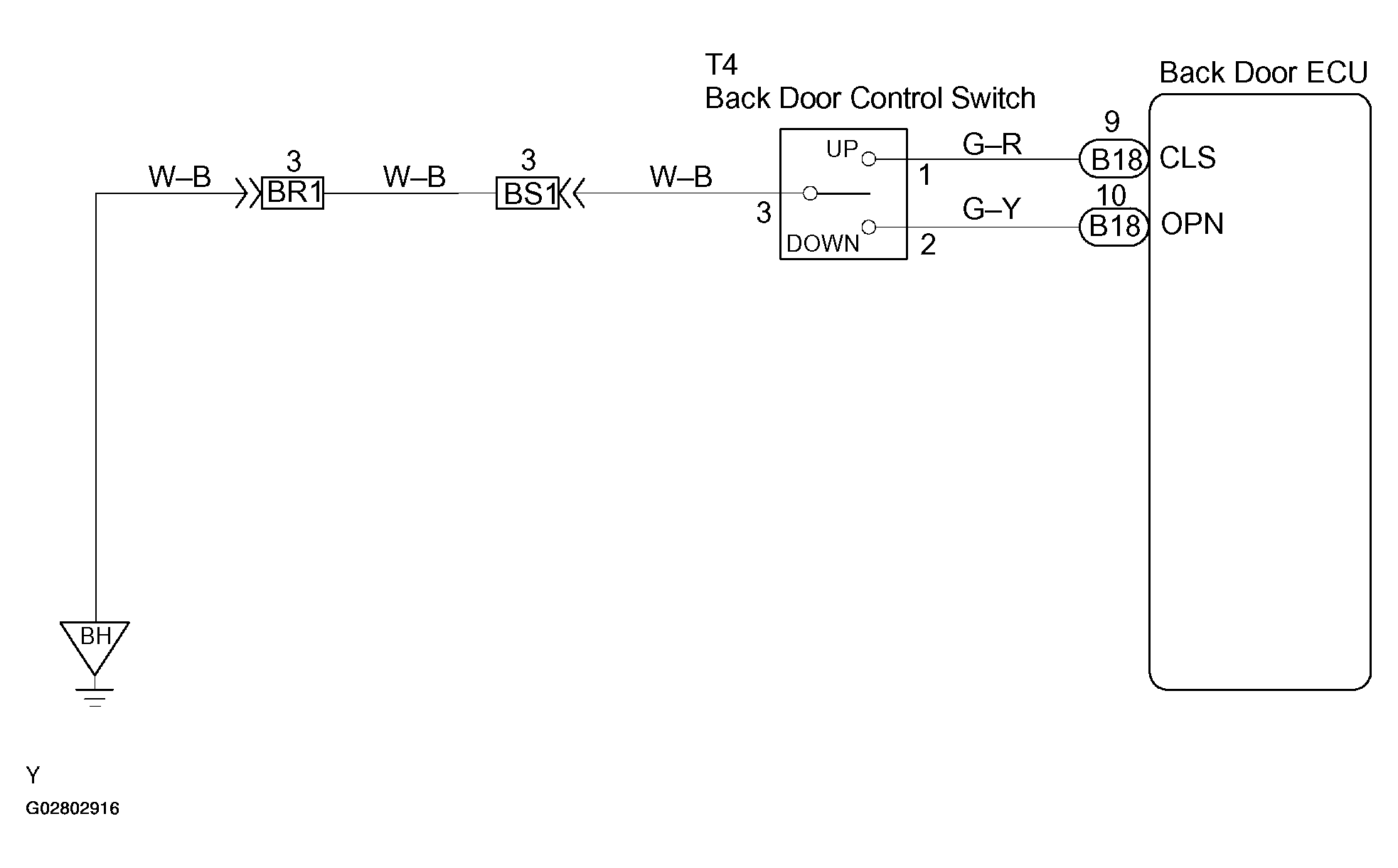

Fig 1: Back Door Control Switch Circuit
G02802916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
