Window Limit Switch Circuit: Wiring Diagram

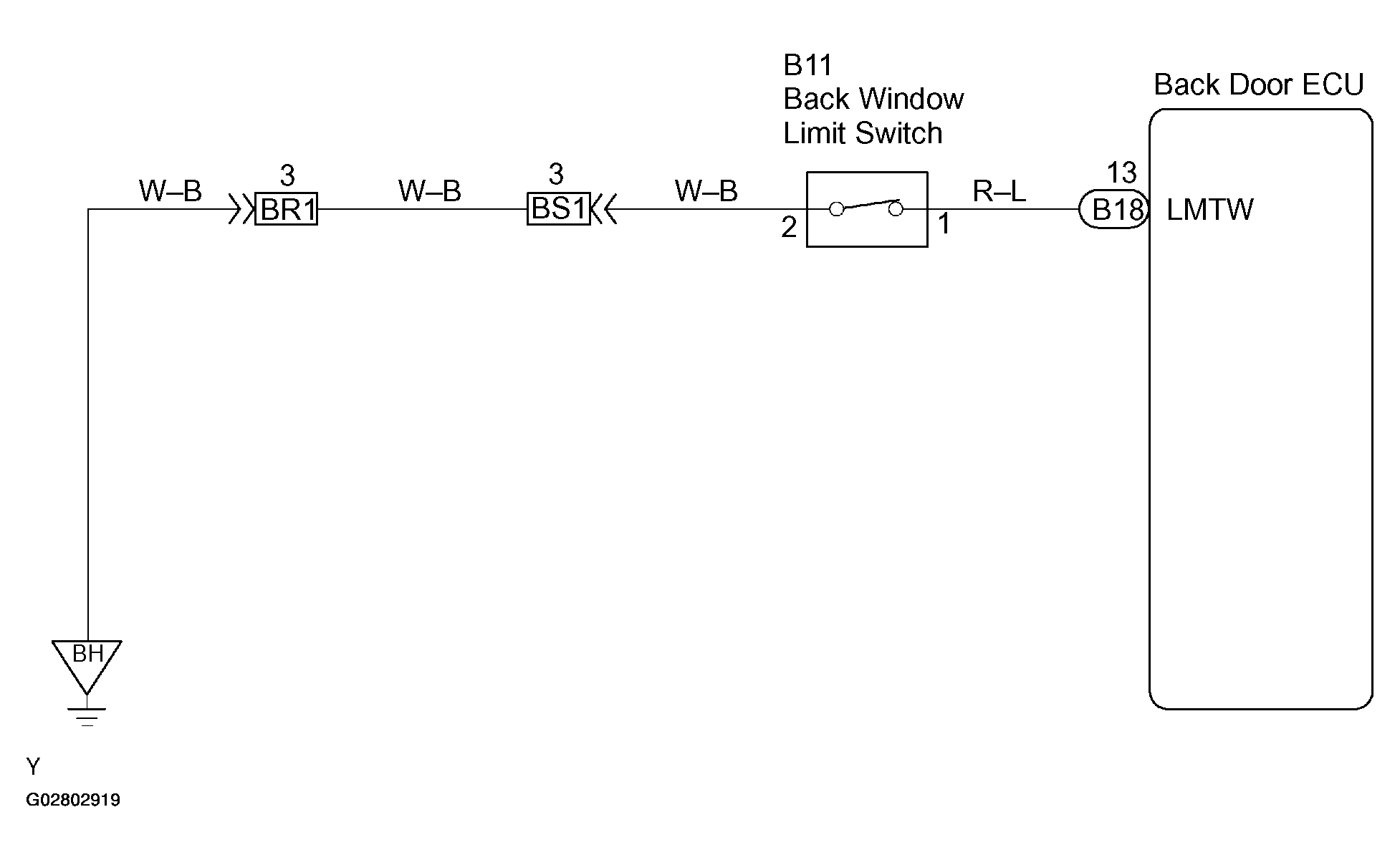

Fig 1: Window Limit Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
