Terminals Of Ecu

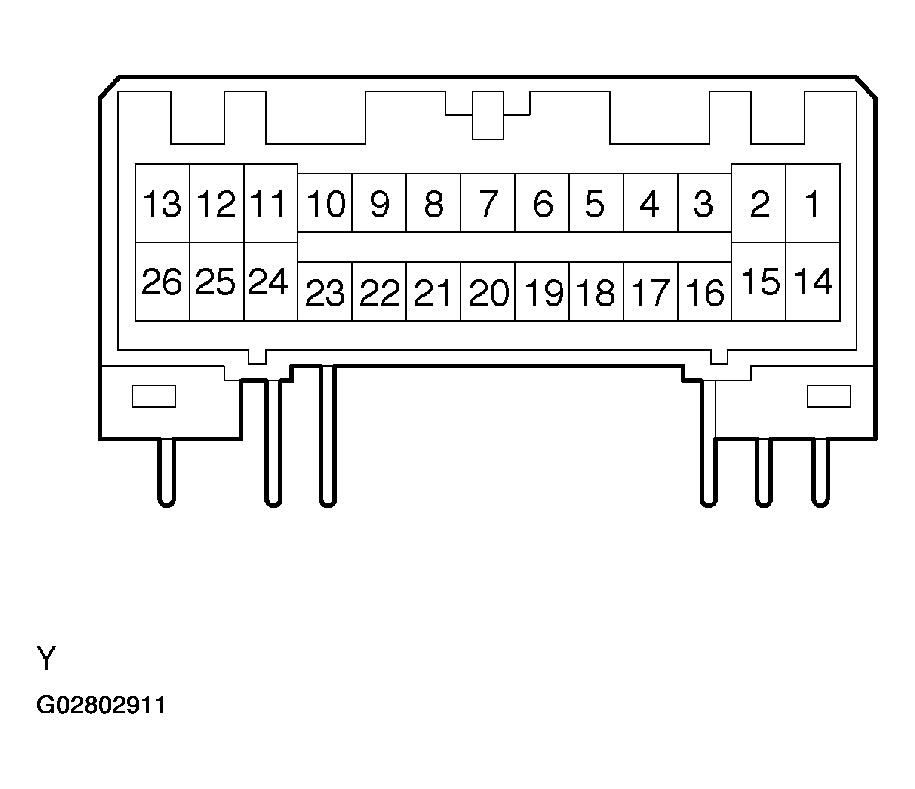

Fig 1: Identifying Back Door Control System ECU Terminals
G02802911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

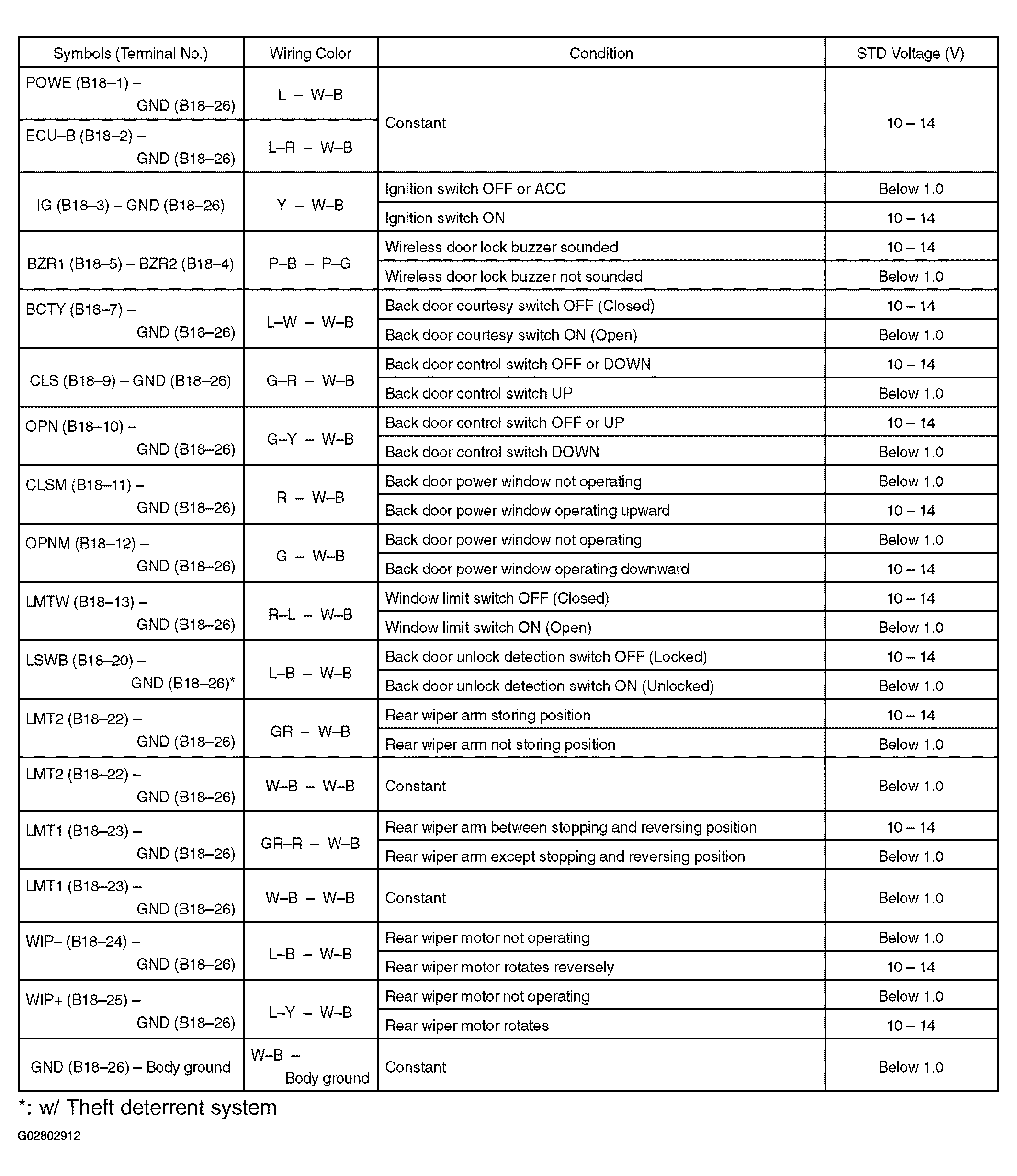

Fig 2: ECU Terminals Condition chart
G02802912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
