Testing Procedure

For wiring diagram, see Figure. For testing procedures, see Fig 1.

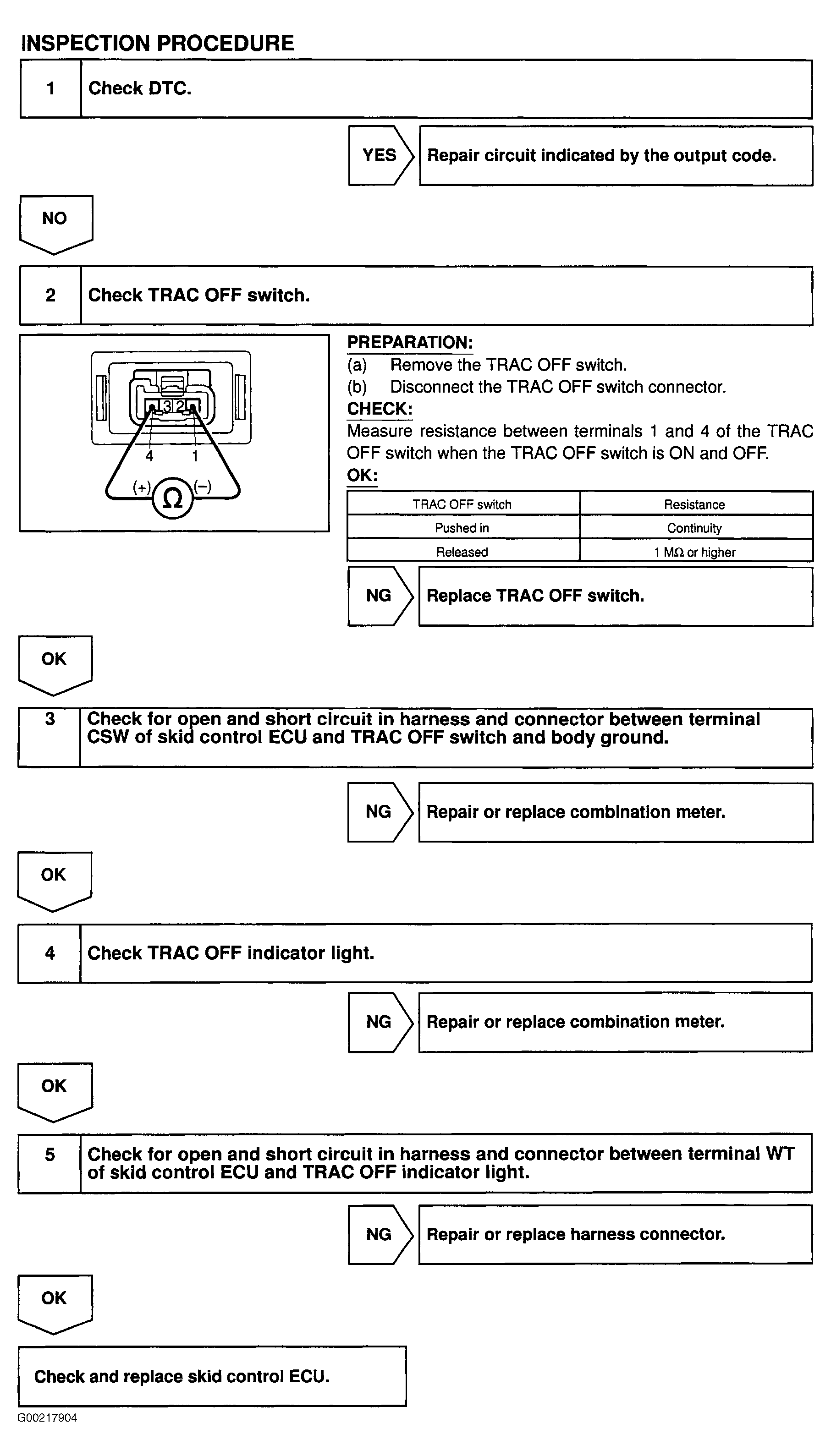

Fig 1: Testing Procedures TRAC OFF Indicator (2WD)
G00217904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
