Cooling System (Mechanical): Radiator: Disassembly

Remove No. 1 Fan Shroud
Remove the 4 bolts and No.1 fan shroud.
Remove Radiator Supports
Remove Drain Plug
Assemble SST
SST 09230-01010

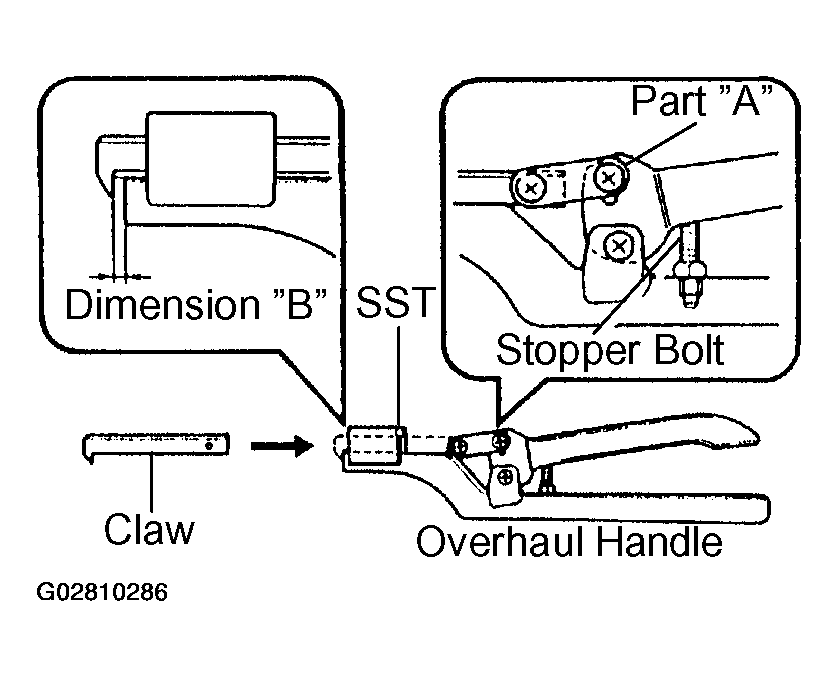

Fig 1: Assembling SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the claw to the overhaul handle, inserting it in the hole in part "A" as shown in Fig 1.
2. While gripping the handle, adjust the stopper bolt so that dimension "B" shown in Fig 1 is 0.2 - 0.3 mm (0.008 - 0.012 in.).
NOTE: If this adjustment is not done, the claw may be damaged.
Uncaulk Lock Plates
Using SST to release the caulking, squeeze the handle until stopped by the stopper bolt.

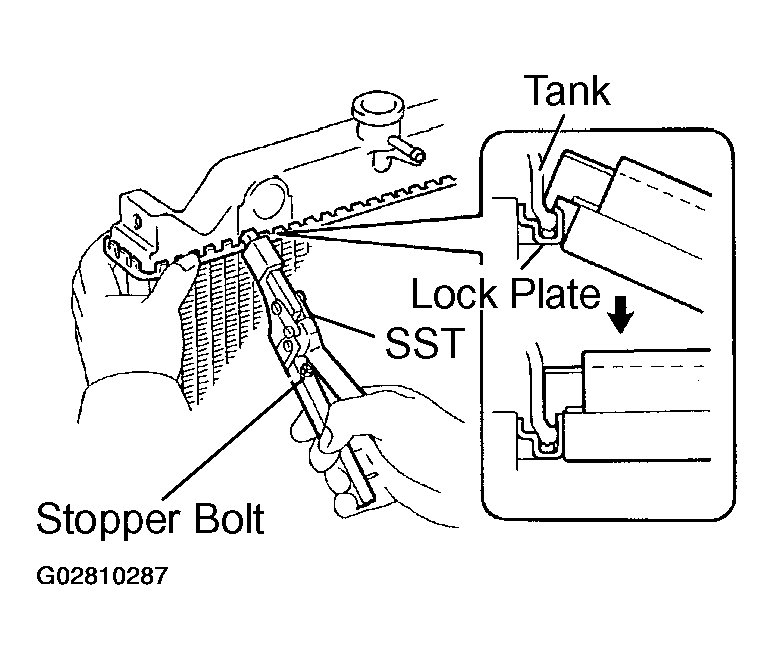

Fig 2: Uncaulking Lock Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09230-01010
Remove Tanks And O-Rings
1. Lightly tap the radiator port (inlet or outlet) with a soft-faced hammer, and remove the tank.
2. Remove the O-ring.
