Tilt Steering Column: Components

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

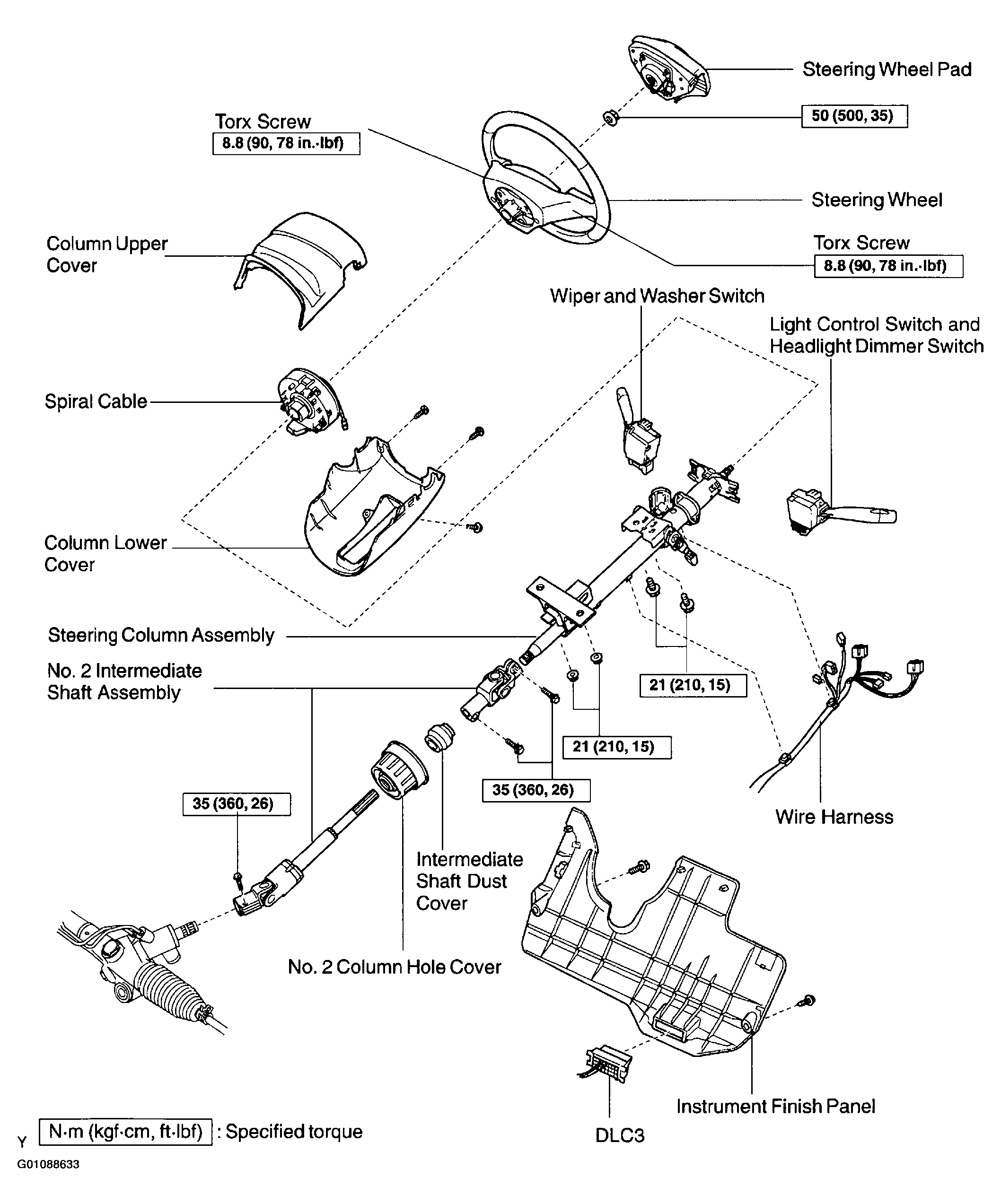

Fig 1: Identifying Tilt Steering Column Components
G01088633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

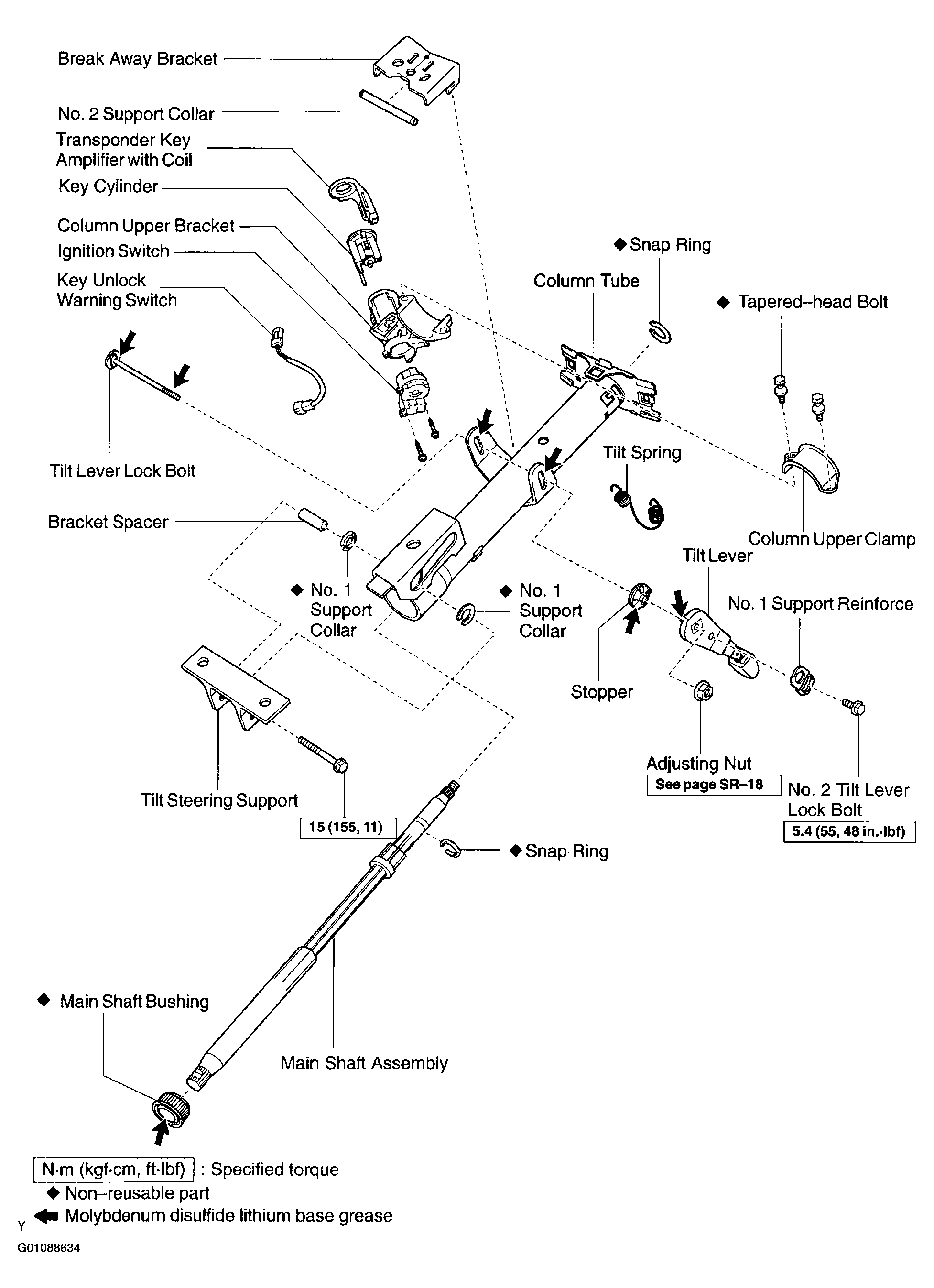

Fig 2: Identifying Internal Column Components
G01088634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
