Rear Brake Speed Sensor: Removal

Disconnect Speed Sensor Connector
1. Remove the seat cushion and seatback.
2. Disconnect the speed sensor connector, and pull out the sensor wire harness with the grommet.

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Speed Sensor
1. Remove the bolt and speed sensor from the axle carrier.
  Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
2. Remove the 2 clamp bolts holding the sensor wire harness to the body and shock absorber.
  Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

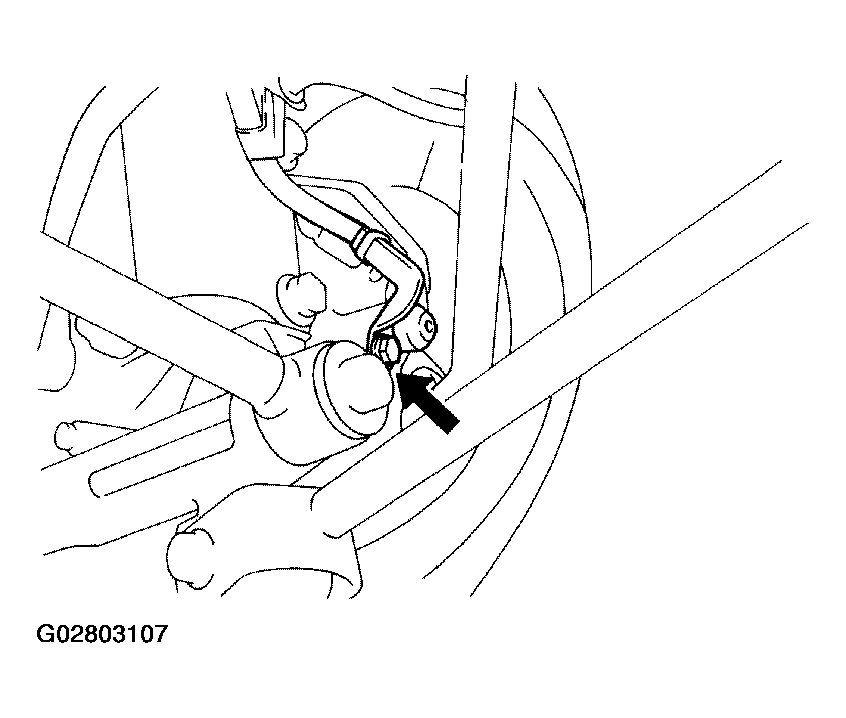

Fig 2: Removing Bolt And Speed Sensor From Axle Carrier
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
