Cruise Control Module: Service and Repair

CRUISE CONTROL ECU ASSEMBLY

REPLACEMENT

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER [55405B]
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER [55432B]
3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER [55045]

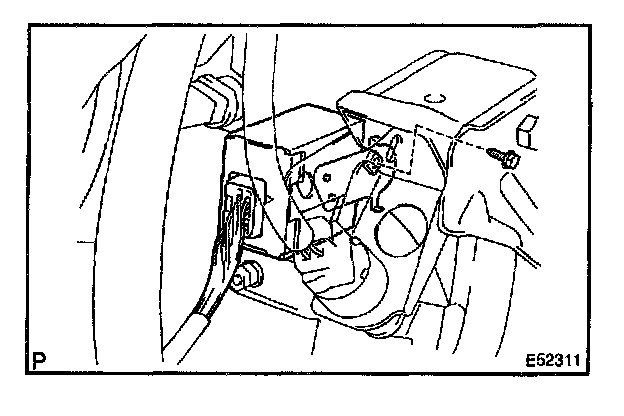

4. REMOVE CRUISE CONTROL ECU ASSEMBLY [88240]
a. Disconnect the connector
b. Remove the bolt and cruise control ECU assembly.
