How To Proceed With Troubleshooting

Troubleshoot in accordance with the following procedures.

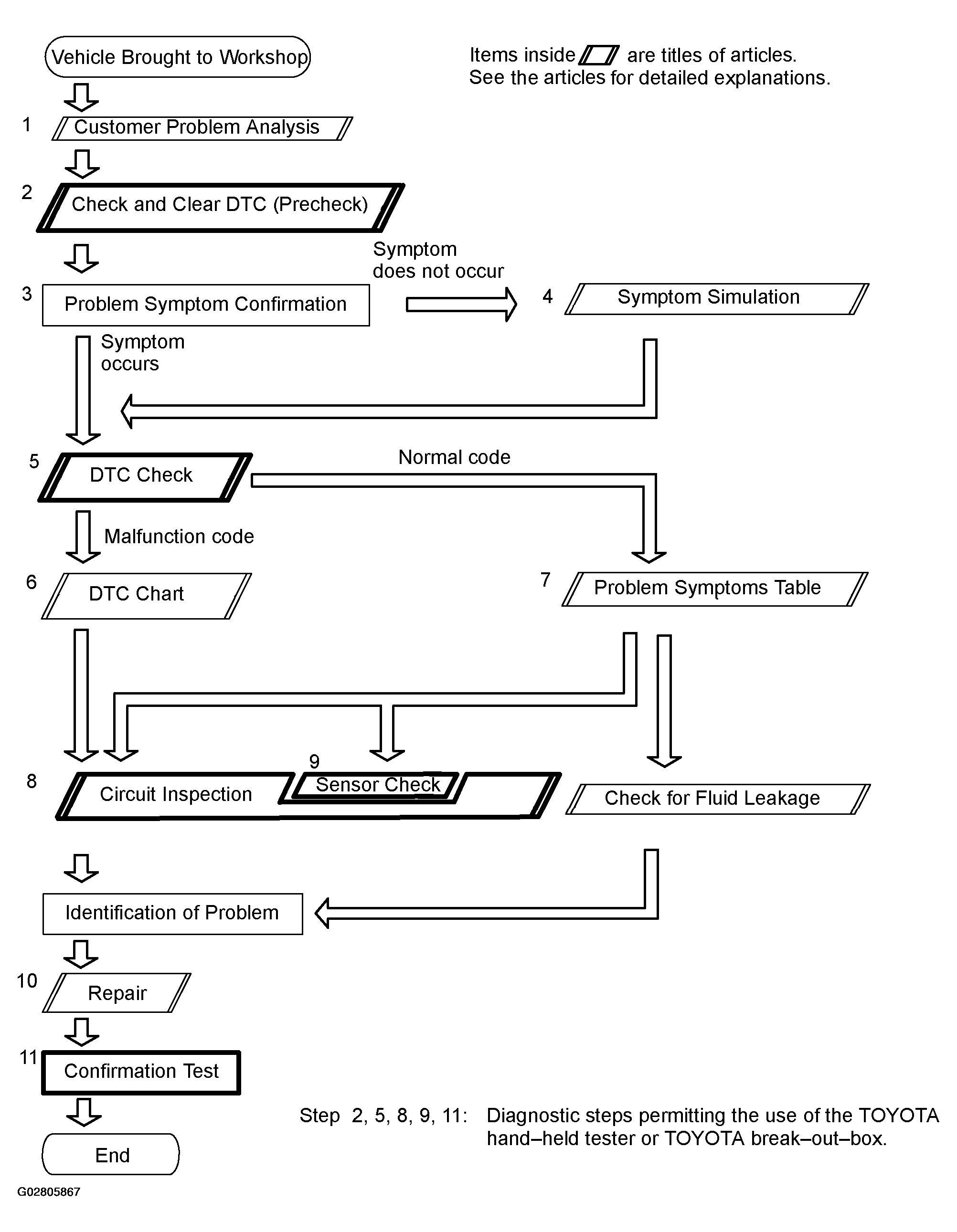

Fig 1: Anti-Lock Brake System - Troubleshooting Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fail safe function:

When a failure occurs in the ABS system, the ABS warning light is lit and the ABS operation is prohibited.
