Terminals Of Ecu

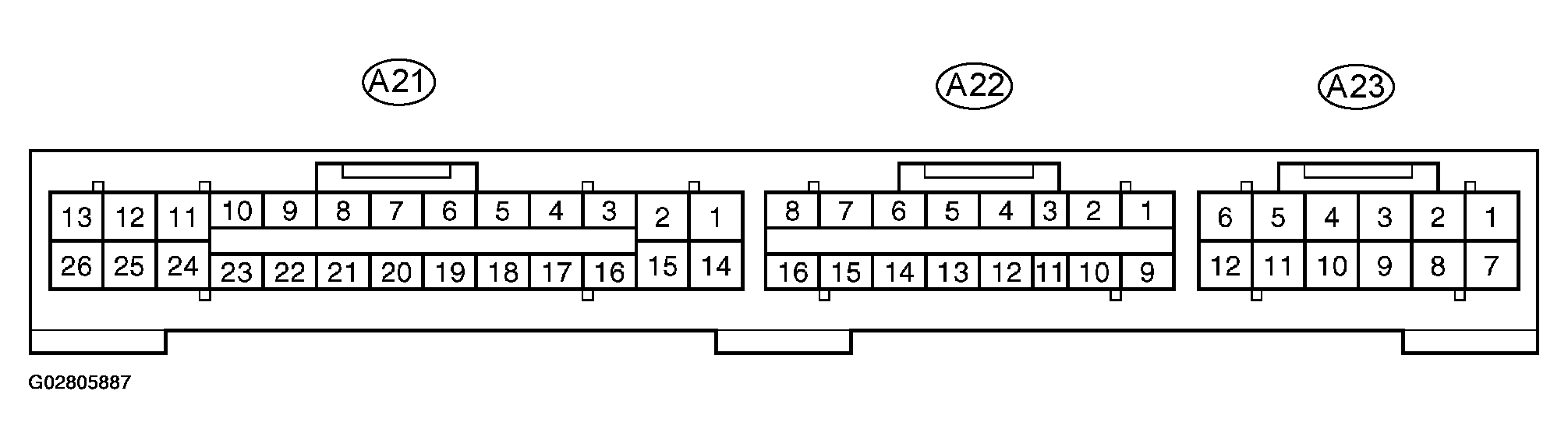

Fig 1: Identifying ECU Terminals
G02805887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

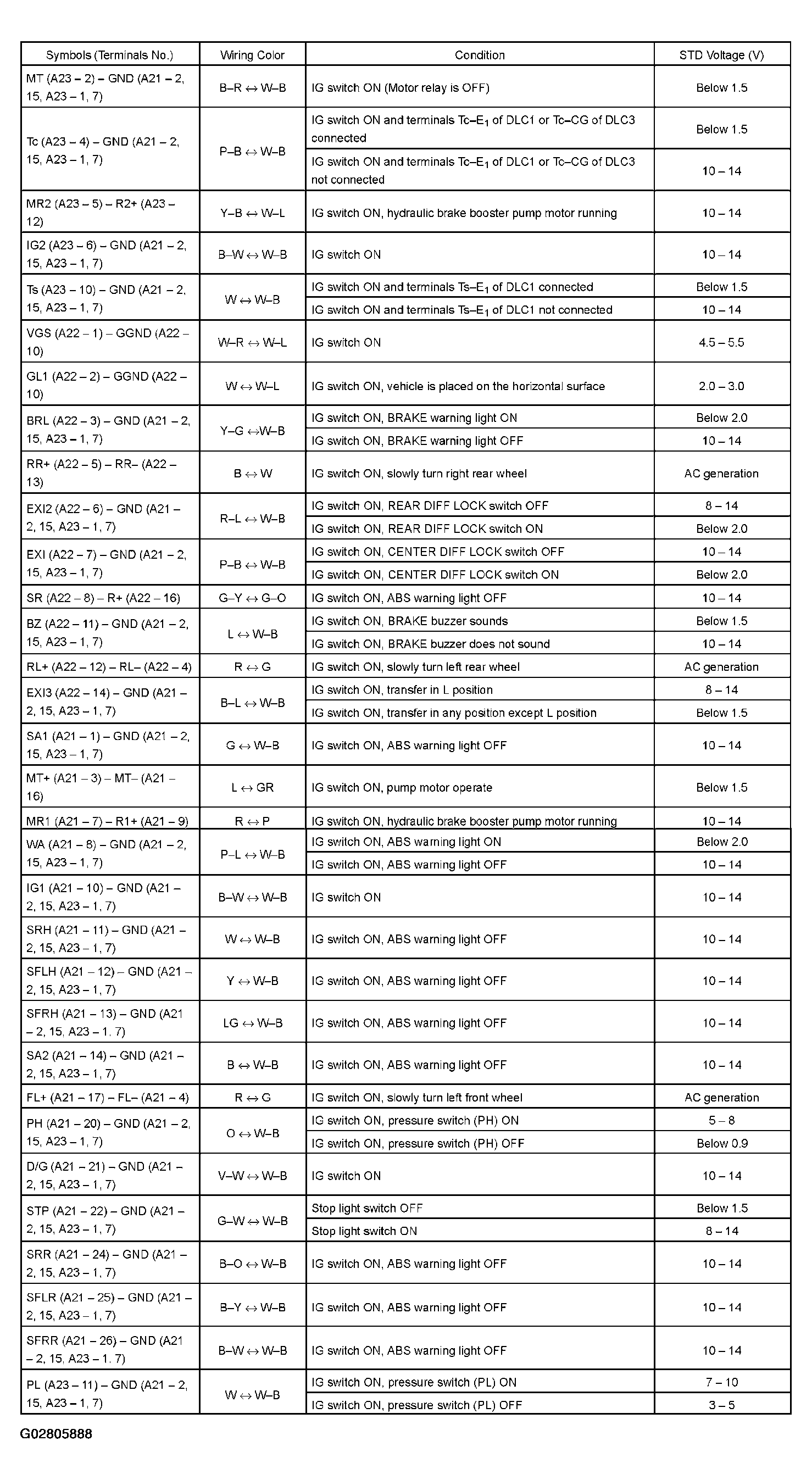

Fig 2: ECU Pin Voltage Chart
G02805888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
