Terminals Of Ecu

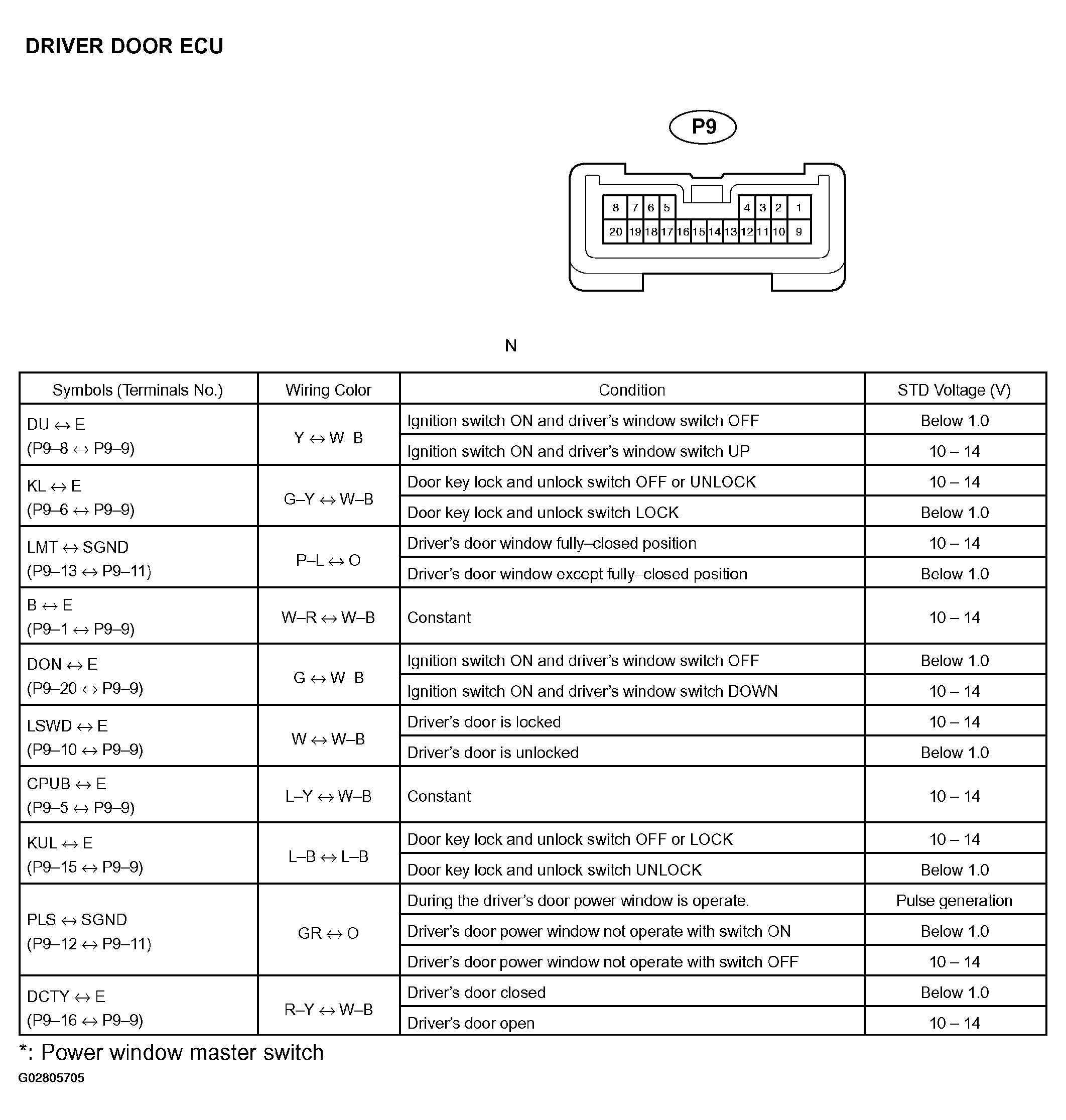

Fig 1: Identifying Driver Door ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
