Terminals Of Ecu

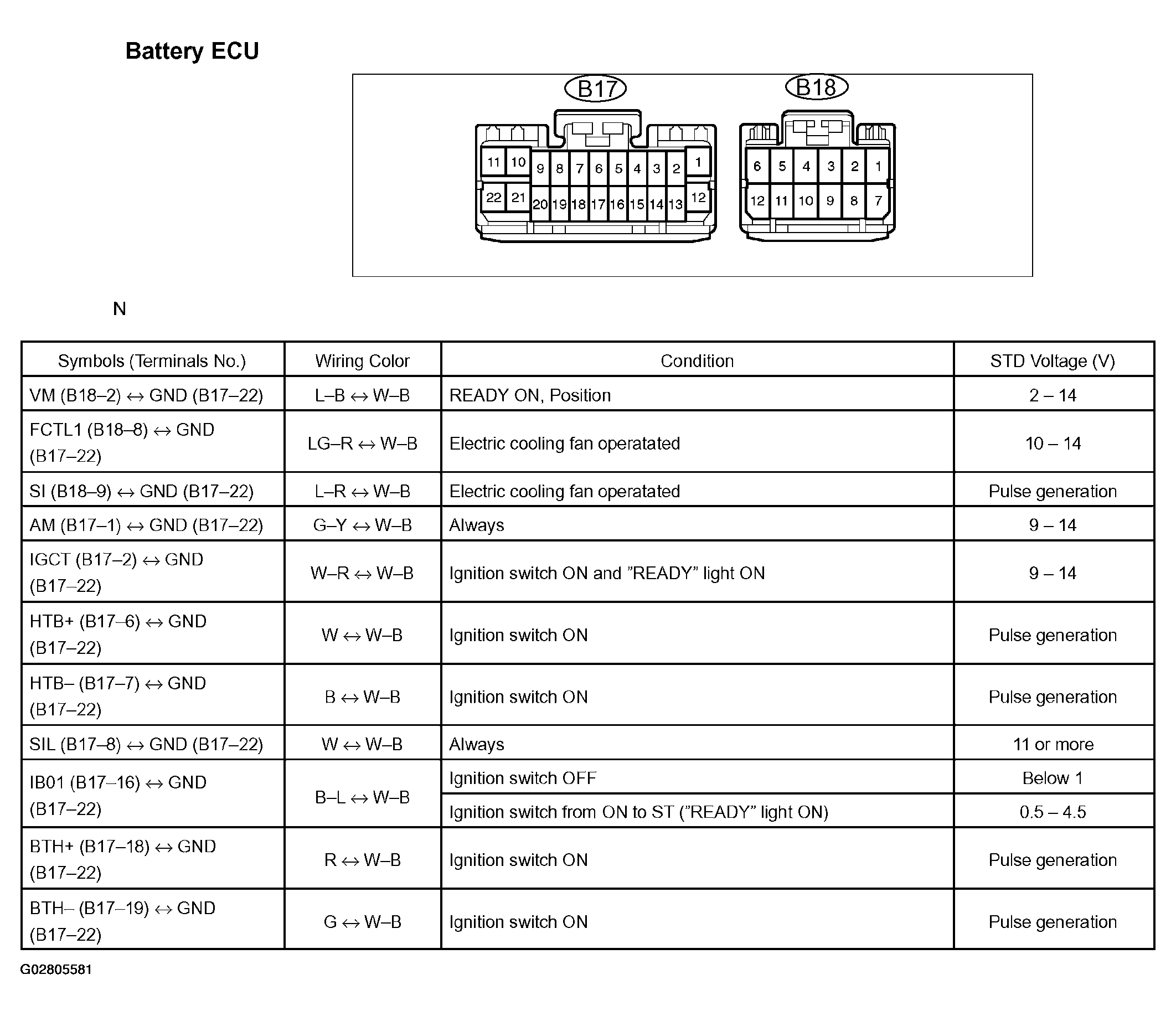

Fig 1: Identifying Battery ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
