How To Use The Diagnostic Chart And Inspection Procedure

  1. Connector Connection And Terminal Inspection
    • For troubleshooting, diagnostic trouble code charts or problem symptom table are provided for each circuit with detailed inspection procedures.
    • When all the component parts, wire harnesses and connectors of each circuit except the ECU are found to be normal in troubleshooting, then it is determined that the problem is in the ECU. Accordingly, if diagnosis is performed without the problem symptoms occurring, refer to Step  5 to replace the ECU. So always confirm that the problem symptoms are occurring, or proceed with inspection while using the symptom simulation method.
    • The instructions "Check wire harness and connector" and "Check and replace ECU" which appear in the inspection procedure, are common and applicable to all diagnostic trouble codes. Follow the procedure outlined below whenever these instructions appear.

    Open Circuit:

    This could be due to a disconnected wire harness, faulty contact in the connector, and a connector terminal pulled out, etc.

    NOTE:
    • It is rarely the case that a wire is broken in the middle of it. Most cases occur at the connector. In particular, carefully check the connectors of sensors and actuators
    • Faulty contact could be due to rusting of the connector terminals, to foreign materials entering terminals or a deformation of connector terminals. Simply disconnecting and reconnecting the connectors once changes the condition of the connection and may result in a return to normal operation. Therefore, in troubleshooting, if no abnormality is found in the wire harness and connector check, but the problem disappears after the check, then the cause is considered to be in the wire harness or connectors.

    Short Circuit:

    This could be due to a contact between wire harness and the body ground or to a short circuit occurred inside the switch, etc.

    NOTE: When there is a short circuit between the wire harness and body ground, check thoroughly whether the wire harness is caught in the body or is clamped properly.

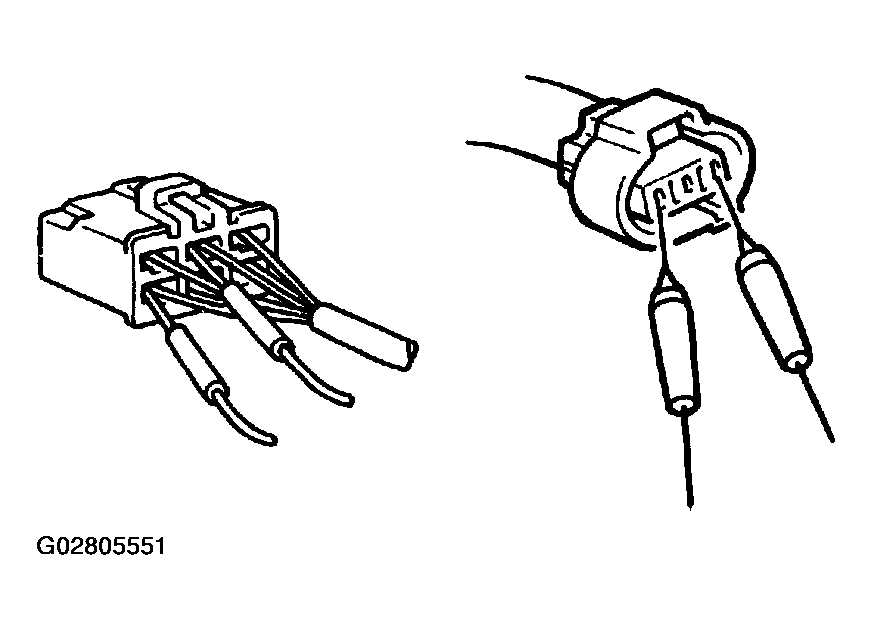

    Fig 1: Inserting Tester Probe To Connector
    G02805551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Connector Handling

    When inserting tester probes into a connector, insert them from the rear of the connector. When necessary, use mini test leads. For water resistant connectors which cannot be accessed from behind, take good care not to deform the connector terminals.

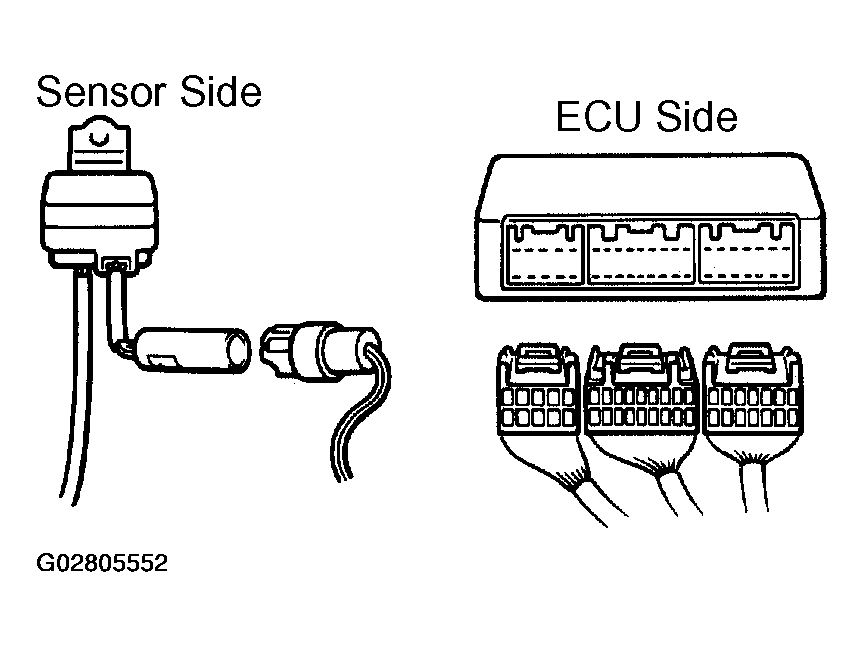

    Fig 2: Disconnecting Connectors At Both ECU And Sensor Sides
    G02805552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Continuity Check (Open Circuit Check)
    1. Disconnect the connectors at both ECU and sensor sides.

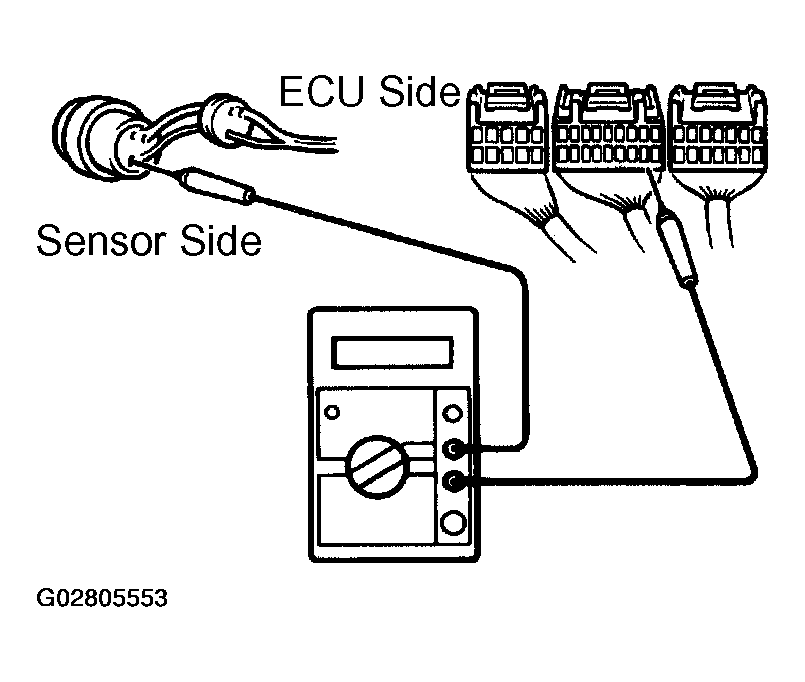

      Fig 3: Measuring Resistance Between Applicable Terminals Of Connectors (Open Circuit Check)
      G02805553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. NOTE: Measure the resistance while lightly shaking the wire harness vertically and horizontally.
    2. Measure the resistance between the applicable terminals of the connectors.

    Resistance: 1 Ω or less

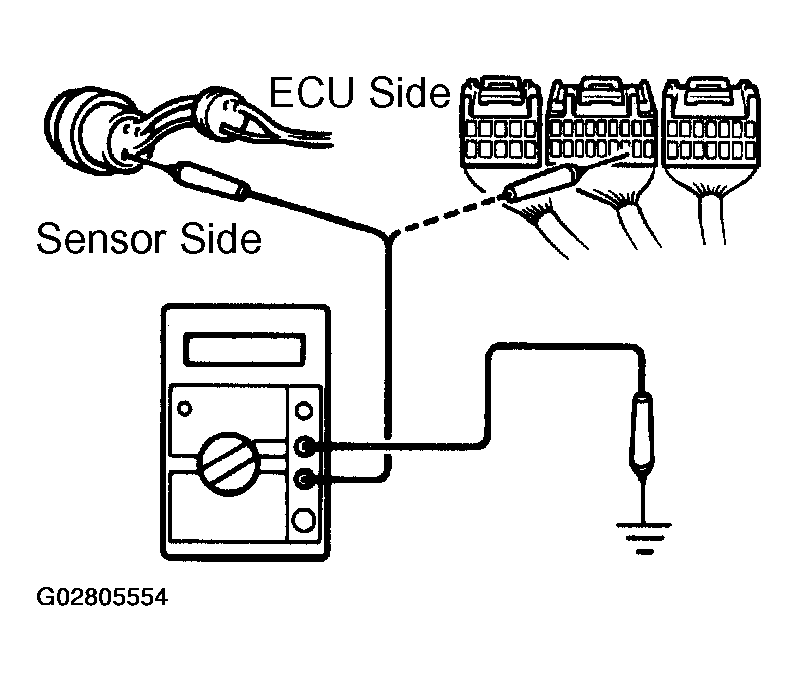

    Fig 4: Measuring Resistance Between Applicable Terminals Of Connectors And Ground (Short Circuit Check)
    G02805554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Resistance Check (Short Circuit Check)
    1. Disconnect the connectors on both ends.
      2. NOTE: Measure the resistance while lightly shaking the wire harness vertically and horizontally.
    2. Measure the resistance between the applicable terminals of the connectors and body ground. Be sure to carry out this check on the connectors on both ends.

    Resistance: 1 MΩ or higher

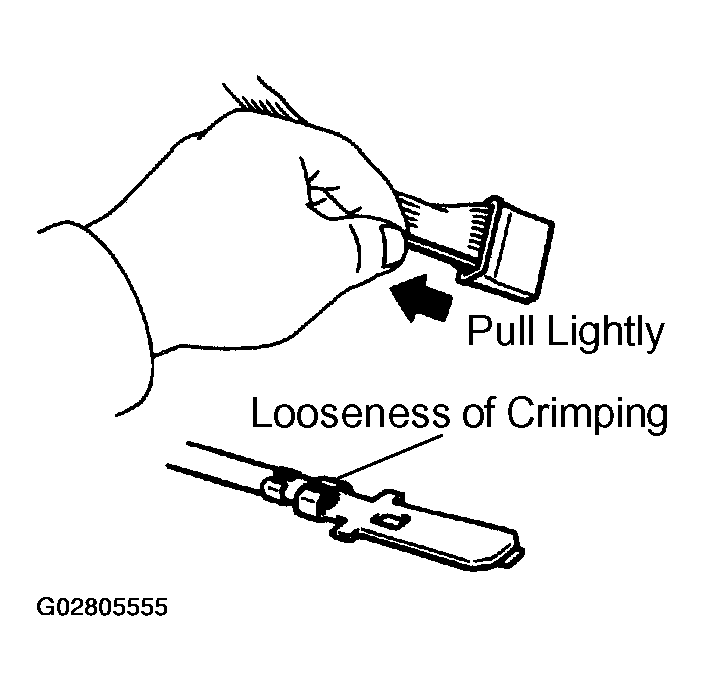

    Fig 5: Checking Crimped Portions For Looseness
    G02805555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Visual Check And Contact Pressure Check
    1. Disconnect the connectors at both ends.
    2. Check for rust or foreign material, etc. in the terminals of the connectors.
      3. NOTE: The terminals should not come out when pulled lightly from the back.
    3. Check crimped portions for looseness or damage and check that the terminals are secured in lock portion.
      4. NOTE: When testing a gold-plated female terminal, always use a gold-plated male terminal.
      When the test terminal is pulled out more easily than others, there may be poor contact in that section.
    4. Prepare a test male terminal and insert it in the female terminal, then pull it out.

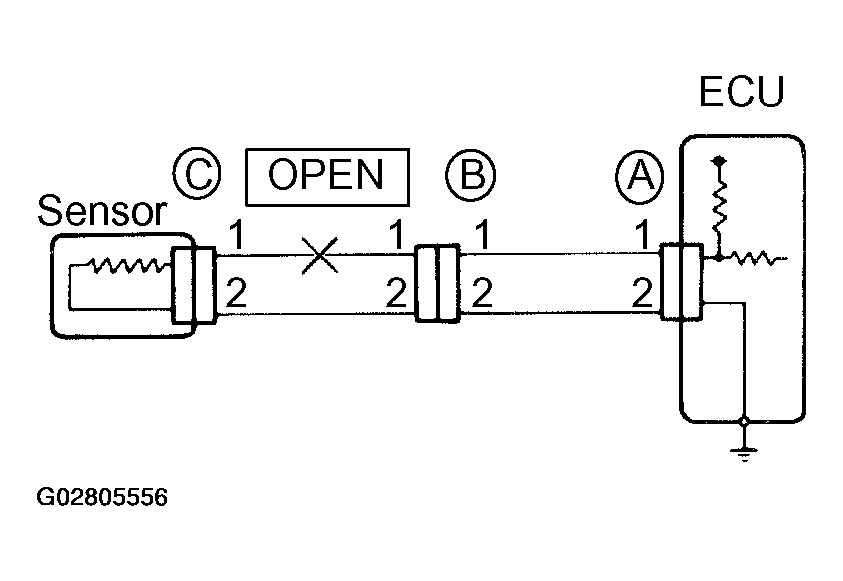

    Fig 6: Checking Open Circuit
    G02805556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Check Open Circuit

    For the open circuit in the wire harness in Fig 6, perform "(a) Continuity Check" or "(b) Voltage Check" to locate the section.

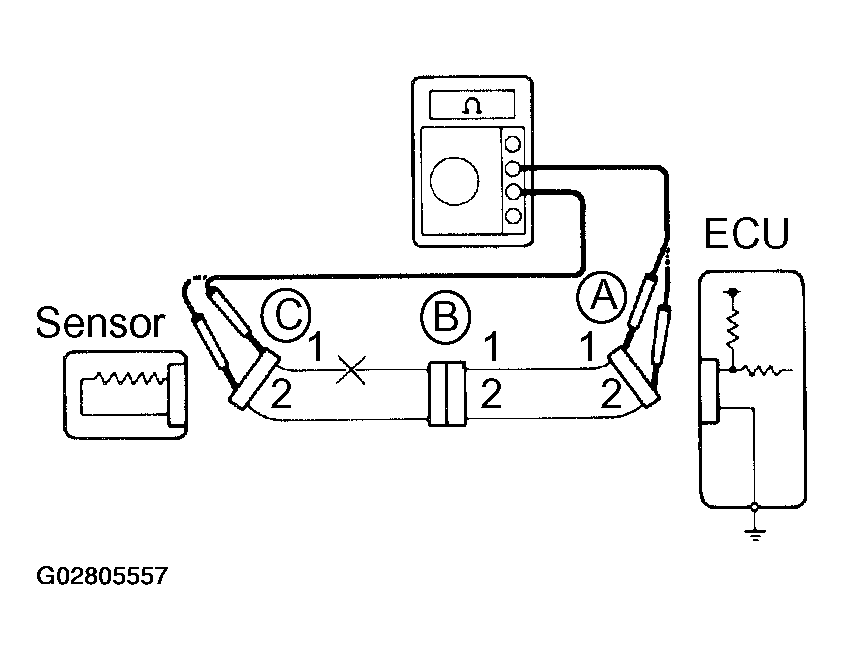

    Fig 7: Measuring Resistance Between Connector A And C
    G02805557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

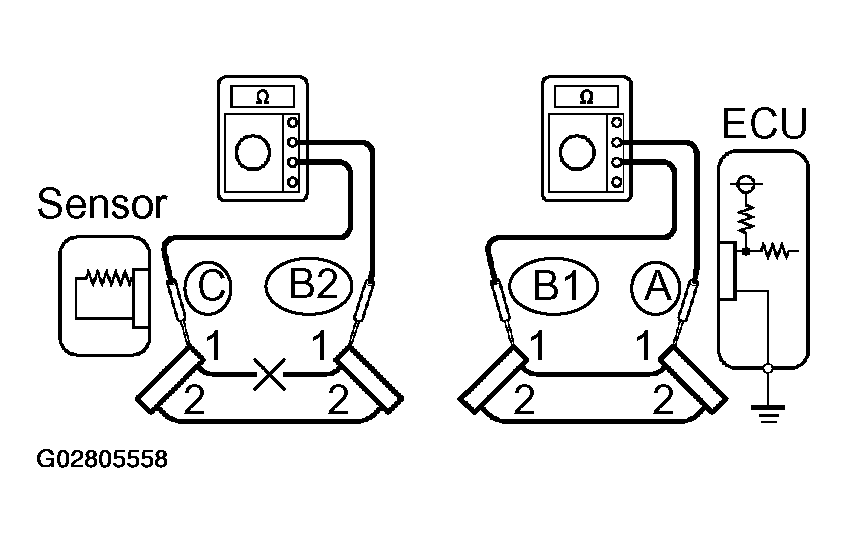

    Fig 8: Measuring Resistance Between Connector A And B
    G02805558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Check the continuity.
    1. Disconnect connectors "A" and "C" and measure the resistance between them.

      In the case of Fig 7:

      Between terminal 1 of connector "A" and terminal 1 of connector "C" --> No continuity (open)

      Between terminal 2 of connector "A" and terminal 2 of connector "C" --> Continuity

      Therefore, it is found out that there is an open circuit between terminal 1 of connector "A" and terminal 1 of connector "C".

    2. Disconnect connector "B" and measure the resistance between the connectors.

      In the case of Fig 8:

      Between terminal 1 of connector "A" and terminal 1 of connector "B1" --> Continuity

      Between terminal 1 of connector "B2" and terminal 1 of connector "C" --> No continuity (open)

      Therefore, it is found out that there is an open circuit between terminal 1 of connector "B2" and terminal 1 of connector "C".

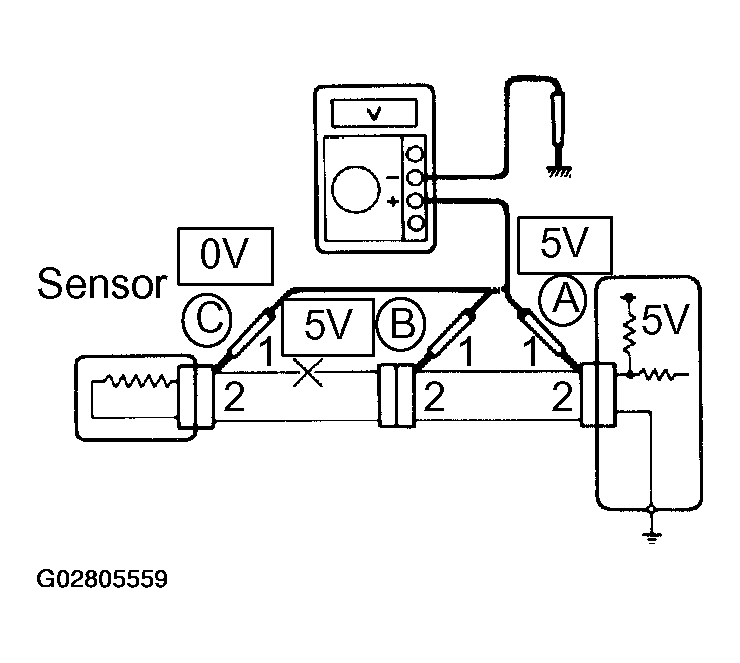

      Fig 9: Checking Voltage (Open Circuit)
      G02805559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check The Voltage.

      In a circuit in which voltage is applied (to the ECU connector terminal), an open circuit can be checked for by conducting a voltage check.

      As shown in Fig 9, with each connector still connected, measure the voltage between body ground and terminal 1 of connector "A" at the ECU 5V output terminal, terminal 1 of connector "B", and terminal 1 of connector "C", in that order.

      If the results are:

      5V: Between Terminal 1 of connector "A" and Body Ground

      5V: Between Terminal 1 of connector "B" and Body Ground

      0V: Between Terminal 1 of connector "C" and Body Ground

      Then it is found out that there is an open circuit in the wire harness between terminal 1 of "B" and terminal 1 of "C".

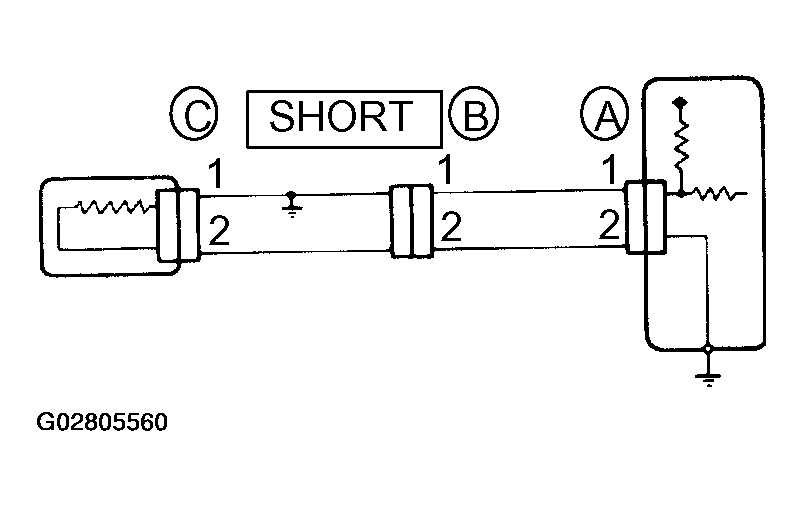

      Fig 10: Checking Short Circuit
      G02805560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check Short Circuit

      If the wire harness is ground shorted as in Fig 10, locate the section by conducting a "continuity check with ground".

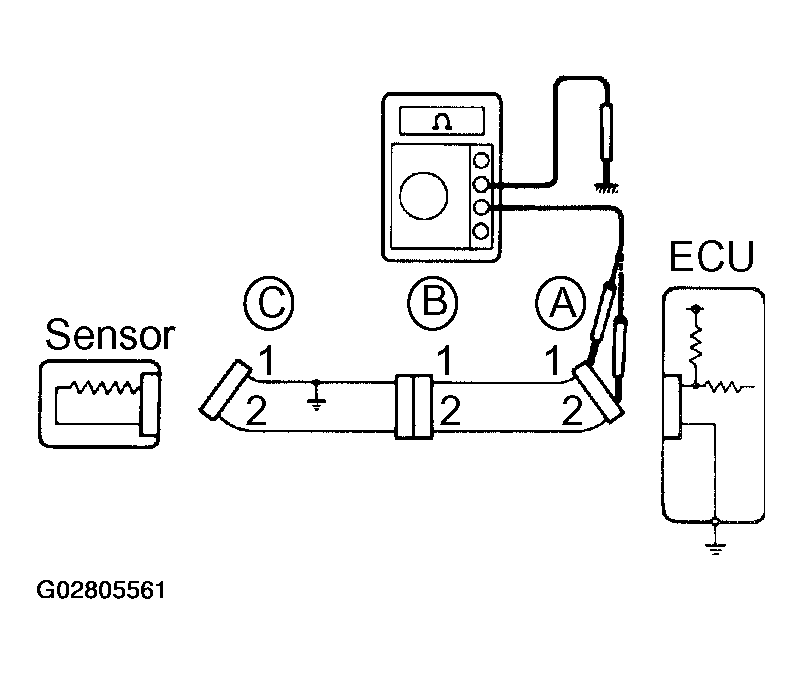

      Fig 11: Measuring Resistance Between Terminal 1 And 2 Of Connector A And Body Ground
      G02805561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Check the continuity with ground.

      1. Disconnect connectors "A" and "C" and measure the resistance between terminal 1 and 2 of connector "A" and body ground.

        In the case of Fig 11:

        Between terminal 1 of connector "A" and body ground --> Continuity (short)

        Between terminal 2 of connector "A" and body ground --> No continuity

        Therefore, it is found out that there is a short circuit between terminal 1 of connector "A" and terminal 1 of connector "C".

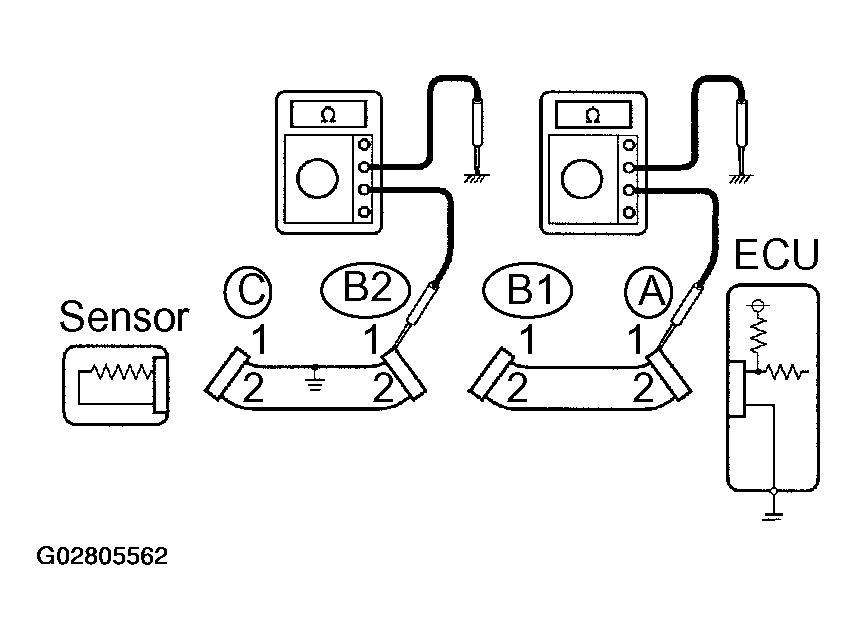

        Fig 12: Measuring Resistance Between Terminal 1 Of Connector A And Body Ground, And Terminal 1 Of Connector And Body Ground
        G02805562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect connector "B" and measure the resistance between terminal 1 of connector "A" and body ground, and terminal 1 of connector "B2" and body ground.

        In the case of Fig 12:

        Between terminal 1 of connector "A" and body ground --> No continuity

        Between terminal 1 of connector "B2" and body ground --> Continuity (short)

        Therefore, it is found out that there is a short circuit between terminal 1 of connector "B2" and terminal 1 of connector "C".

    5. Check And Replace ECU

      First check the ECU ground circuit. If it is faulty, repair it. If it is normal, the ECU could be faulty, so replace the ECU with a normal functioning one and check that the symptoms appear.

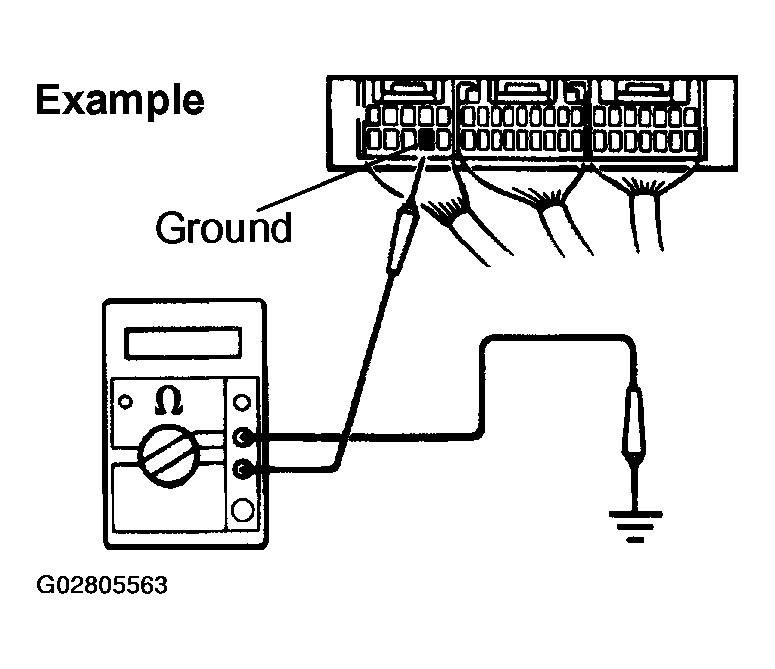

      Fig 13: Measuring Resistance Between ECU Ground Terminal And Body Ground
      G02805563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance between the ECU ground terminal and the body ground.

        Resistance: 1 Ω or less

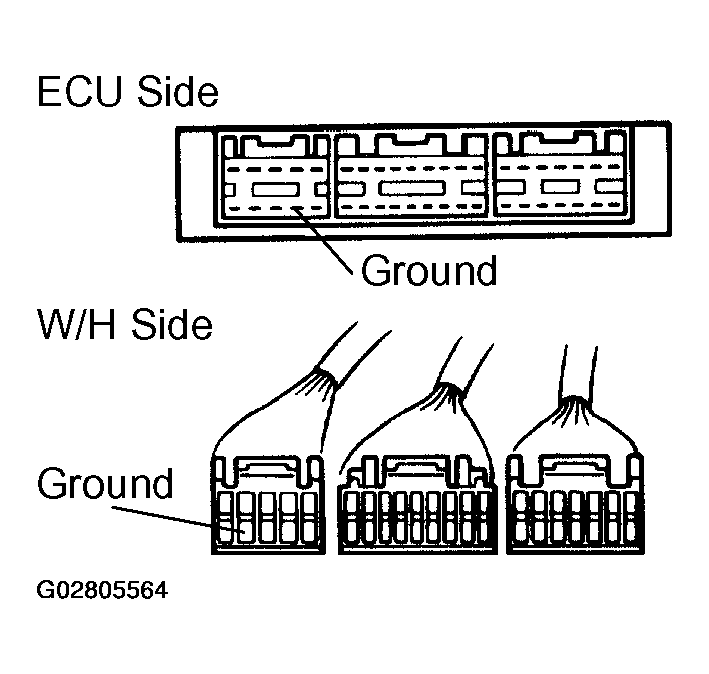

        Fig 14: Disconnecting ECU Connector
        G02805564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the ECU connector, check the ground terminals on the ECU side and the wire harness side for bend and check the contact pressure.
