Input Shaft Oil Seal: Replacement

REMOVE HYBRID TRANSAXLE WITH ENGINE (See REMOVAL )
SEPARATE TRANSAXLE AND ENGINE (See REMOVAL )
REMOVE INPUT SHAFT OIL SEAL
Using a flat-head screwdriver and a hammer, drive the screwdriver tip into the part shown in the illustration and pry it out.

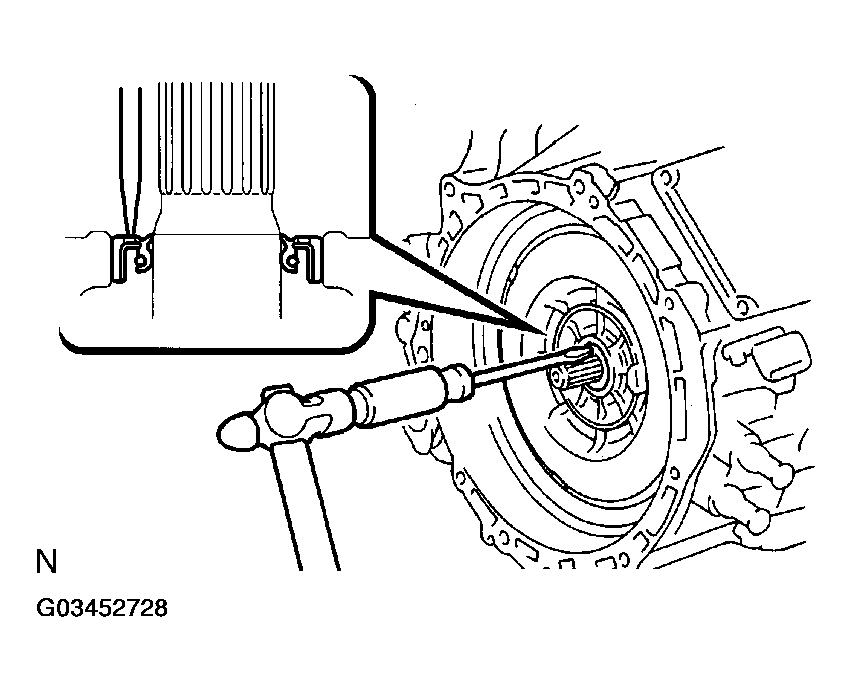

Fig 1: Removing Input Shaft Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAUTION: When using a screwdriver to drive in or pry out, be careful not to damage the input shaft and transaxle housing.
INSTALL INPUT SHAFT OIL SEAL
Using SST and a hammer, install a new input shaft oil seal. SST 09388-40010

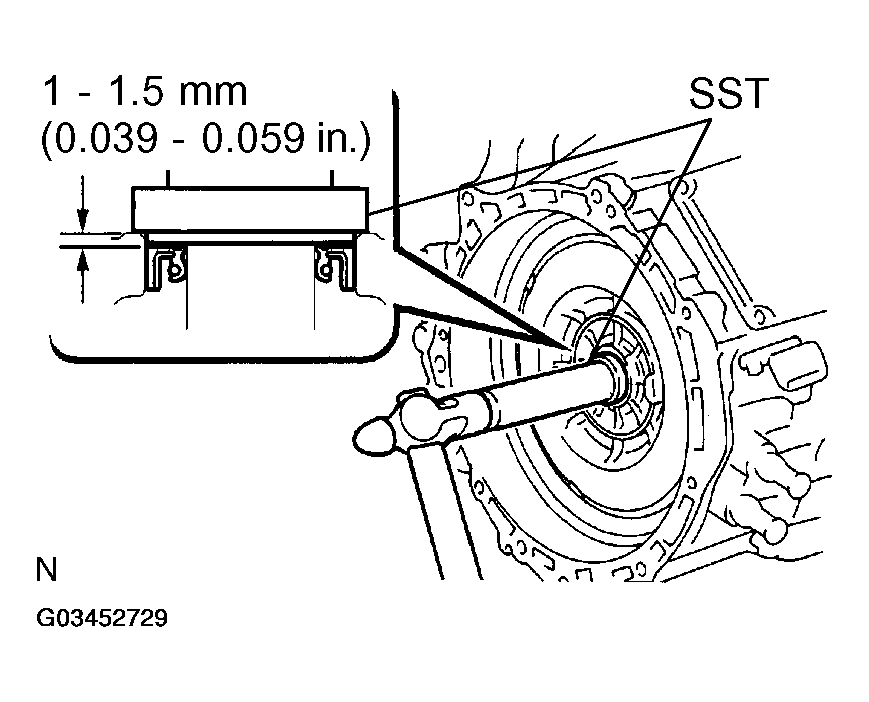

Fig 2: Installing Input Shaft Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Oil seal depth: 1-1.5 mm (0.039-0.059 in.)

NOTE: Drive in the oil seal unit SST comes into contact with the case.
INSTALL TRANSAXLE TO ENGINE (See INSTALLATION )
INSTALL TRANSAXLE AND ENGINE TO VEHICLE (See INSTALLATION )
