Inspection Procedure

  1. Check Voltage Between Terminals Tc And CG Of DLC3.

    CHECK:

    1. Turn the ignition switch ON.
    2. Measure the voltage between terminals Tc and CG of the DLC3.

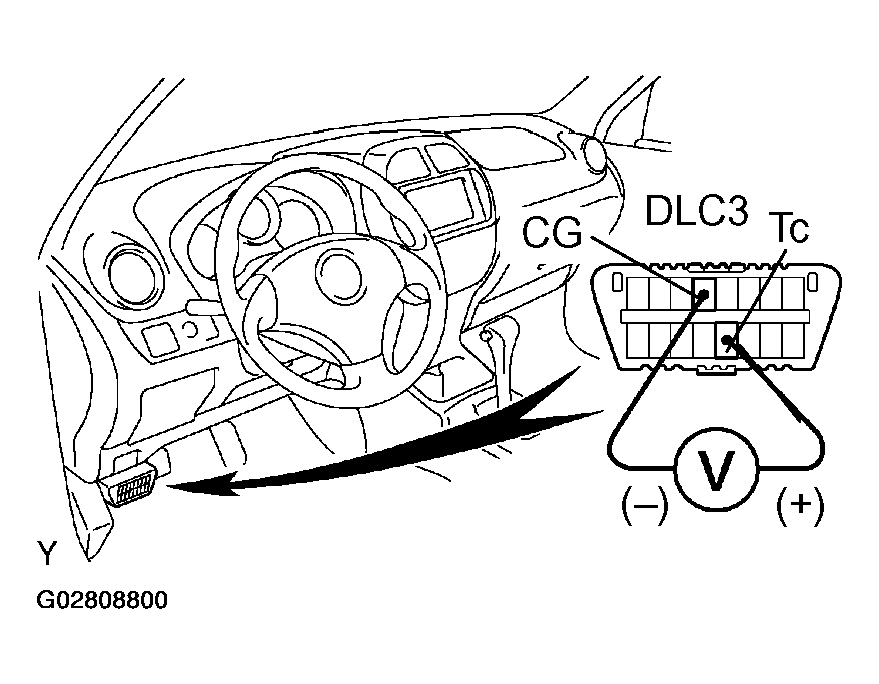

      3. Fig 1: Checking Voltage Between Terminals Tc And CG Of DLC3
      G02808800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Voltage: 10 - 14 V

    1. OK: If ABS warning light does not blink even after Tc and CG are connected, ECU may be defective.
    2. NG: Go to Next Step
  2. Check For Open And Short Circuit In Harness And Connector Between ABS ECU And DLC3, And DLC3 and body ground.
    1. NG: Repair or replace harness or connector.
    2. OK: Check and replace ABS actuator assembly.
