RAV4 (Relay Operation Check)

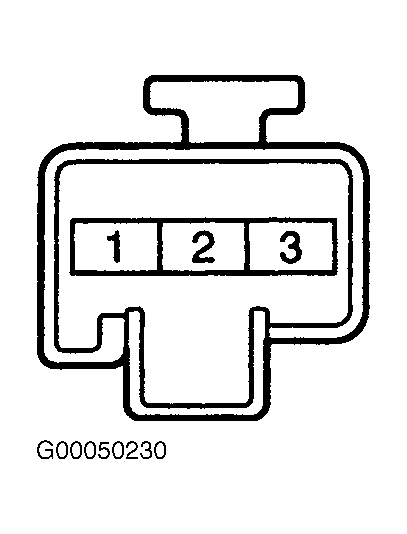

Disconnect rear wiper relay. Connect fused jumper wire between battery voltage and relay terminal No. 1. Connect another jumper wire between wiper motor body and terminal No. 3. See Figure. Ensure rear wiper motor operates. Disconnect negative lead from terminal No. 3. Ensure motor stops running at stop position. If operation is not as specified, replace motor and relay.
