Power Window Master Switch Circuit Test: Sienna

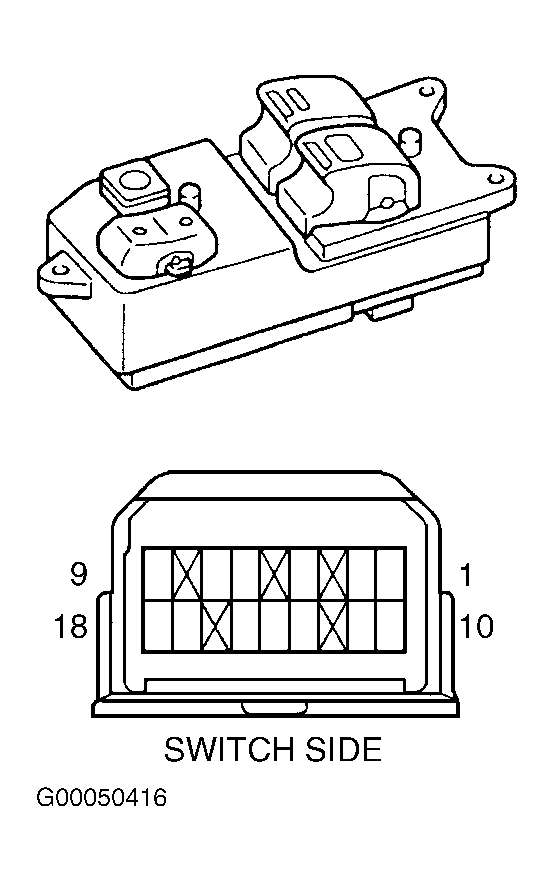

Disconnect 18-pin power window master switch connector. See Fig 1. Continuity should exist between all terminals listed in table. See POWER WINDOW MASTER SWITCH CIRCUIT TEST (RAV4) table. If continuity is not as specified, replace power window master switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.
POWER WINDOW MASTER SWITCH CIRCUIT TEST (SIENNA)
| Application & Switch Position | Terminals No. | ||
|---|---|---|---|
| Driver's Switch | |||
| Unlocked | |||
| AUTO UP | 1 & 9; 4 & 7 | ||
| UP | 1 & 9; 4 & 7 | ||
| OFF | 1, 4 & 9 | ||
| DOWN | 1 & 4; 7 & 9 | ||
| AUTO DOWN | 1 & 4; 7 & 9 | ||
| Front Passenger's Switch | |||
| Locked | |||
| UP | 6 & 13 | ||
| OFF | 13 & 15 | ||
| DOWN | 6 & 15 | ||
| Unlocked | |||
| UP | 1 & 15; 6 & 13 | ||
| OFF | 1, 13 & 15 | ||
| DOWN | 1 & 13; 6 & 15 | ||
