Test No. 22: Power Door Lock System Does Not Operate When Using The Key

  1. Check door key lock and unlock switch on driver's side front door, passenger's side front door and back (rear liftgate) door. See DOOR KEY LOCK & UNLOCK SWITCH  under COMPONENT TESTS. If door key lock and unlock switch is okay, go to next step. If door key lock and unlock switch is defective, replace door key lock and unlock switch and recheck power door lock system operation.

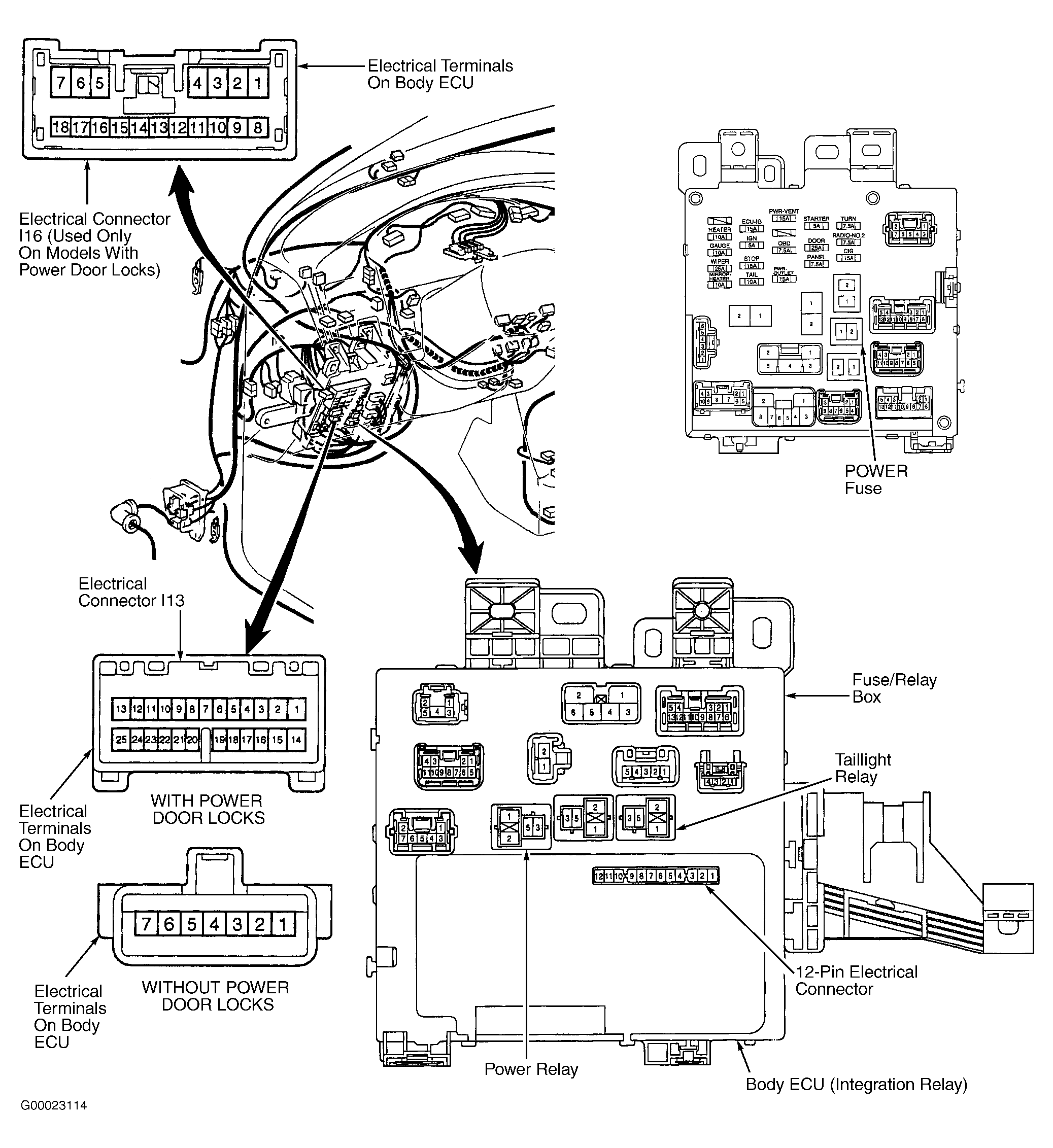

  2. Check wiring harness and electrical connectors between body ground and each door key lock and unlock switch, and between body Electronic Control Unit (ECU) and each door key lock and unlock switch. See WIRING DIAGRAMS in POWER DOOR LOCKS - TRUCKS (EXCEPT SEQUOIA) article. Body ECU may also be referred to as integration relay. Body ECU is located at driver's side of instrument panel on the fuse/relay box. See Figure. Electrical connector I13 (7-pin or 25-pin) and electrical connector I16 (18-pin) are located at body ECU and a 12-pin electrical connector is located at rear of body ECU. See Figure. If wiring harness and electrical connectors are okay, go to next step. If wiring harness or electrical connector is defective, repair as necessary and recheck power door lock system operation.
  3. Check body ECU for proper voltage and input signals. See BODY ELECTRONIC CONTROL UNIT  under PIN VOLTAGE TESTS. If proper voltage and input signals exist, go to next step. If proper voltage and input signals do not exist, repair as necessary and recheck power door lock system operation.
  4. Replace body ECU with a known-good body ECU and recheck power door lock system operation. If power door lock system operates properly, original body ECU was defective. If power door lock system still does not operate properly, check wiring harness and electrical connectors for body ECU and door key lock and unlock switch for an intermittent problem. See WIRING DIAGRAMS in POWER DOOR LOCKS - TRUCKS (EXCEPT SEQUOIA) article. Repair wiring harness or electrical connector as necessary. It may also be necessary to check for a disconnected linkage rod at door lock assembly in the door.
