Door Unlock Detection Switch Circuit: Wiring Diagram

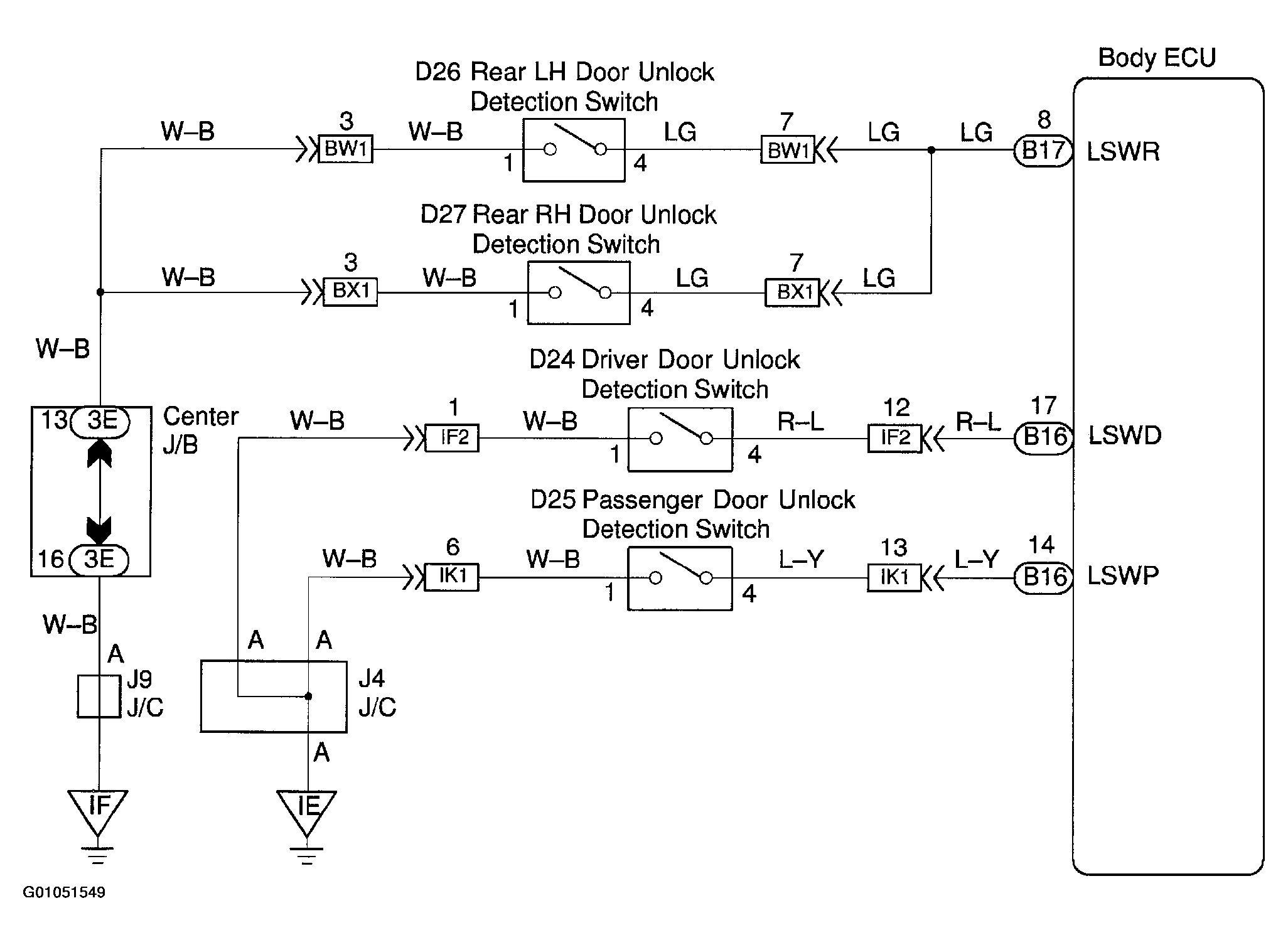

Fig 1: Door Unlock Detection Switch Circuit Wiring Diagram
G01051549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
