Wireless Door Lock Control System: Adjustment

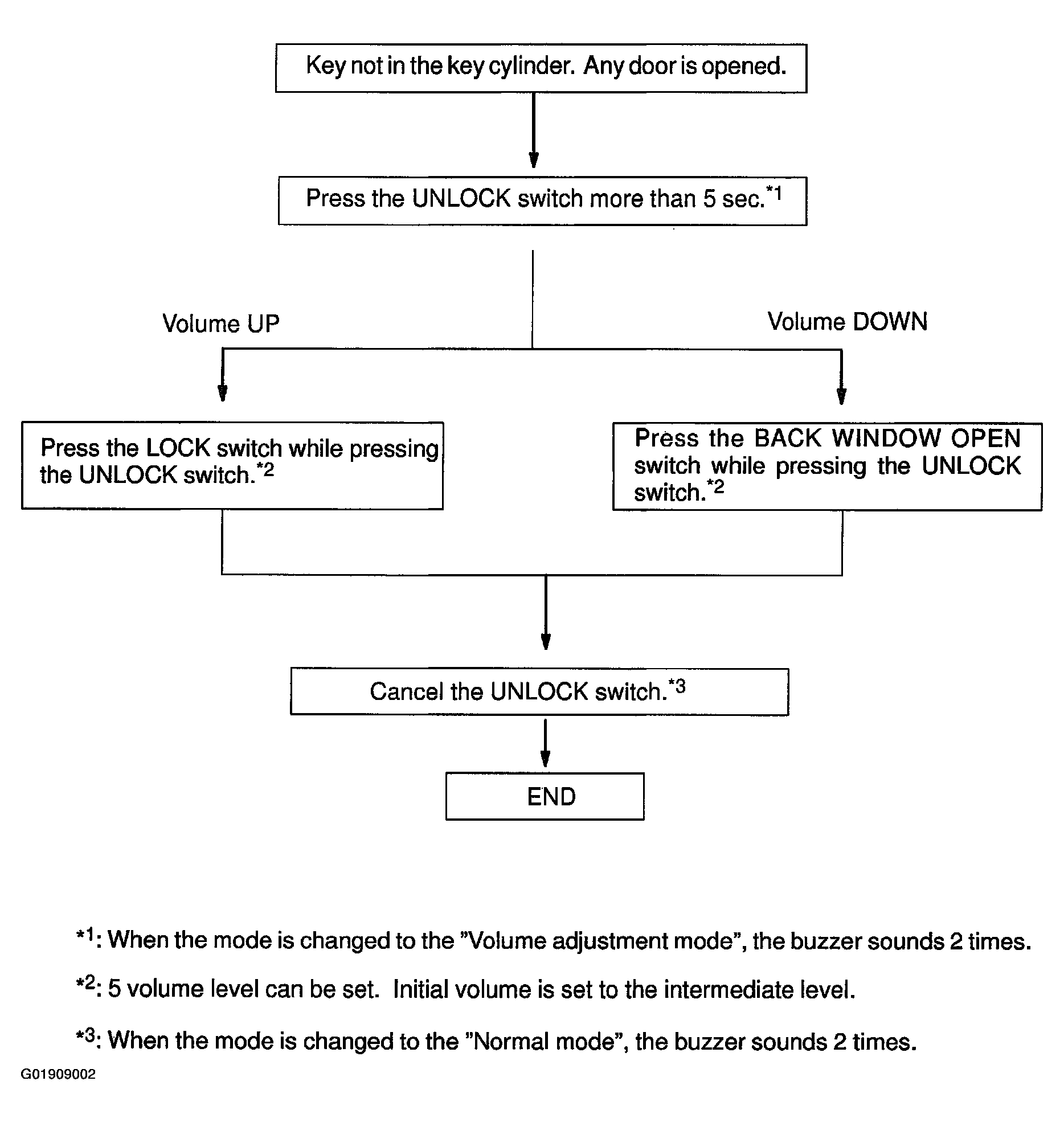

Fig 1: Adjusting Wireless Door Lock Buzzer Volume
G01909002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: System Component Reference Graph
G01909003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
