Step 1 - ONE TOUCH Power Window Does Not Move Up And Down. (Prepare Normal Master And Regulator Switch)

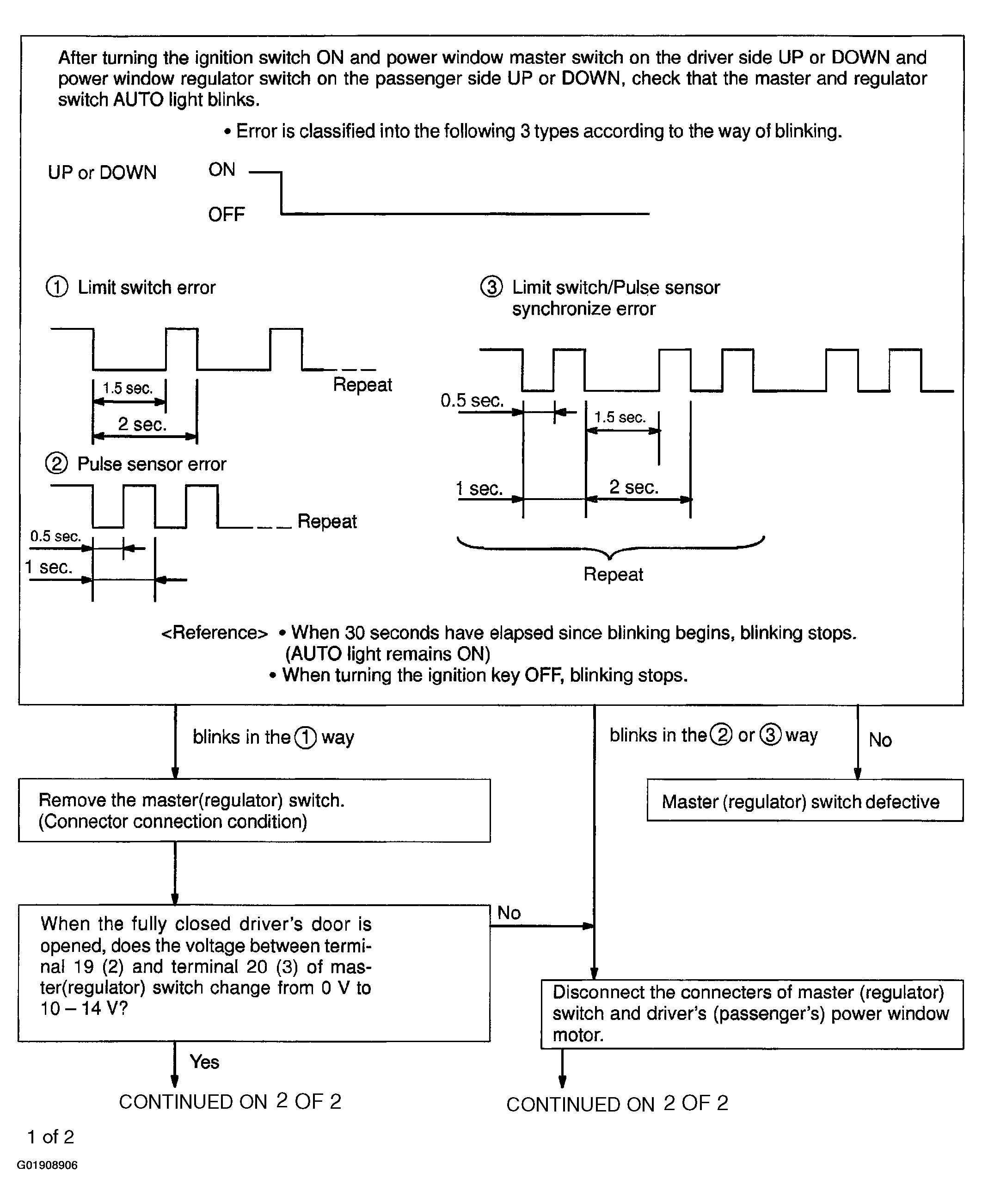

Fig 1: Identifying MIL Error Codes & Troubleshooting Flow Chart (1 Of 2)
G01908906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

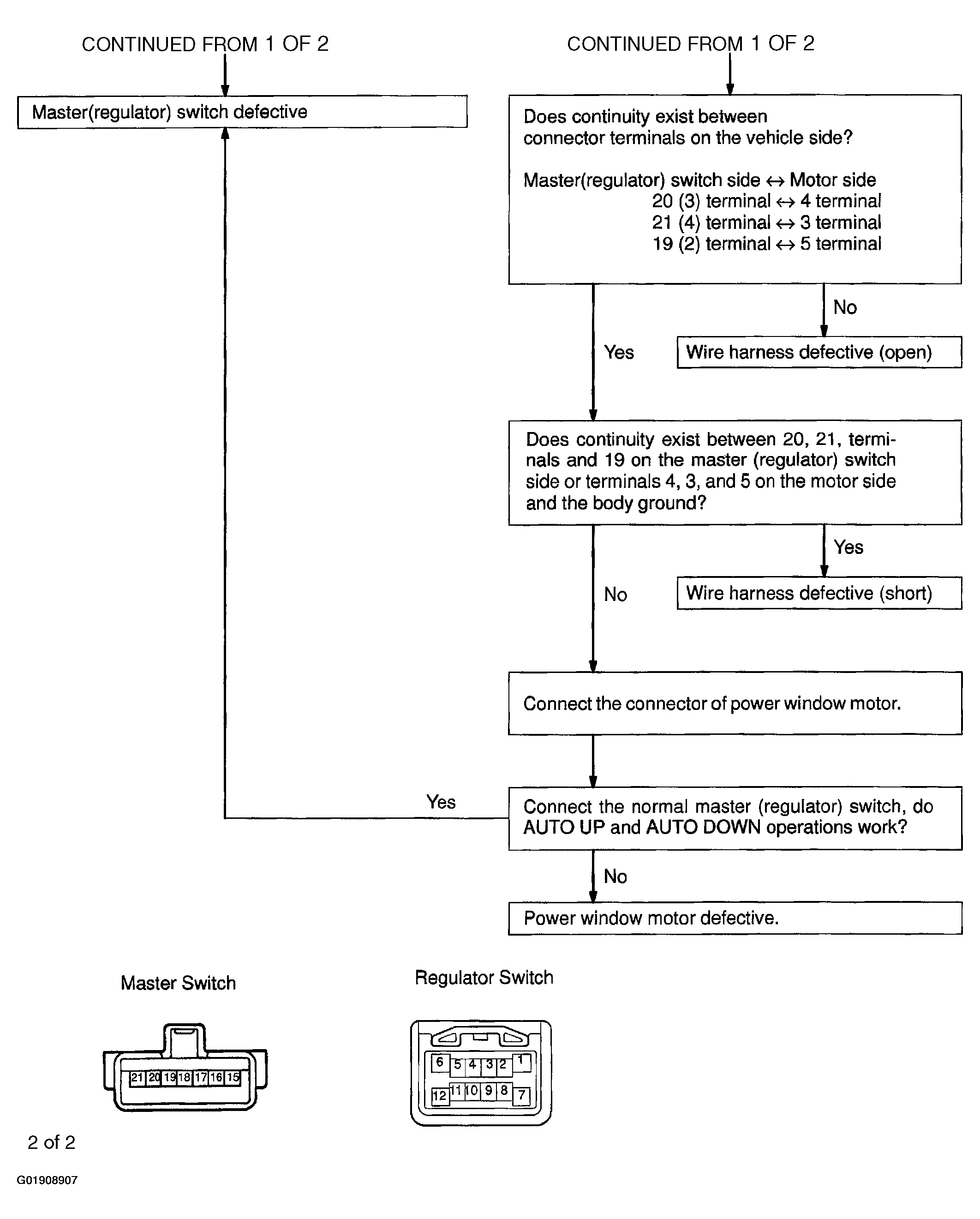

Fig 2: Identifying MIL Error Codes & Troubleshooting Flow Chart (2 Of 2)
G01908907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
