Power Window Control System
>>
Troubleshooting
>>
Step 2 - During AUTO UP Operation, Power Window Moves Down
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Step 2 - During AUTO UP Operation, Power Window Moves Down

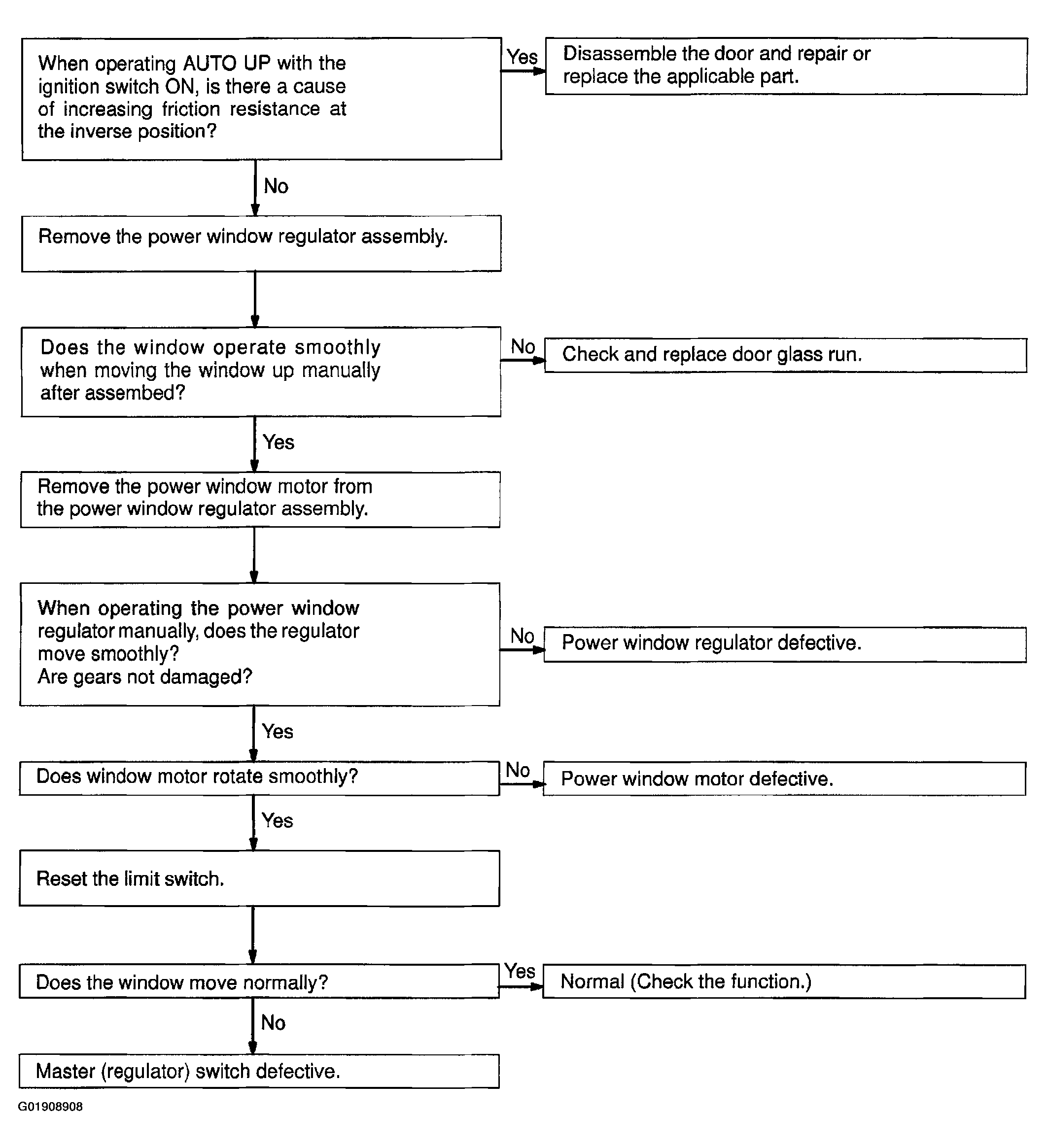

Fig 1: During AUTO UP Operation Power Window Moves Down
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
