Toyota
>>
2002
>>
4Runner Base
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System W/VSC
>>
System Testing
>>
Test H: TS Terminal Circuit
>>
Testing Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Testing Procedure
For wiring diagram see
Figure
. For testing procedure see
Fig 1
.

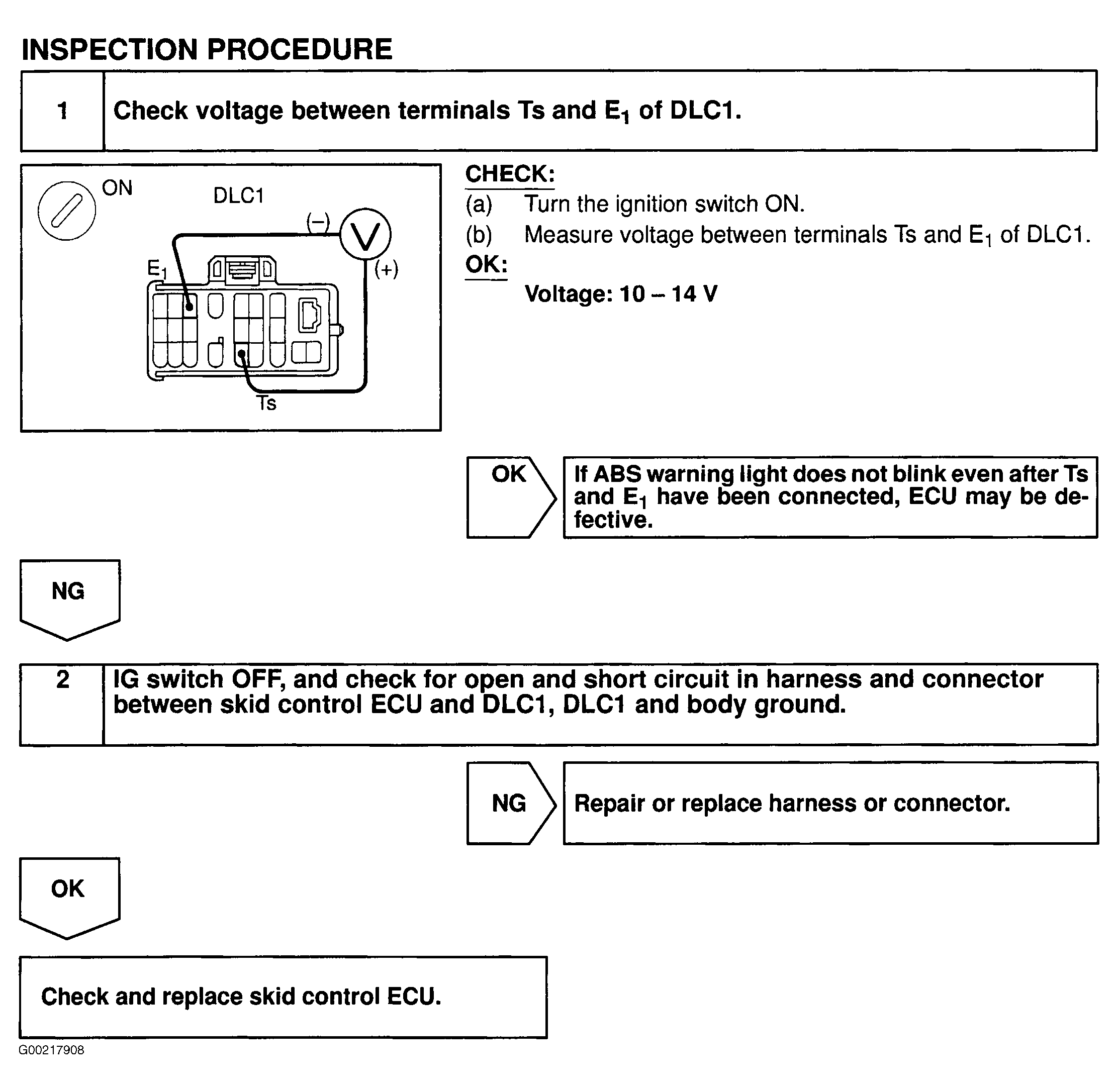

Fig 1: Testing Procedures Ts Terminal Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
