DTC P1520/52: Stop Light Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For Stop light switch circuit testing procedure, see Fig 1-Fig 3 .

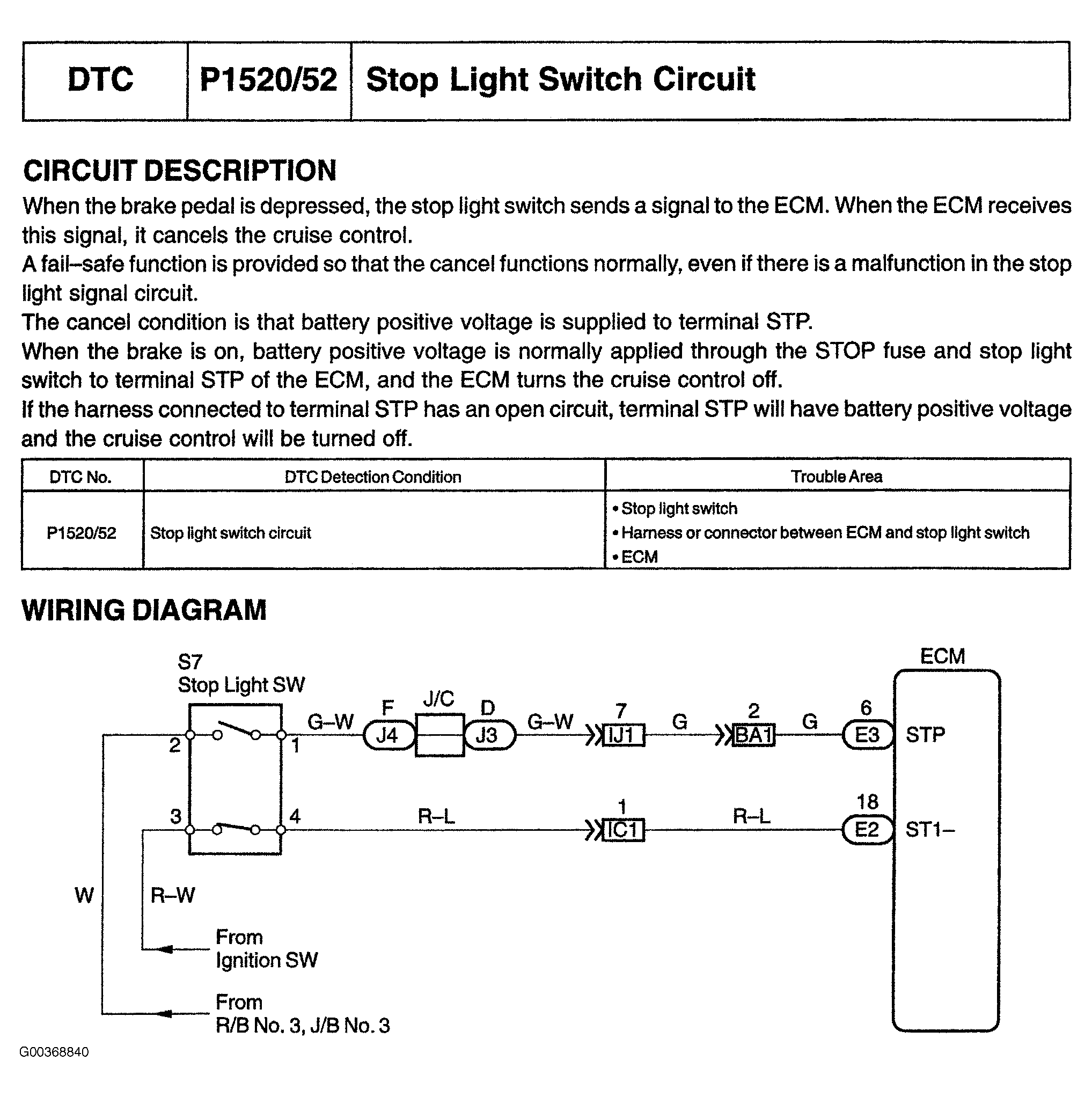

Fig 1: Diagnosing P1520/52 (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

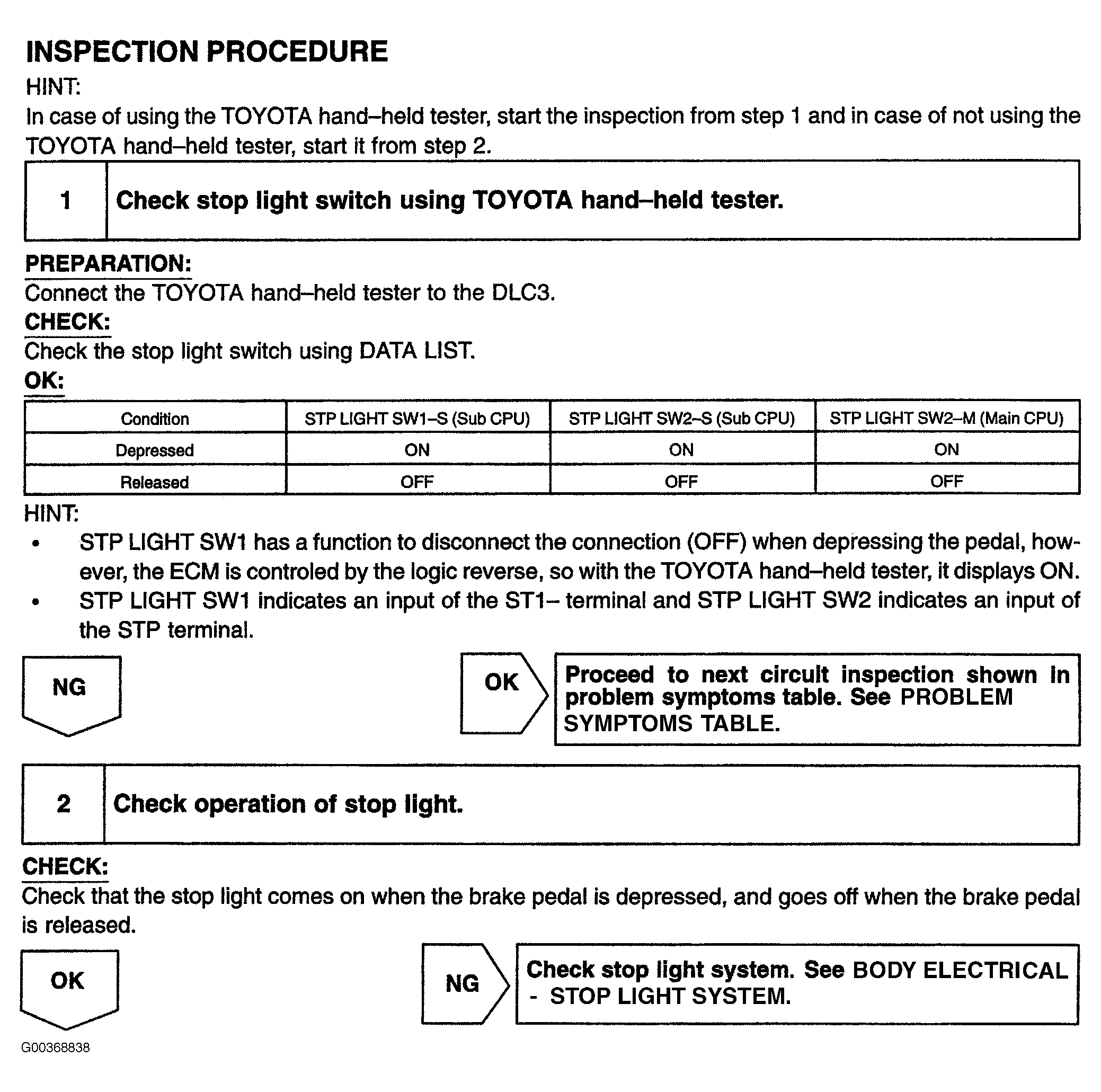

Fig 2: Diagnosing P1520/52 (2 Of 3)

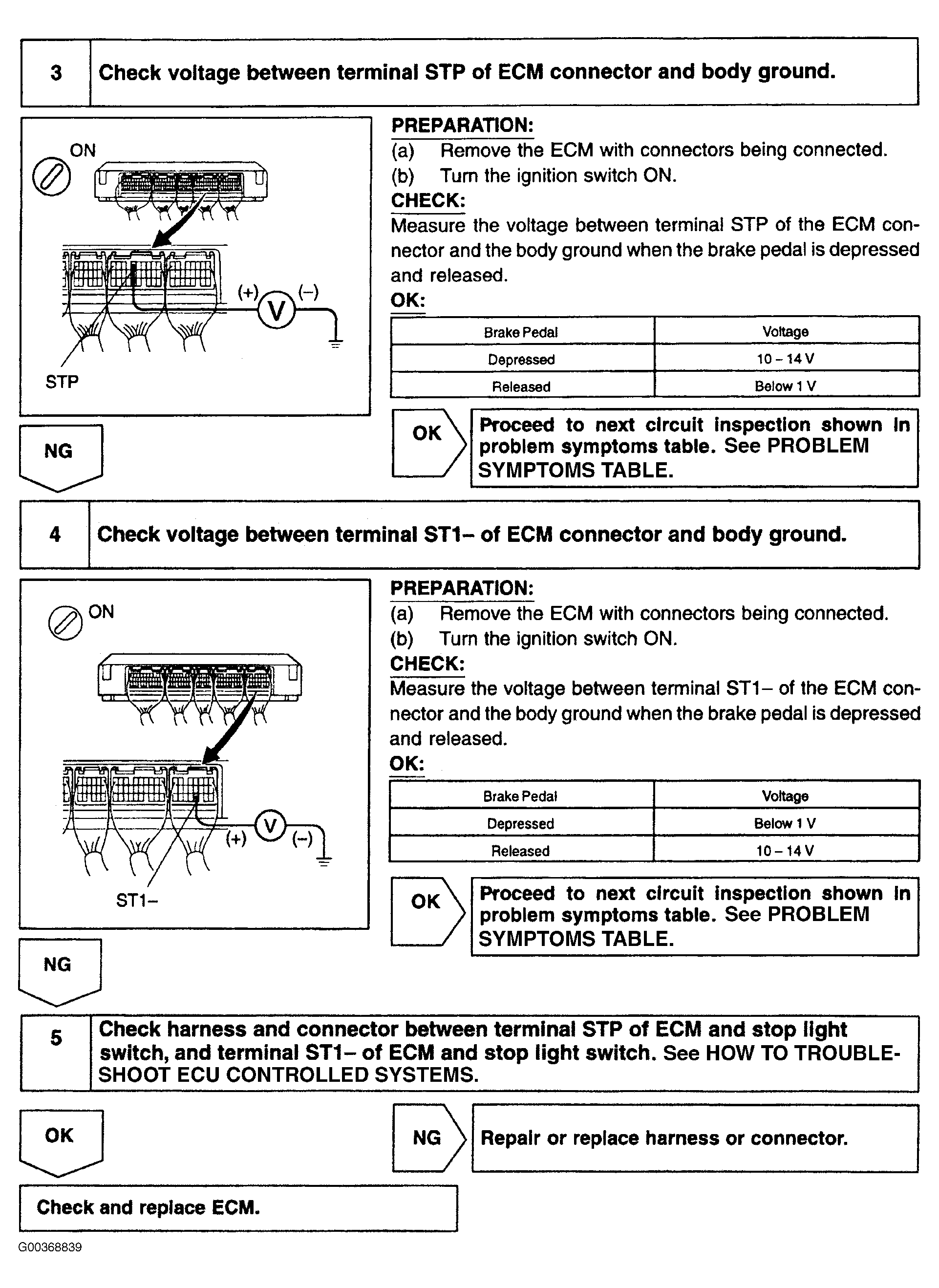

Fig 3: Diagnosing P1520/52 (3 Of 3)
