Blower Unit: Installation

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BLOWER UNIT
1. Install the blower unit with the bolt, nut and 2 screws.

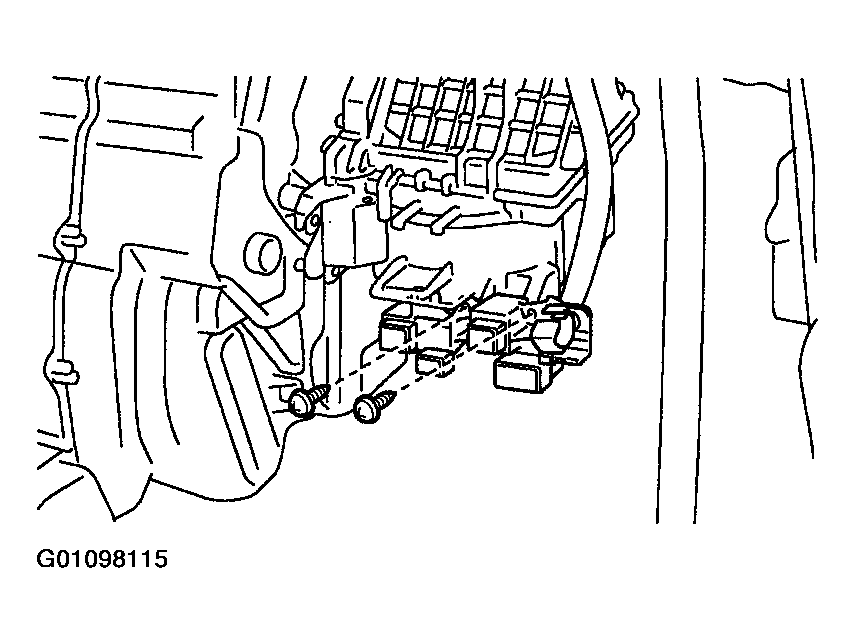

  Fig 1: Installation (1 Of 3)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors.
3. Connect the evaporator temperature sensor connector.
4. Install air duct (Foot).
INSTALL CONNECTOR BRACKET
1. Install the connector bracket with the 2 screws.

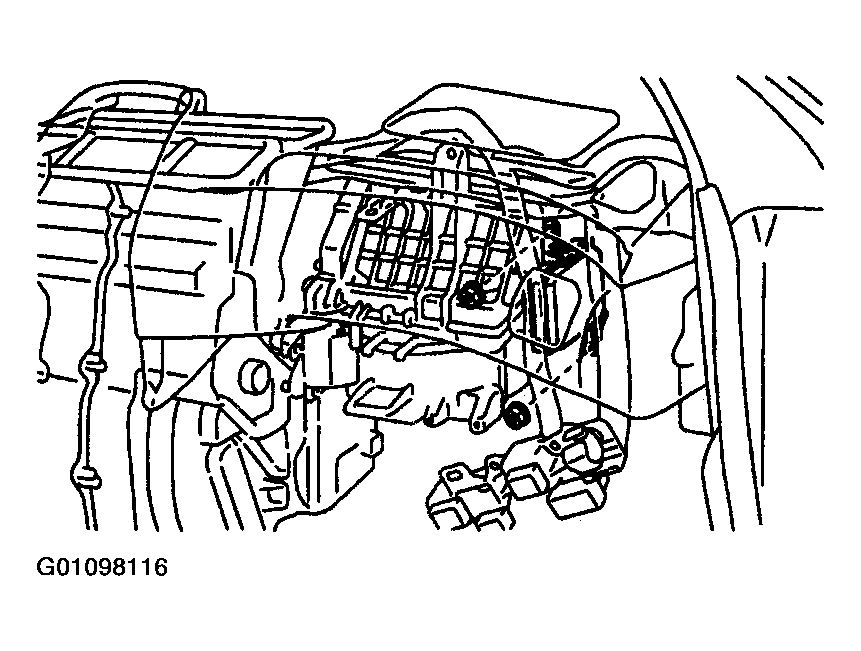

  Fig 2: Installation (2 Of 3)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors.
INSTALL ECM
1. Install the ECM with the 2 nuts.

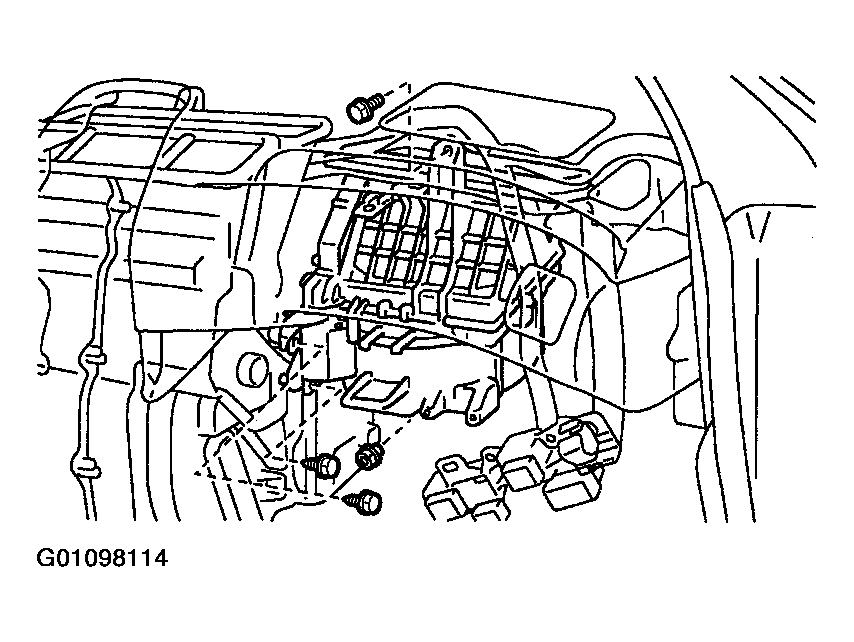

  Fig 3: Installation (3 Of 3)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors.
INSTALL CENTER FINISH CLUSTER PANEL
INSTALL NO. 2 INSTRUMENT LOWER PANEL
INSTALL UNDER COVER
INSTALL COWL SIDE TRIM RH
INSTALL FRONT DOOR SCUFF PLATE RH
