Step b - In Case Of Using Hand-Held Tester, Check The Sensor Signal.

1. Hook up the hand-held tester to the DLC3.

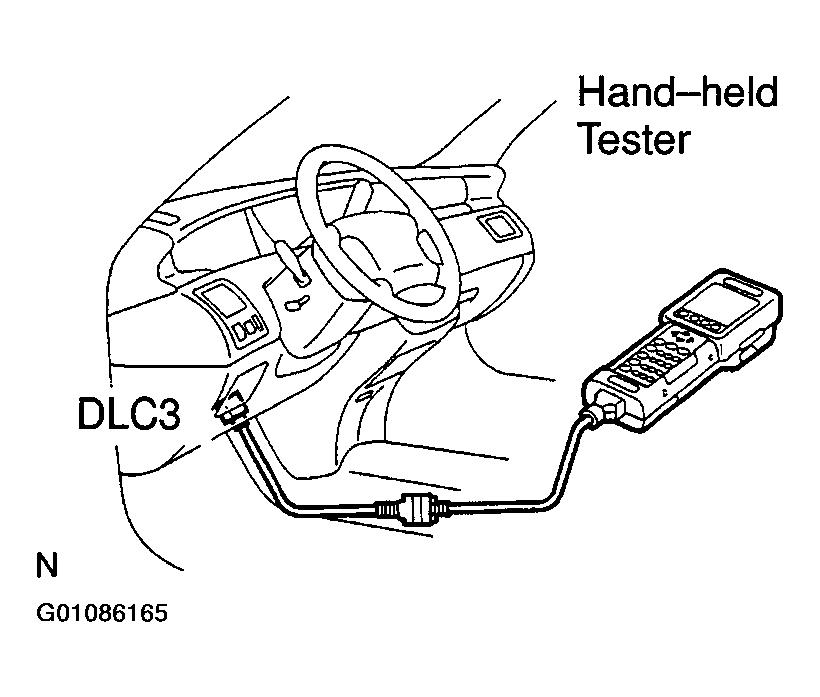

   Fig 1: Connecting Hand Held Tester To DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Do steps  3- 6 of step a.
NOTE: Please refer to the hand-held tester operator's manual for further details.
3. Read the DTC by following the prompts on the tester screen.

DTC of speed sensor check function:

Fig 2: Identifying Speed Sensor Check Function DTC's

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
