Step - b In Case Of Using Hand-Held Tester, Check The Sensor Signal.

  1. Hook up the hand-held tester to the DLC3.

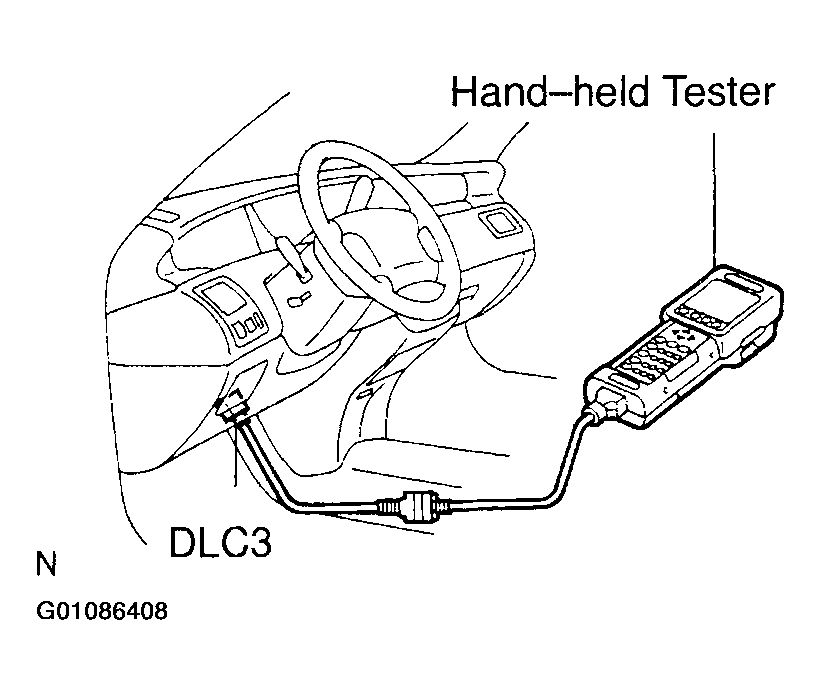

    Fig 1: Connecting Hand-Held Tester To DLC3
    G01086408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Do step ( 3 - ( 6.
    3. NOTE: Please refer to the hand-held tester operator's manual for further details.

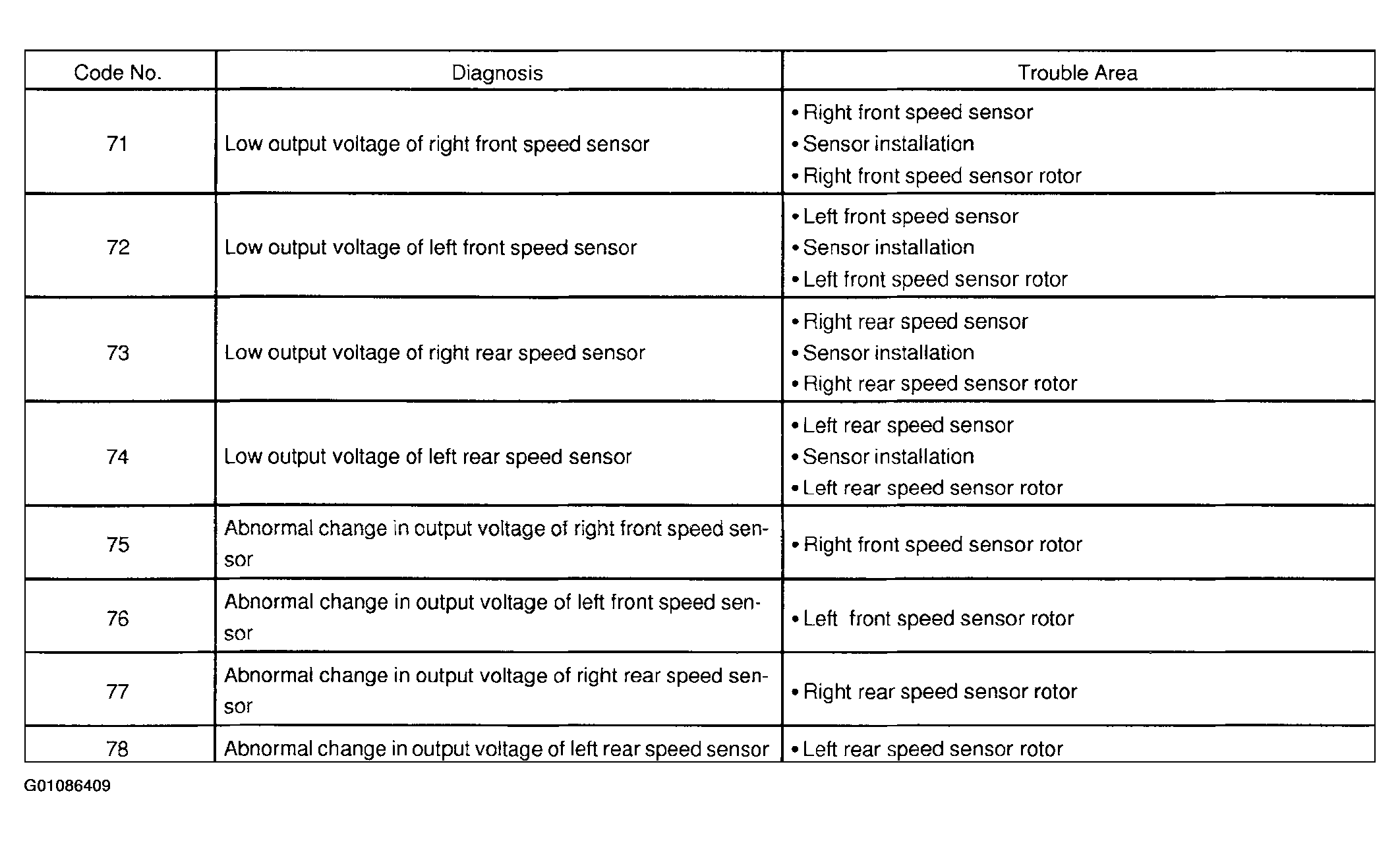

    Fig 2: Identifying DTC's Of Speed Sensor Check Function
    G01086409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Read the DTC by following the prompts on the tester screen.
