Windshield Glass: Components

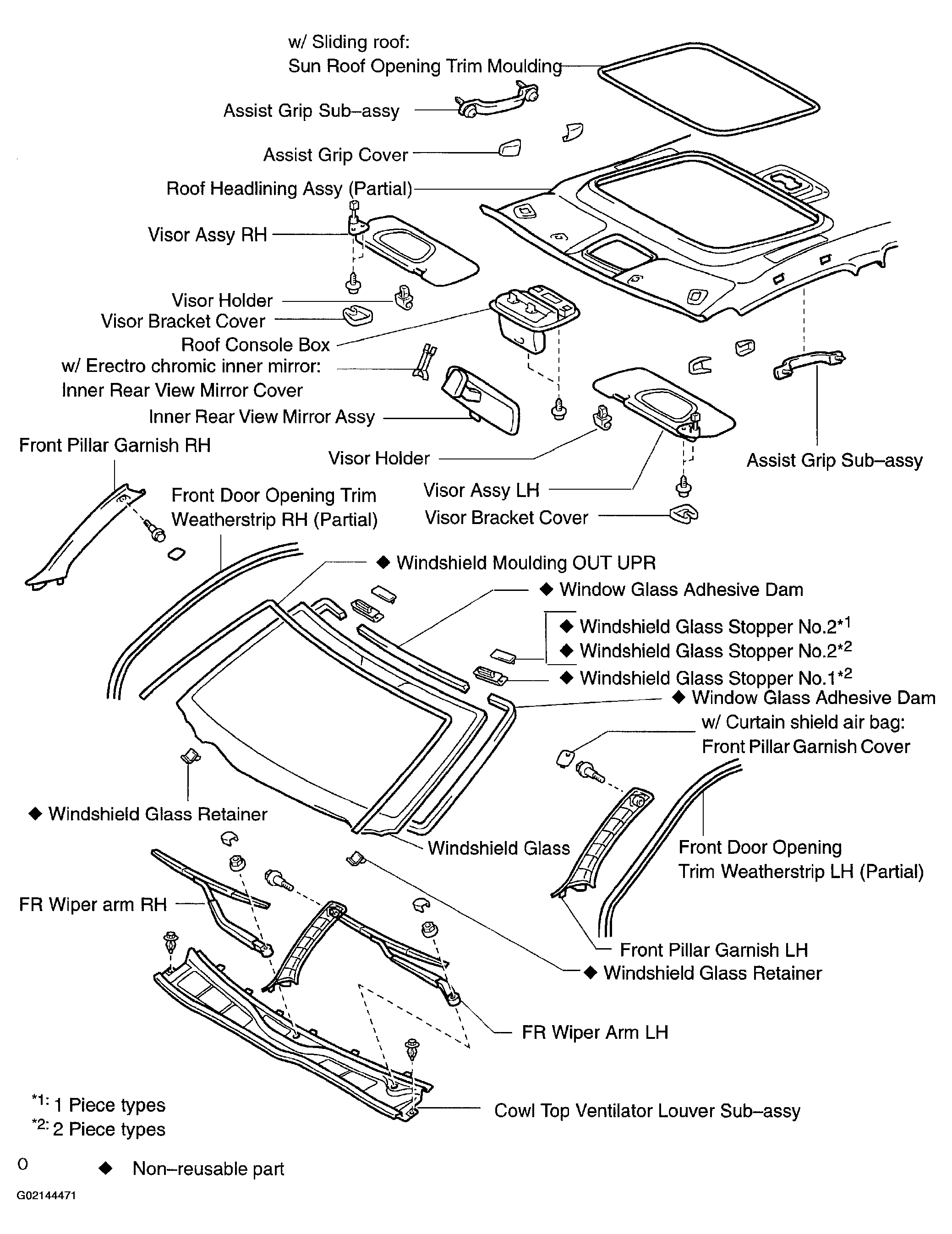

Fig 1: Identifying Windshield Glass Components
G02144471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
