Front Bumper: Components

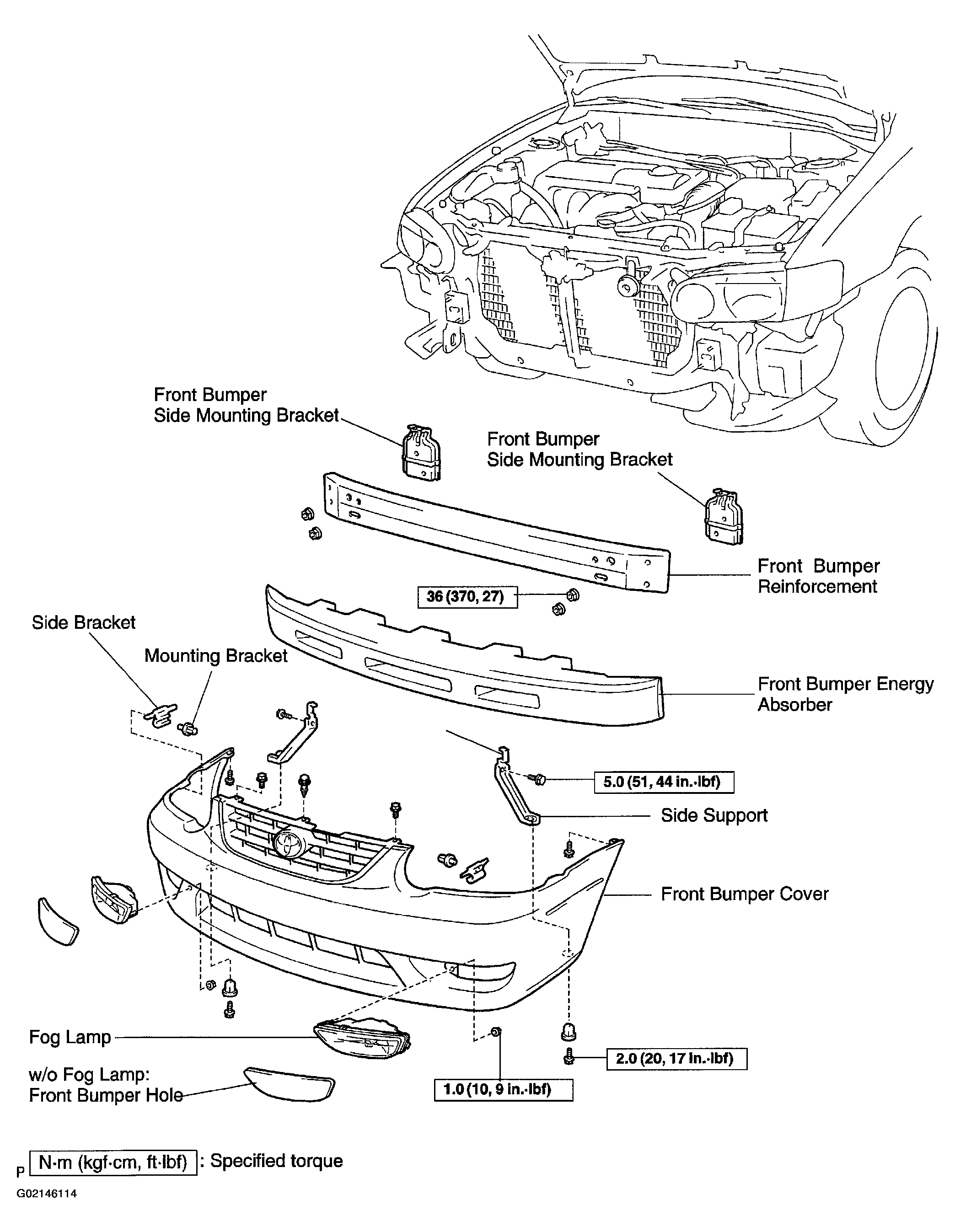

Fig 1: Locating Front Bumper Components
G02146114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
