Front Seat: Components

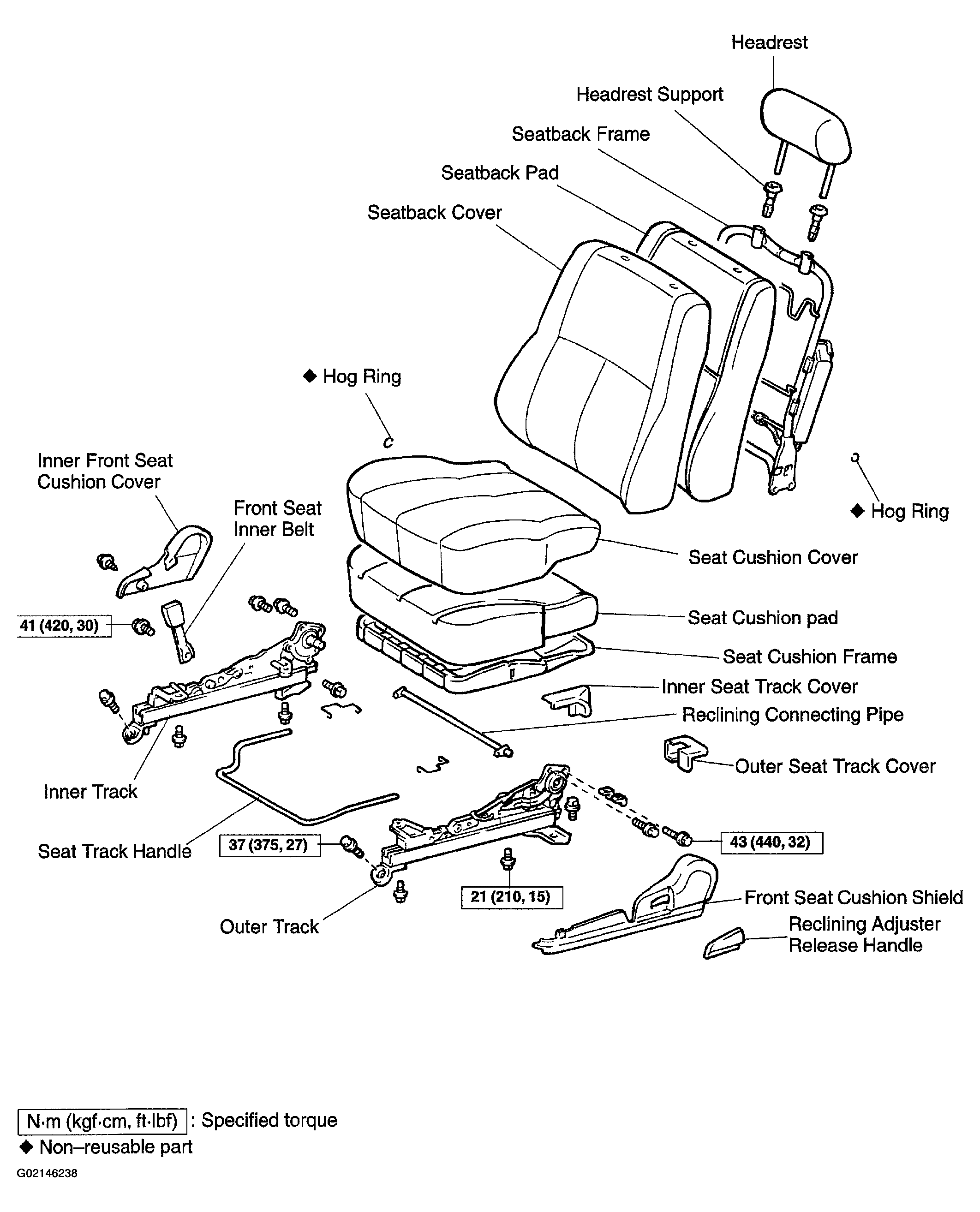

Fig 1: Locating Front Seat Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
