Roof Headlining: Components

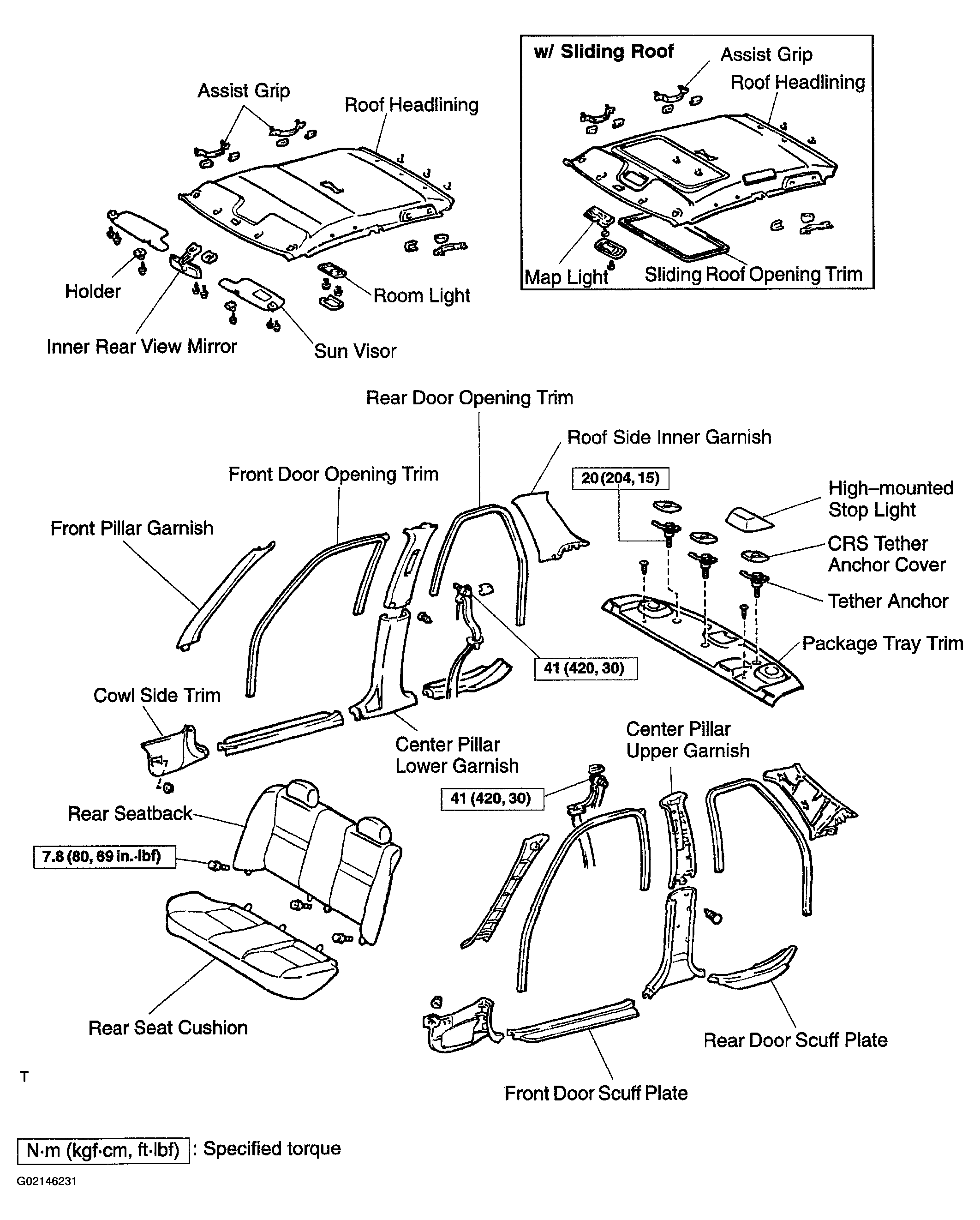

Fig 1: Identifying Roof Headlining Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
