Exterior/Interior Trim: Windshield: Components

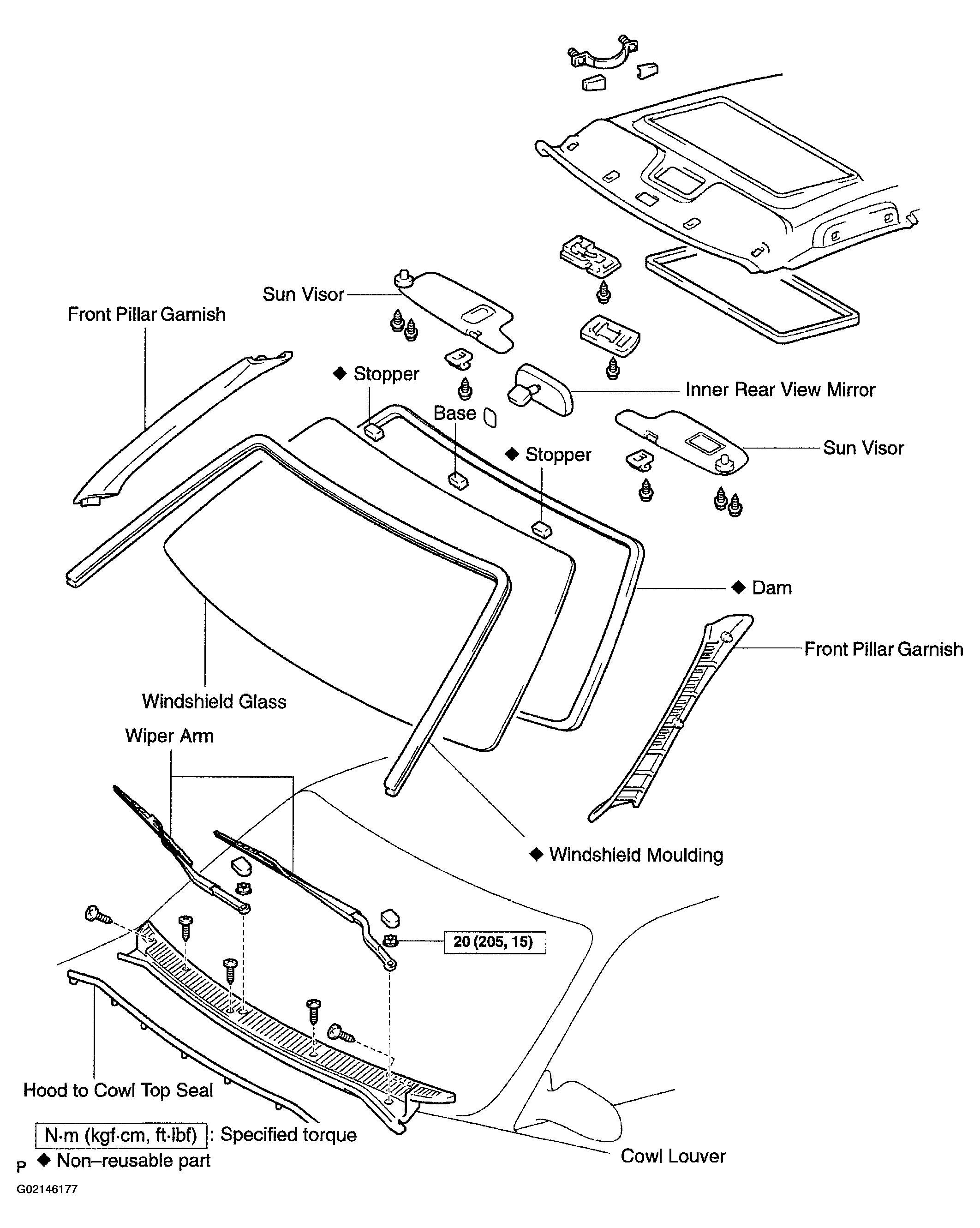

Fig 1: Identifying Windshield Components
G02146177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
