Power Steering Gear: Components

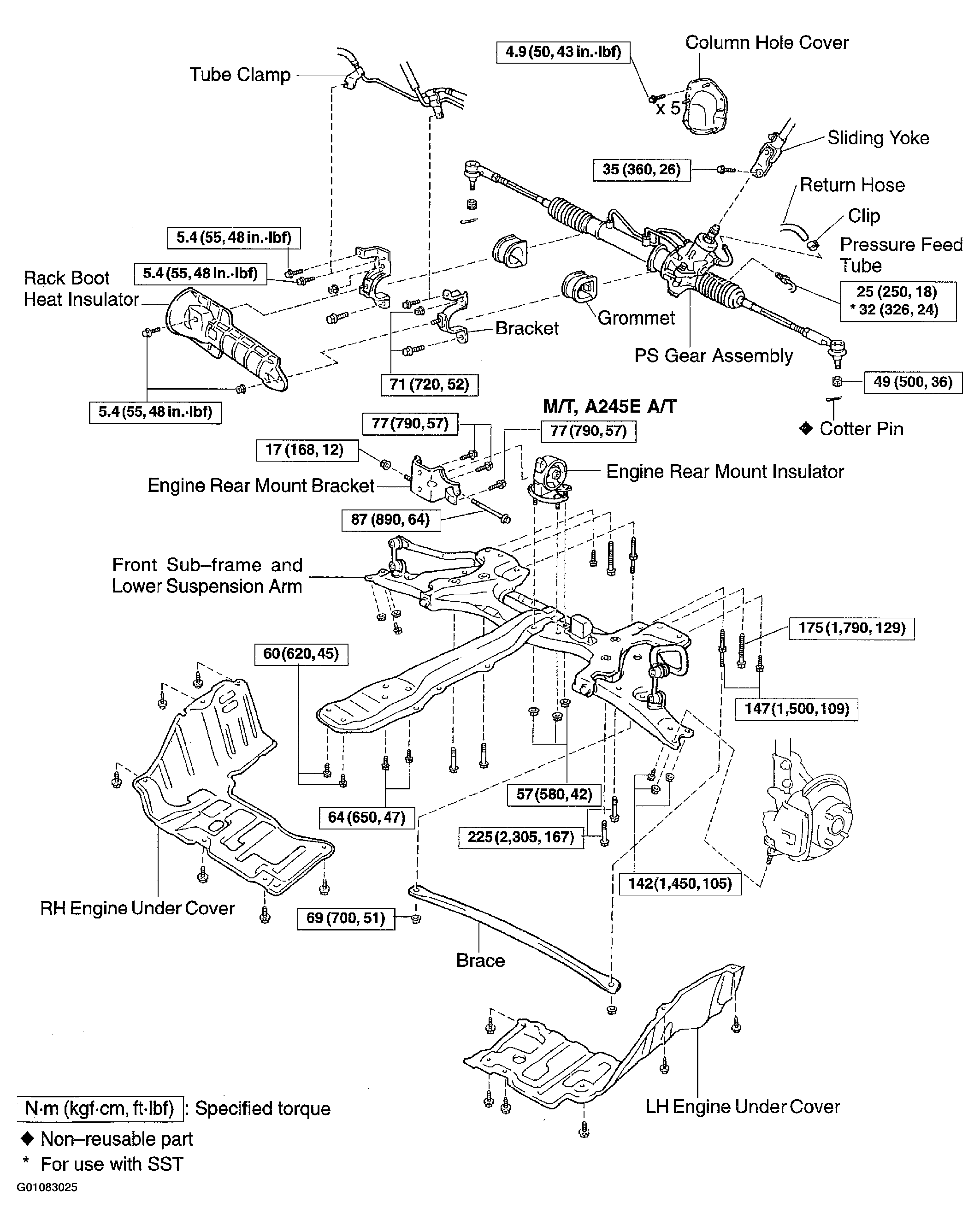

Fig 1: Indentifying Power Steering Gear Components (1 Of 4)
G01083025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

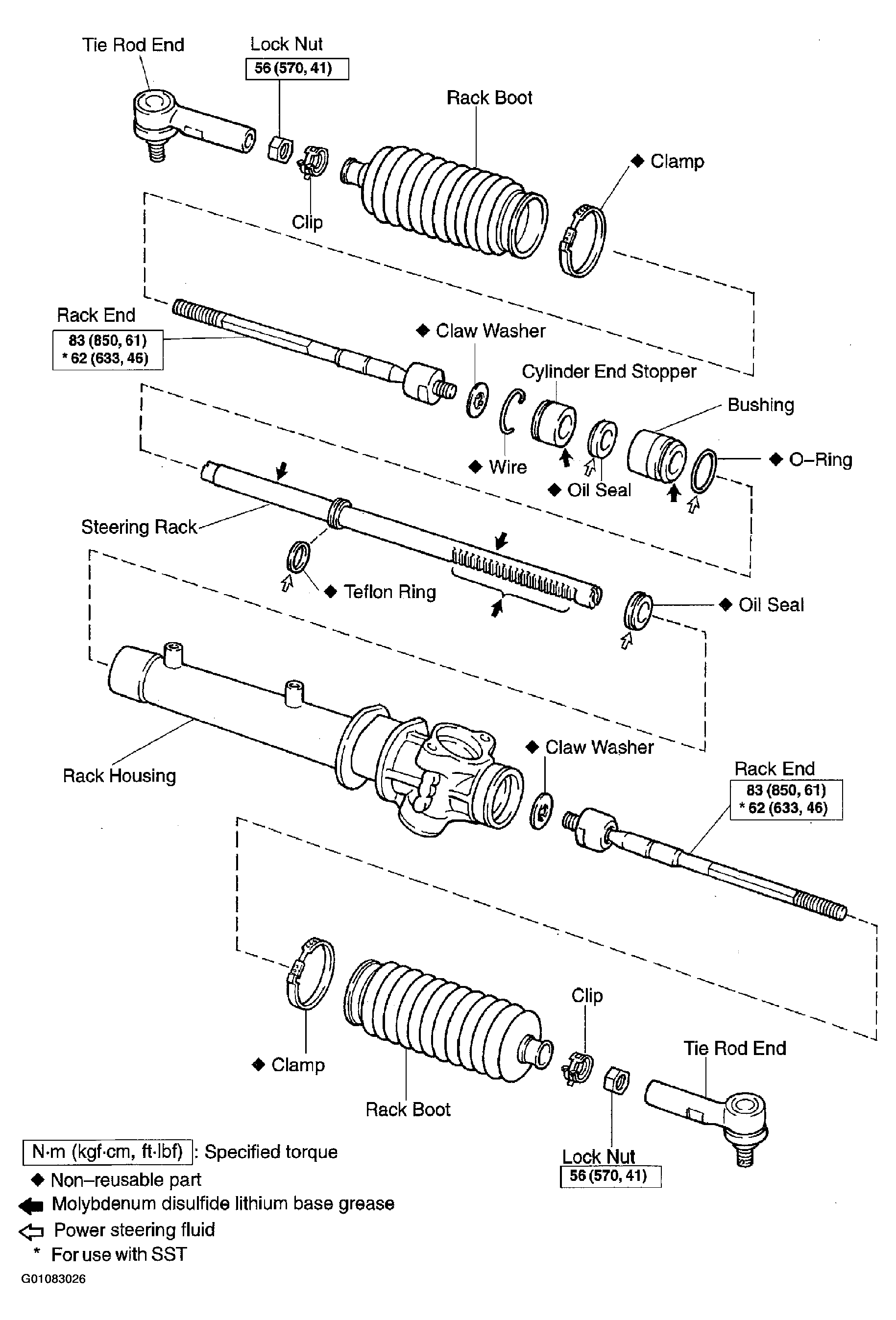

Fig 2: Indentifying Power Steering Gear Components (2 Of 4)
G01083026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

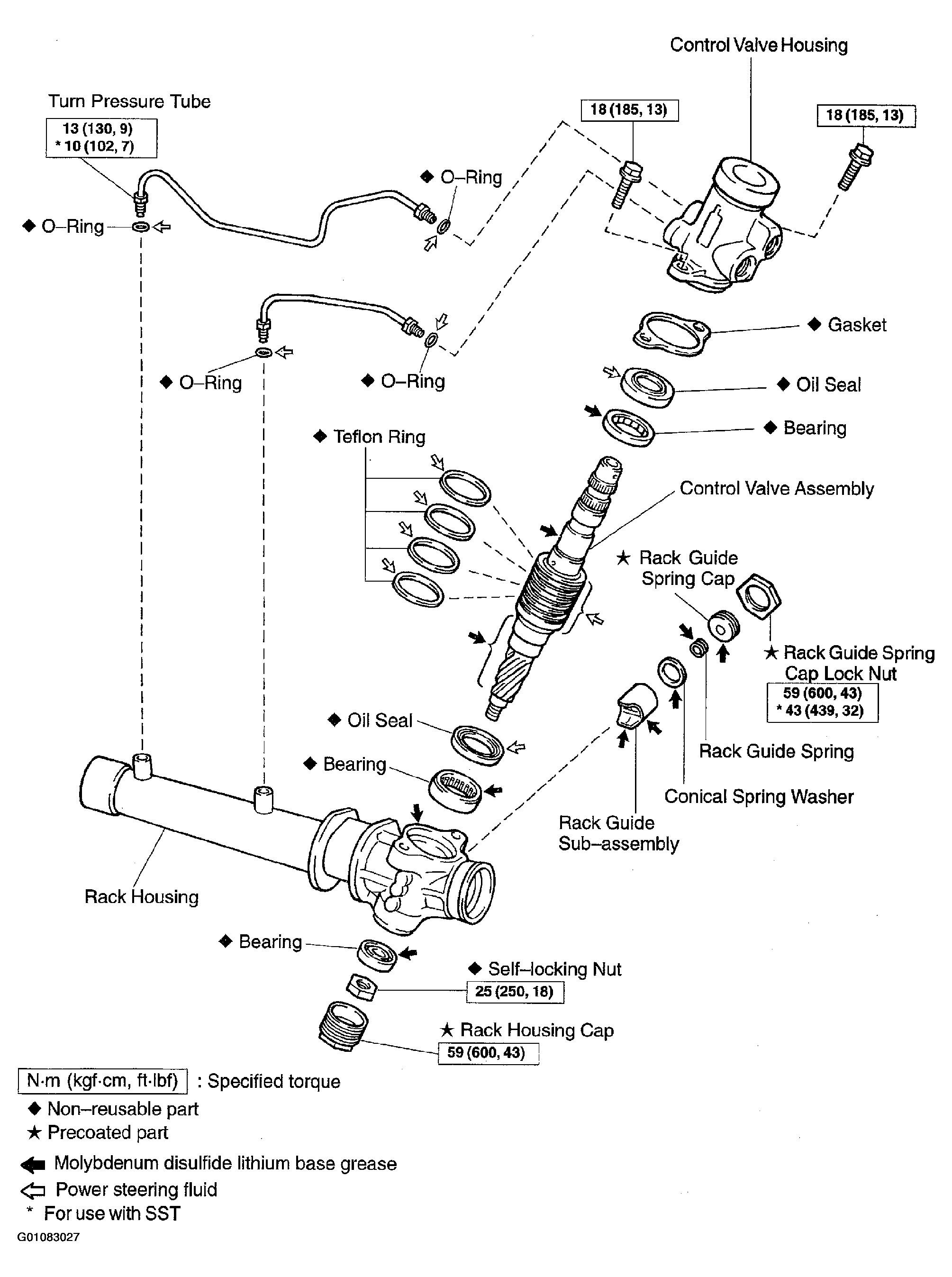

Fig 3: Indentifying Power Steering Gear Components (3 Of 4)
G01083027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

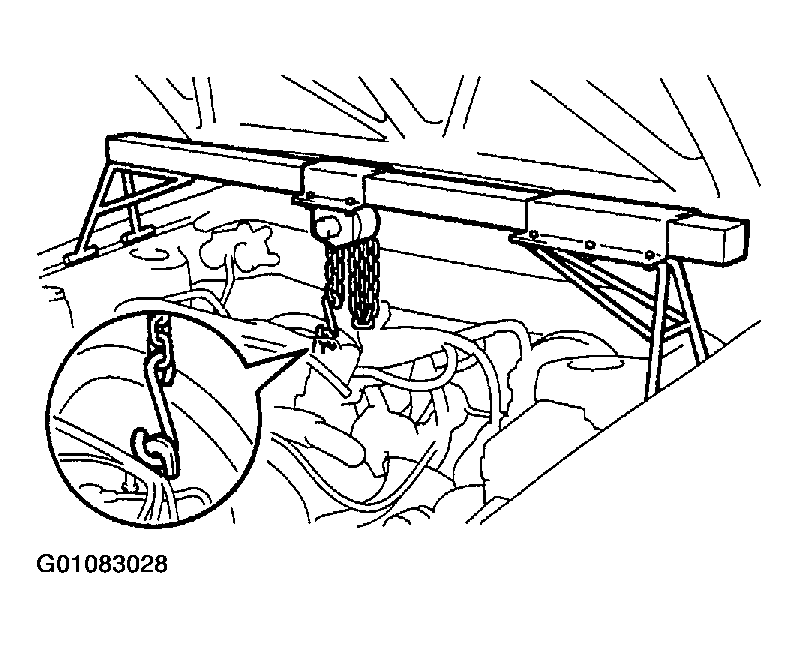

Fig 4: Indentifying Power Steering Gear Components (4 Of 4)
G01083028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
